1985 Ford Bronco 5.8 G, AutomaticFACTORY OEM SERVICE PROCEDURE
Modifying Fuel Cut-Off Relay

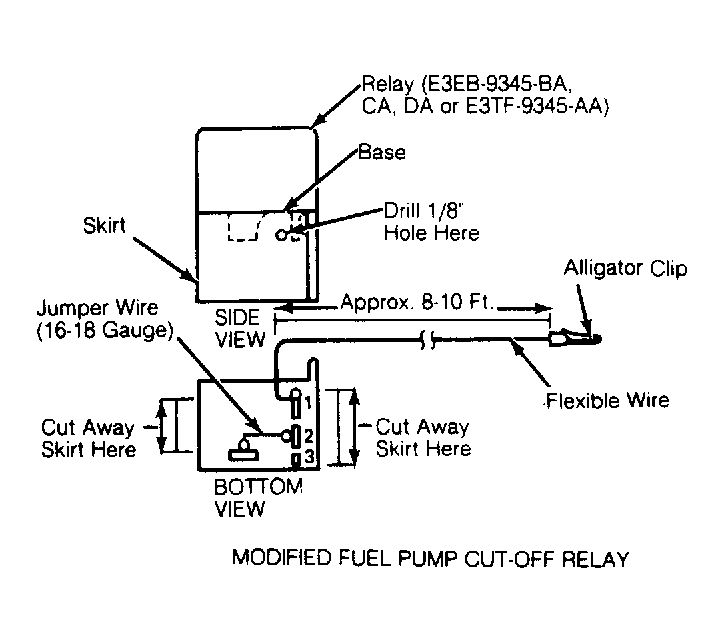

- Using relay (E3EB-9345-BA, CA, DA or E3TF-9345-AA), drill a 1/8" hole in-line with pins, and as close to relay base as possible.NOTE: Part of relay skirt may be cut away to provide easier access to pins.
- Solder a 16-18 gauge jumper wire between pins 2 and 4. Feed one end of an 8-10 ft. flexible wire through hole drilled in relay skirt and solder to pin No. 1. See Fig 1
.NOTE: Leads should be soldered as close to relay base as possible to permit insertion of relay into socket with minimum interference.
- Solder an alligator clip to other end of 8-10 ft. flexible wire.
