1978 Ford FiestaFACTORY OEM SERVICE PROCEDURE

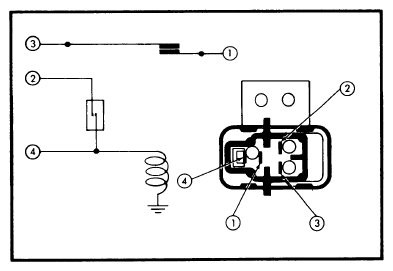

Control Switch
With switch in "NORM" position, continuity should exist between two terminals. In "ON" position, there should be continuity between all terminals. In "OFF" position, there should be no continuity.
