1977 Ford Bronco Automatic TransFACTORY OEM SERVICE PROCEDURE
Module Bias Test

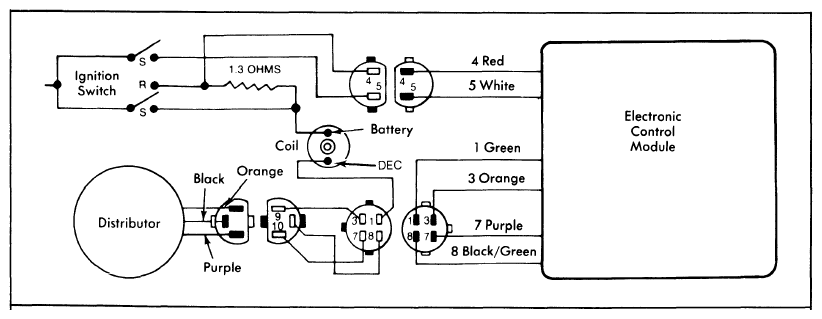

With ignition on, measure voltage between pin No. 4 (Red wire) and engine ground. If observed voltage is less than battery voltage, repair battery feed wire (Red wire) between ignition switch and control module.
