1976 Ford Courier Automatic TransFACTORY OEM SERVICE PROCEDURE
Servo Diaphragm
- Check hoses for proper routing and condition. Start engine and set idle speed. Turn engine off, detach vacuum hose from distributor and plug hose.
- Disconnect vacuum line at vacuum amplifier and vacuum hose at 3-way solenoid. Connect vacuum hose from servo diaphragm to vacuum amplifier so intake manifold vacuum is applied directly to servo diaphragm.
- Connect tachometer to engine. Start engine and idle. Note that engine speed should increase to 1000 RPM for Federal vehicles or to 1100 RPM for California vehicles.

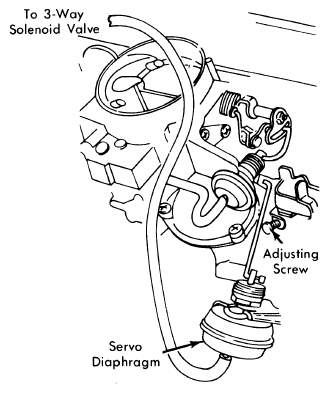

- If not, adjust engine speed by turning adjusting screw on servo diaphragm throttle lever until proper speed is obtained. See Fig 1. Reconnect all hoses to original position.
