1968 Ford AngliaFACTORY OEM SERVICE PROCEDURE

Engine Displacement

Indicated by first entry on top line of tag on intake manifold at ignition coil or temperature gauge engine unit.

NOTE: Other entries on tag indicate model year, change level, year and month of production, and engine code designation for parts change identification.

Engine Code

Displ. & Carb.

Comp. Ratio

170" 6 1 Bbl.

9.1:1

170" 6 1 Bbl.

Low

200" 6 1 Bbl.

9.2:1

200" 6 1 Bbl.

Low

B, V, E

240" 6 1 Bbl.

9.2:1

240" 6 1 Bbl.

Low

289" V8 2 Bbl.

9.3:1

289" V8 4 Bbl.

10.0:1

289" V8 4 Bbl. Hi-Perf.

10.5:1

X ⁽¹⁾

352" V8 4 Bbl.

9.3:1

H, Y

390" V8 2 Bbl.

9.5:1

390" V8 4 Bbl.

10.5:1

410" V8 4 Bbl.

10.5:1

L, W

427" V8 4 Bbl. Hi-Perf.

11.1:1

D, R

427" V8 2-4 Bbl. Hi-Perf.

11.1:1

428" V8 4 Bbl.

10.5:1

428" V8 4 Bbl.

Low

428" V8 4 Bbl. Police

11.1:1

462" V8 4 Bbl.

10.25:1

⁽¹⁾	1966 only.

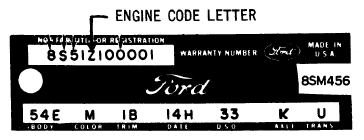

Fig 1: FORD MOTOR CO. WARRANTY PLATE (ON LEFT FRONT DOOR)

Courtesy of FORD MOTOR CO.
