1998 Eagle Talon Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Ignition Power Transistor

  1. Disconnect connector at ignition power transistor. Ignition power transistor is mounted on top of engine, near ignition coil and contains a 8-pin Black connector. See Figure .
  2. To check ignition power transistor for cylinders No. 1 and 4, connect analog type ohmmeter between terminals No. 3 and 8 on ignition power transistor. See Fig 1 . Ensure negative lead of ohmmeter is on terminal No. 8 and positive lead of ohmmeter is on terminal No. 3.
  3. A 1.5-volt battery will be used as the power supply. Connect negative terminal of a 1.5-volt battery to terminal No. 3 on ignition power transistor. See Fig 1 .
  4. Momentarily touch positive terminal of 1.5-volt battery to terminal No. 7 on ignition power transistor. Continuity should exist between terminals No. 3 and 8 on ignition power transistor when positive terminal of 1.5-volt battery is connected to terminal No. 7.
  5. Disconnect positive terminal of 1.5-volt battery from terminal No. 7 on ignition power transistor. No continuity should now exist between terminals No. 3 and 8 on ignition power transistor. Replace ignition power transistor if continuity is not as specified.
  6. To check ignition power transistor for cylinders No. 2 and 3, connect analog type ohmmeter between terminals No. 1 and 3 on ignition power transistor. See Fig 2 . Ensure negative lead of ohmmeter is on terminal No. 1 and positive lead of ohmmeter is on terminal No. 3.
  7. Connect negative terminal of a 1.5-volt battery to terminal No. 3 on ignition power transistor. See Fig 2 .
  8. Momentarily touch positive terminal of 1.5-volt battery to terminal No. 2 on ignition power transistor. Continuity should exist between terminals No. 1 and 3 on ignition power transistor when positive terminal of 1.5-volt battery is connected to terminal No. 2.
  9. Disconnect positive terminal of 1.5-volt battery from terminal No. 2 on ignition power transistor. No continuity should now exist between terminals No. 1 and 3 on ignition power transistor. Replace ignition power transistor if continuity is not as specified.

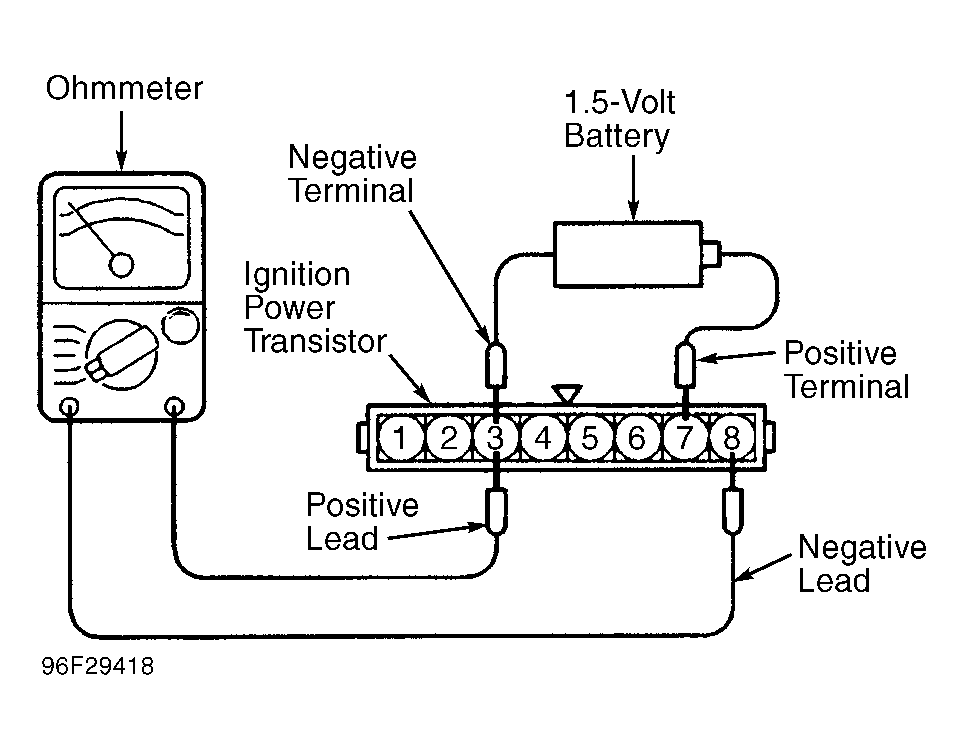

Fig 1: Checking Ignition Power Transistor For Cylinders No. 1 & 4
G96F29418Courtesy of CHRYSLER CORP.
