1998 Eagle Talon Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Using Scan Tool

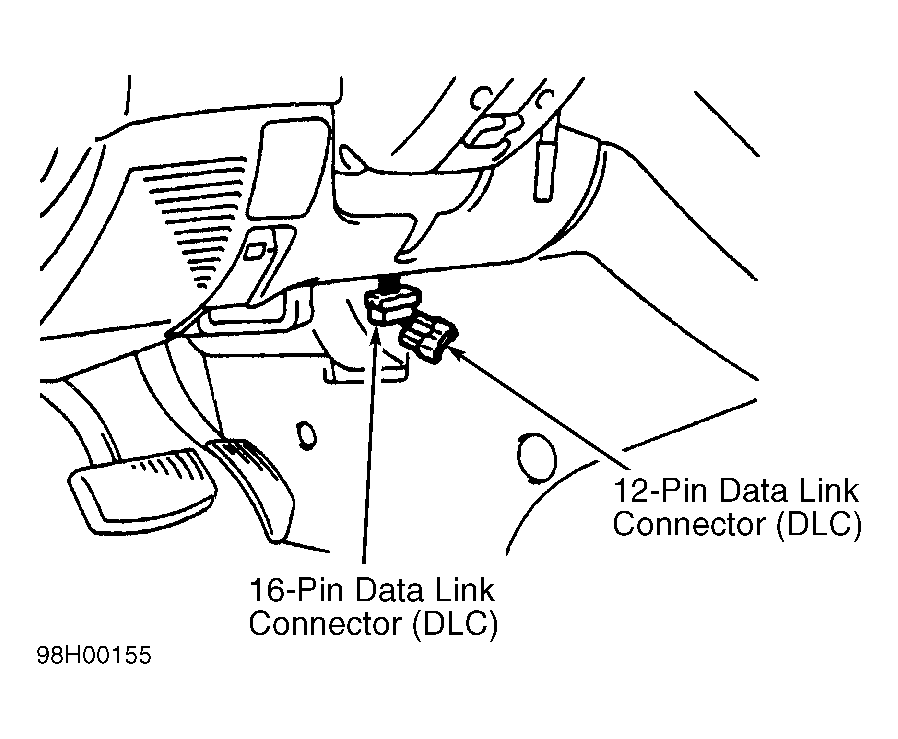

- Ensure battery is fully charged. Turn ignition off. Connect scan tool to Data Link Connector (DLC). See DATA LINK CONNECTOR (DLC) LOCATION table for connector location and number of connections required. Some models require more than one connection to retrieve diagnostic information. See Fig 1-Fig 3
.DATA LINK CONNECTOR (DLC) LOCATION
Application DLC Location Avenger, Sebring Coupe & Talon(1) Base Of Steering Column Breeze, Cirrus Sebring Conv. & Stratus(2) Above Driver's Kick Panel Neon2 Lower Left Side Of Dashboard (1) Requires 2 connections, one at 12-pin DLC and another at 16-pin DLC. (2) Requires one connection at 16-pin DLC.
