1998 Eagle Talon Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Connector Identification
NOTE:
Circuit location may vary on some connectors.
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | See | |
|---|---|---|

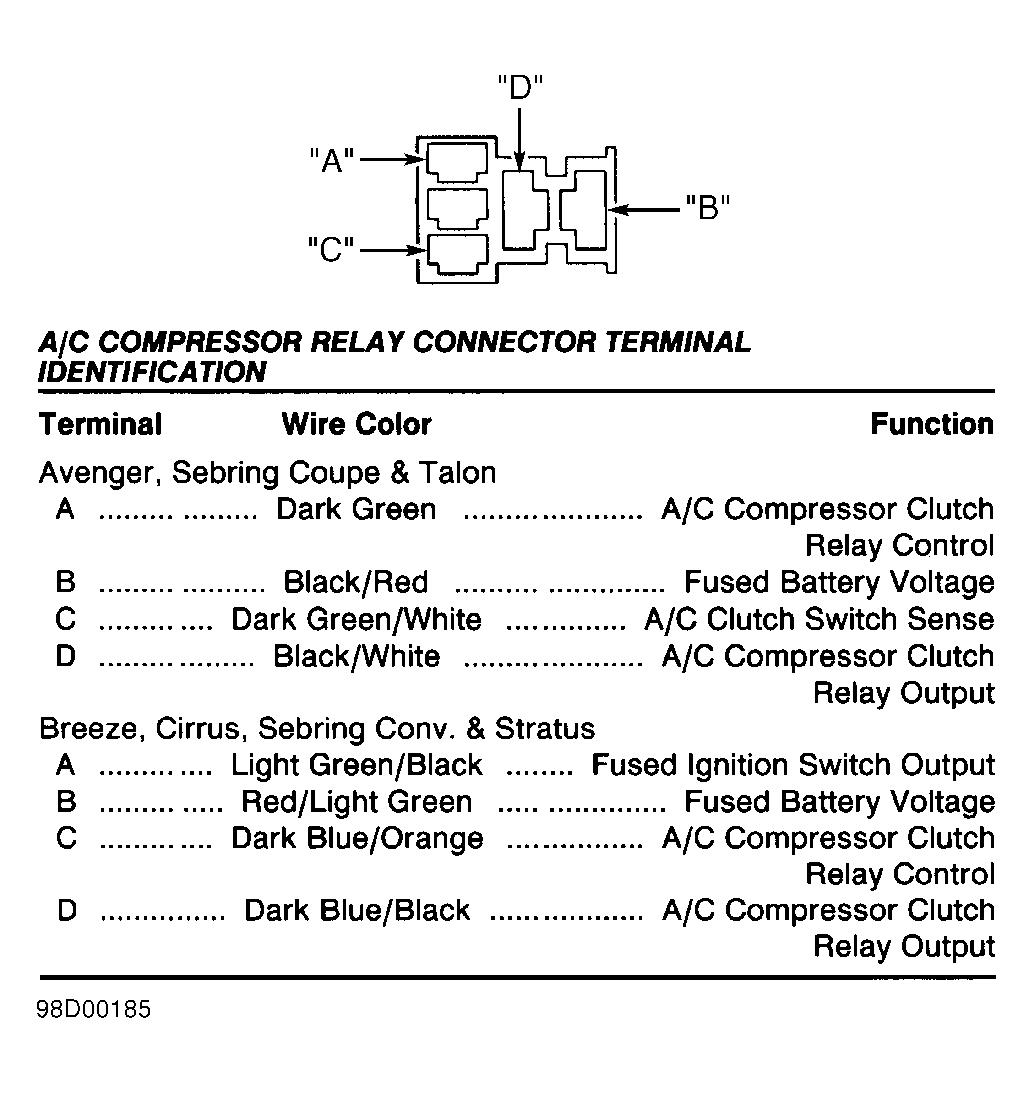

| A/C Compressor Relay Connector | ||
| Avenger, Breeze, Cirrus, Sebring Conv., Sebring Coupe, Stratus & Talon | Fig 1 | |
| A/C Compressor Relay Connector | ||
| Neon | Fig 2 | |
| Automatic Shutdown (ASD) Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 3 | |
| Breeze, Cirrus, Sebring Conv. & Stratus | Fig 4 | |
| Neon | Fig 5 | |
| Battery Temperature Sensor Connector | ||
| Breeze, Cirrus, Neon, Sebring Conv. & Stratus | Fig 6 |
|
| Brakelight Switch Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 7 | |
| Breeze, Cirrus, Neon, Sebring Conv. & Stratus | Fig 8 | |
| Camshaft Position Sensor Connector | ||
| Avenger (2.0L), Breeze (2.0L & 2.4L), Cirrus, Neon, Sebring Conv. (2.4L), Sebring Coupe (2.0L), Stratus (2.0L & 2.4L) & Talon | Fig 9 | |
| Clockspring 2-Pin Speed Control Connector | ||
| Neon & Sebring Conv. | Fig 10 | |
| Crankshaft Position Sensor Connector | ||
| Avenger, Sebring Coupe & Talon (2.0L) | Fig 11 | |
| Crankshaft Position Sensor Connector | ||
| Breeze, Cirrus, Sebring Conv. & Stratus (2.5L) | Fig 12 | |
| Crankshaft Position Sensor Connector | ||
| Breeze, Cirrus, Neon, Sebring Conv. & Stratus (2.0L & 2.4L) | Fig 13 | |
| Distributor 6-Pin Connector | ||
| Avenger & Sebring Coupe (2.5L) | Fig 14 | |
| Breeze, Cirrus, Sebring Conv. & Stratus (2.5L) | Fig 15 | |
| Engine Coolant Temperature (ECT) Sensor Connector | ||
| Avenger, Breeze, Cirrus, Sebring Coupe, Sebring Conv., Stratus & Talon | Fig 16 | |
| Neon | Fig 17 | |
| EVAP Solenoid Connector | ||
| Neon | Fig 18 | |
| Exhaust Gas Recirculation (EGR) Solenoid Connector | ||
| Avenger, Neon, Sebring Coupe & Talon | Fig 19 | |
| Breeze, Cirrus, Sebring Conv. & Stratus | Fig 20 | |
| Fuel Pump Motor Connector | ||
| Talon | Fig 21 | |
| Fuel Pump Motor Connector | ||
| Avenger & Sebring Coupe | Fig 22 | |
| Breeze, Cirrus, Sebring Conv. & Stratus | Fig 23 | |
| Neon | Fig 24 | |
| Fuel Pump Relay Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 25 | |
| Breeze, Cirrus, Sebring Conv. & Stratus | Fig 26 | |
| Neon | Fig 27 | |
| Generator Field Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 28 | |
| Breeze, Cirrus, Sebring Conv. & Stratus (2.0L & 2.4L) | Fig 29 | |
| Neon | Fig 30 | |
| High Speed Condenser Fan Relay Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 31 | |
| High Speed Radiator Fan Relay Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 32 | |
| Breeze, Cirrus, Sebring Conv. & Stratus | Fig 33 | |
| Idle Air Control (IAC) Motor Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 34 | |
| Breeze, Sebring Conv. & Stratus (2.4L & 2.5L) | Fig 35 | |
| Breeze & Stratus (2.0L) & Neon | Fig 36 | |
| Ignition Coil Connector | ||
| Avenger, Sebring Coupe & Talon (2.0L) | Fig 37 | |
| Breeze, Cirrus, Neon, Sebring Conv. & Stratus (2.0L & 2.4L) | Fig 38 | |
| Injector Connectors | ||
| Avenger, Sebring Coupe & Talon | Fig 39 | |
| Breeze, Cirrus, Neon, Sebring Conv. & Stratus | Fig 40 | |
| Injector 4-Pin Connector (PCM Side) | ||
| Breeze, Cirrus, Sebring Conv. & Stratus | Fig 41 | |
| Injector 10-Pin Connector (PCM Side) | ||
| Avenger, Sebring Coupe & Talon | Fig 42 | |
| Intake Air Temperature Sensor Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 43 | |
| Intake Air Temperature Sensor Connector | ||
| Breeze, Cirrus, Sebring Conv. & Stratus | Fig 44 | |
| Intake Air Temperature/Manifold Absolute Pressure (IAT/MAP) Sensor Connector | ||
| Breeze, Cirrus, Neon & Stratus | Fig 45 | |
| Leak Detection Pump Connector | ||
| Avenger, Breeze, Cirrus, Neon, Sebring Conv., Sebring Coupe, Stratus & Talon | Fig 46 | |
| Low Speed Condenser Fan Relay Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 47 | |
| Low Speed Radiator Fan Relay Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 48 | |
| Low Speed Radiator Fan Relay Connector | ||
| Breeze, Cirrus, Sebring Conv. & Stratus | Fig 49 | |
| Manifold Absolute Pressure (MAP) Sensor Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 50 | |
| Breeze, Cirrus, Sebring Conv. & Stratus | Fig 51 | |
| O2S 1/1 Connector (Harness Side) | ||
| Avenger, Breeze, Cirrus, Neon, Sebring Coupe, Sebring Conv., Stratus & Talon | Fig 52 | |
| O2S 1/2 Connector (Harness Side) | ||
| Avenger, Sebring Coupe & Talon (2.0L) | Fig 53 | |
| Breeze, Cirrus, Neon, Sebring Conv. & Stratus | Fig 54 | |
| Avenger & Sebring Coupe (2.5L) | Fig 55 | |
| O2S 2/1 Connector (Harness Side) | ||
| Avenger & Sebring Coupe (2.5L) | Fig 56 | |
| O2S 2/2 Connector (Harness Side) | ||
| Avenger & Sebring Coupe (2.5L) | Fig 57 | |
| Park/Neutral Position Switch Connector | ||
| Neon | Fig 58 | |
| Powertrain Control Module (PCM) Connector | Fig 59 | |
| Proportional Purge Solenoid Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 60 | |
| Breeze, Sebring Conv. & Stratus 2.0L & 2.4L | Fig 61 | |
| Cirrus & Stratus (2.5L) | Fig 62 | |
| Radiator Fan Relay | ||
| Neon | Fig 63 | |
| Speed Control On/Off Switch Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 64 | |
| Speed Control Servo Connector | ||
| Avenger, Breeze, Cirrus, Neon, Sebring Conv., Sebring Coupe, Stratus & Talon | Fig 65 | |
| Speed Control 2-Pin Switch Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 66 | |
| Breeze, Cirrus & Stratus | Fig 67 | |
| Starter Relay Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 68 | |
| Breeze, Cirrus, Neon, Sebring Conv. & Stratus | Fig 69 | |
| Throttle Position (TP) Sensor Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 70 | |
| Breeze, Neon & Stratus (2.0L) | Fig 71 | |
| Breeze (2.4L), Cirrus (2.5L), Sebring Conv. & Stratus (2.4L & 2.5L) | Fig 72 | |
| Torque Converter Clutch (TCC) Connector | ||
| Neon | Fig 73 | |
| Transmission Range Sensor Connector | ||
| Avenger, Breeze, Cirrus, Sebring Conv., Sebring Coupe & Talon | Fig 74 | |
| Vehicle Speed Sensor (VSS) Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 75 | |
| Breeze, Cirrus, Neon, Sebring Conv. & Stratus | Fig 76 | |
| 12-Pin Data Link Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 77 | |
| 16-Pin Data Link Connector | ||
| Avenger, Sebring Coupe & Talon | Fig 78 | |
| Breeze, Cirrus, Sebring Conv. & Stratus | Fig 79 | |
| Neon | Fig 80 | |
