1997 Eagle Talon Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Scan Tool Operation
- The DRB-III scan tool or a generic scan tool may be used to monitor a specified component operating range. Component operating range is then compared to a normal operating range to determine if component is operating properly.
- When using the DRB-III scan tool, scan tool will perform all service data inspection procedures. A generic scan tool may perform only specified service data inspection procedures. See SCAN TOOL MODE OPERATION table.

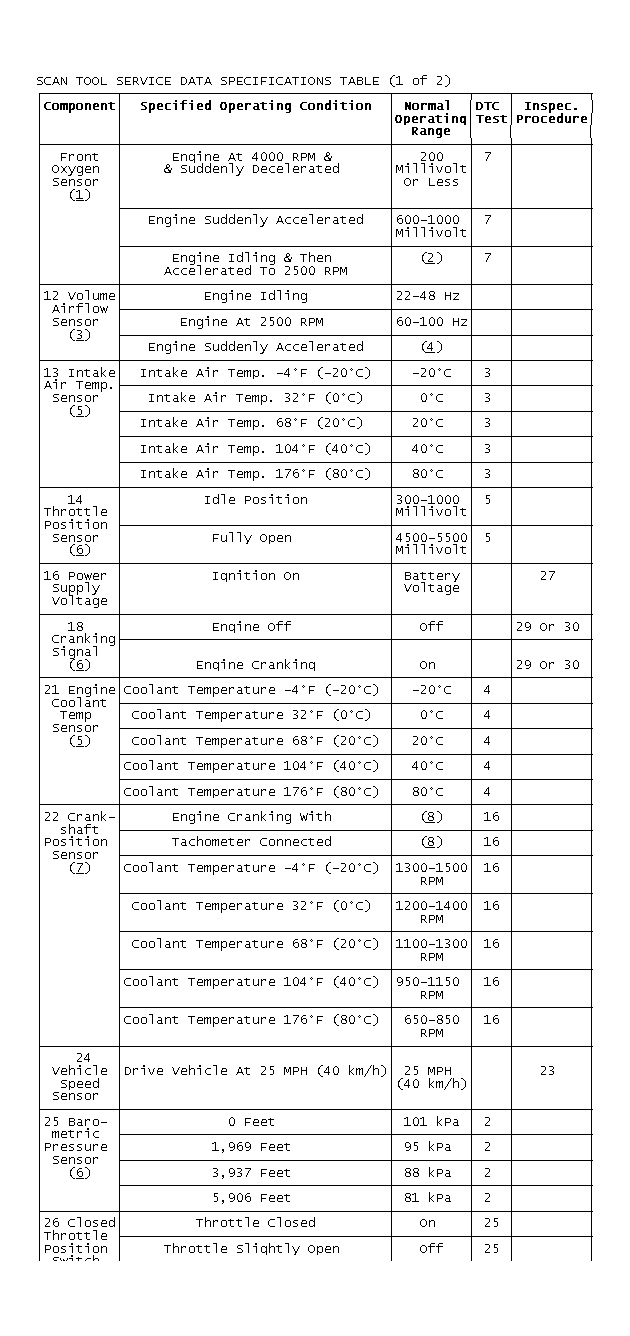

- Use scan tool to monitor specified component operation under specified operating condition. See SCAN TOOL SERVICE DATA SPECIFICATIONS table.
- Specified component operating range should be within specified normal operating range. See SCAN TOOL SERVICE DATA SPECIFICATIONS table. If component operating range is not within normal operating range, perform specified Diagnostic Trouble Code (DTC) test or specified trouble symptom inspection procedure (if available). See SCAN TOOL SERVICE DATA SPECIFICATIONS table.
- The DTC TESTS are listed under SELF-DIAGNOSTIC TESTS, before TROUBLE SYMPTOMS. Trouble symptom inspection procedures are listed after the DIAGNOSTIC TROUBLE CODE (DTC) TESTS.
SCAN TOOL MODE OPERATION
| Component Inspection | Generic Scan Tool Mode | DRB-III Scan Tool Mode |
|---|---|---|
| A/C Clutch Relay | No | Yes |
| A/C Switch | No | Yes |
| Barometric Pressure Sensor | No | Yes |
| Calculation Load | Yes | Yes |
| Closed Throttle Position Switch | No | Yes |
| Cranking Signal (Ign. Switch ST Signal) | No | Yes |
| Crankshaft Position Sensor | Yes | Yes |
| Engine Coolant Temp. Sensor | Yes | Yes |
| Front Oxygen Sensor | Yes | Yes |
| Fuel Control Condition | Yes | Yes |
| Idle Air Control Motor | No | Yes |
| Ignition Coil & Ignition Power Transistor | No | Yes |
| Fuel Injectors | No | Yes |
| Intake Air Temp. Sensor | Yes | Yes |
| Long Term Fuel Compensation | Yes | Yes |
| Manifold Differential Pressure Sensor | Yes | Yes |
| Park/Neutral Position Switch (A/T) | No | Yes |
| Power Steering Pressure Switch | No | Yes |
| Power Supply Voltage | No | Yes |
| Rear Oxygen Sensor | Yes | Yes |
| Short Term Fuel Compensation | Yes | Yes |
| Throttle Position Sensor | Yes | Yes |
| Vehicle Speed Sensor | Yes | Yes |
| Volume Airflow Sensor | Yes | Yes |
