1997 Eagle Talon Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Using Scan Tool

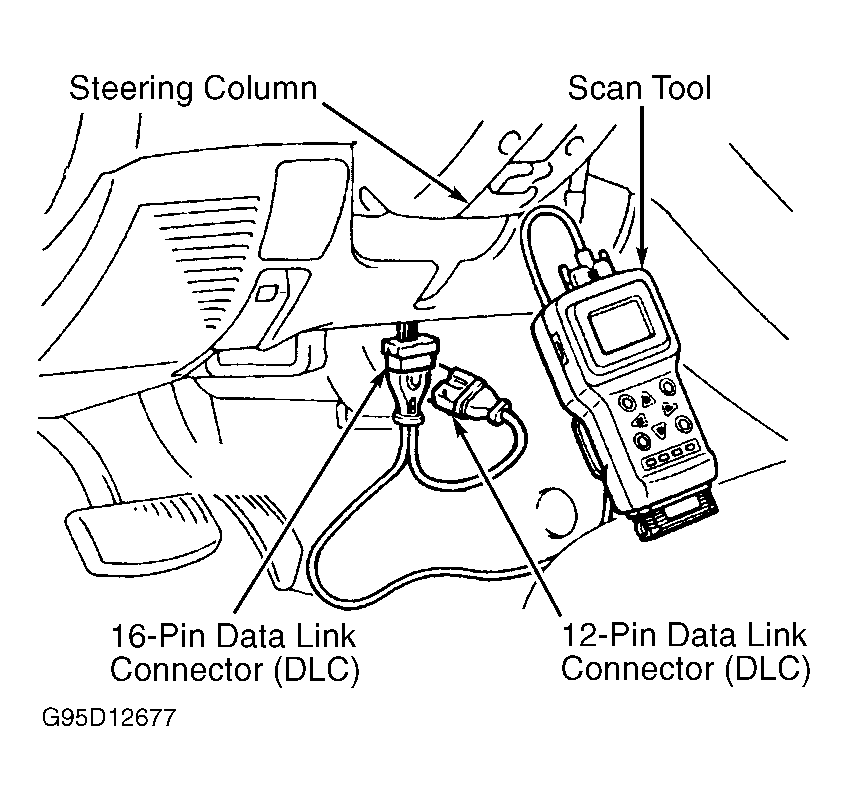

- Ensure battery is fully charged. Turn ignition off. Connect scan tool to Data Link Connector (DLC). Two connections required. One at 12-pin DLC, and another at 16-pin DLC. See DATA LINK CONNECTOR (DLC) table for connector location. See 1.DATA LINK CONNECTOR (DLC) LOCATION
Application DLC Location Talon Non-Turbo Base Of Steering Column - Turn ignition on. Using scan tool manufacturer's instructions, record all DTCs displayed on scan tool. Using all DTCs obtained, proceed to SELF-DIAGNOSTIC TESTS . Once all repairs are made, ensure DTCs are cleared from PCM. See CLEARING DIAGNOSTIC TROUBLE CODES.
