NOTE: Circuit location may vary on some connectors.

CONNECTOR IDENTIFICATION DIRECTORY

Connector	Figure
A/C Compressor Relay	Fig 1
Auto Shutdown (ASD) Relay	Fig 2
Brakelight Switch	Fig 3
Camshaft Position (CMP) Sensor	Fig 4
Crankshaft Position (CKP) Sensor	Fig 5
Engine Coolant Temperature (ECT) Sensor	Fig 6
Evaporative Solenoid	Fig 7
Exhaust Gas Recirculation (EGR) Solenoid	Fig 8
Fuel Pump	Fig 9
Fuel Pump Relay	Fig 10
Generator Field	Fig 11
High Speed Radiator Fan Relay	Fig 12
Idle Air Control (IAC) Motor	Fig 13
Ignition Coil	Fig 14
Injector	Fig 15
Injector 10-Pin Connector	Fig 16
Intake Air Temperature (IAT)	Fig 17
Knock Sensor	Fig 18
Low Speed Radiator Fan Relay	Fig 19
Manifold Absolute Pressure (MAP)	Fig 20
O2S 1/1 Connector (Harness Side)	Fig 21
O2S 1/2 Connector (Harness Side)	Fig 22
Speed Control Servo	Fig 23
Speed Control 2-Pin Switch	Fig 24
Starter Relay	Fig 25
Throttle Position (TP) Sensor	Fig 26
Torque Converter Clutch (TCC) Solenoid	Fig 27
Transmission Range Sensor	Fig 28
Vehicle Speed Sensor (VSS)	Fig 29
12-Pin Data Link Connector (DLC)	Fig 30
16-Pin Data Link Connector (DLC)	Fig 31

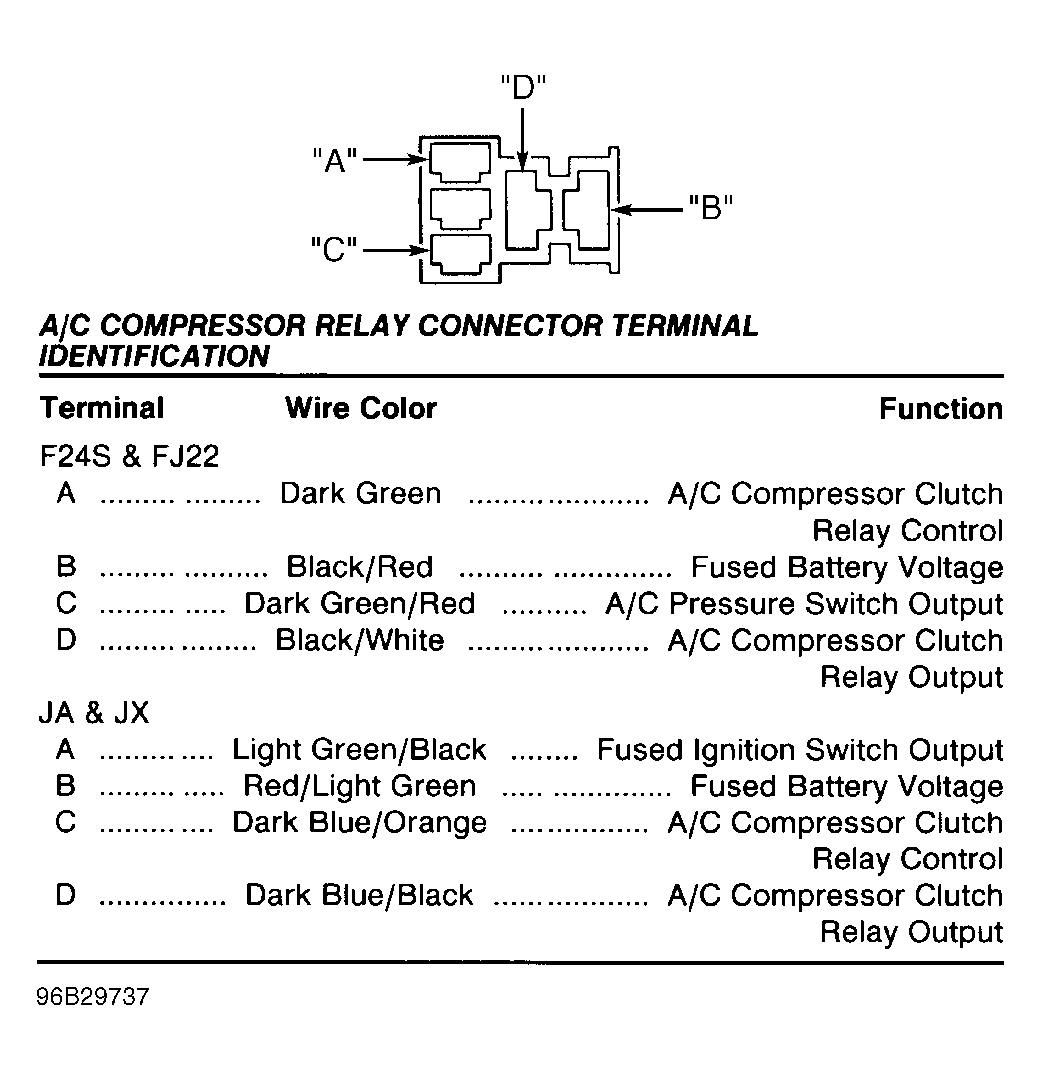

Fig 1: A/C Compressor Relay Connector

Courtesy of CHRYSLER CORP.
