1997 Eagle Talon Base, AutomaticFACTORY OEM SERVICE PROCEDURE
A/C Switch

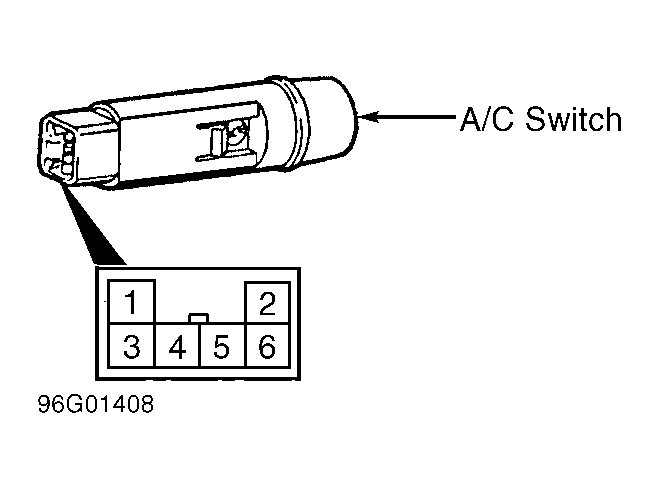

- Remove A/C switch from instrument panel. Note terminal identification on A/C switch. See Fig 1 .
- Using ohmmeter, check that continuity exists between specified terminals in relation to A/C switch position. See A/C SWITCH CONTINUITY table. Replace A/C switch if continuity is not as specified.
A/C SWITCH CONTINUITY
| A/C Switch Position | Terminals No. |
|---|---|
| OFF | 1 & 5; 3 & 6 |
| ON | 1, 4 & 5; 3 & 6 |
