1997 Eagle Talon Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Reprogramming Procedure

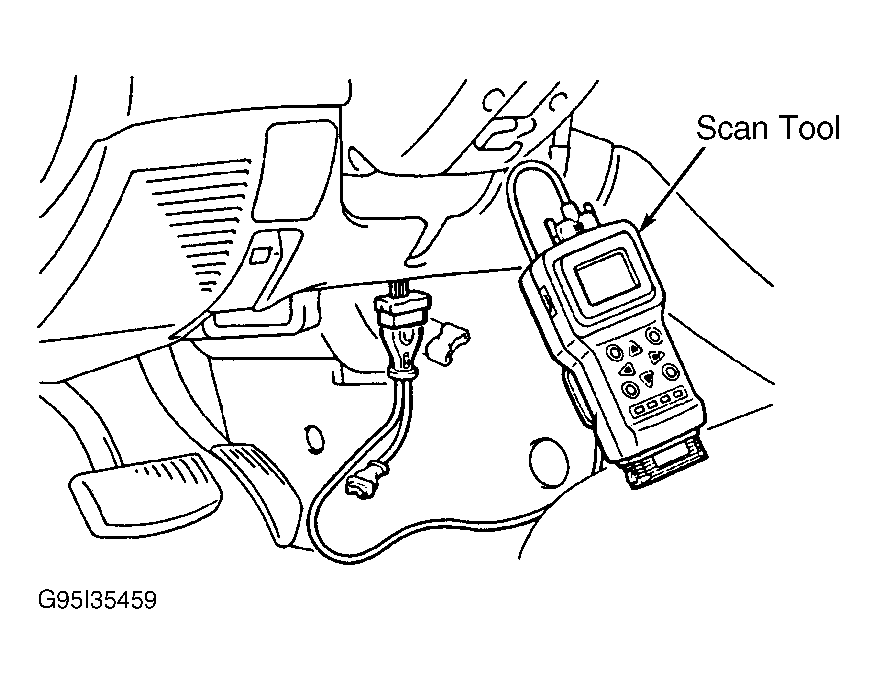

- Ensure ignition is off. Connect scan tool to Data Link Connector (DLC). See Fig 1 . Close all doors. Turn ignition switch to ACC position, then turn back to LOCK position.
- Press any button on transmitter. Press same button 2 more times within 10 seconds. After registration is complete, doors will lock, then unlock.
- Registration mode is completed under the following conditions:
- Registration of 2 transmitter codes are completed.
- One minute has passed since registration mode setting was completed.
- Scan tool is disconnected.
- Ignition is turned on.
- Any door is opened.
