1996 Eagle Summit BaseFACTORY OEM SERVICE PROCEDURE
Continuity Check

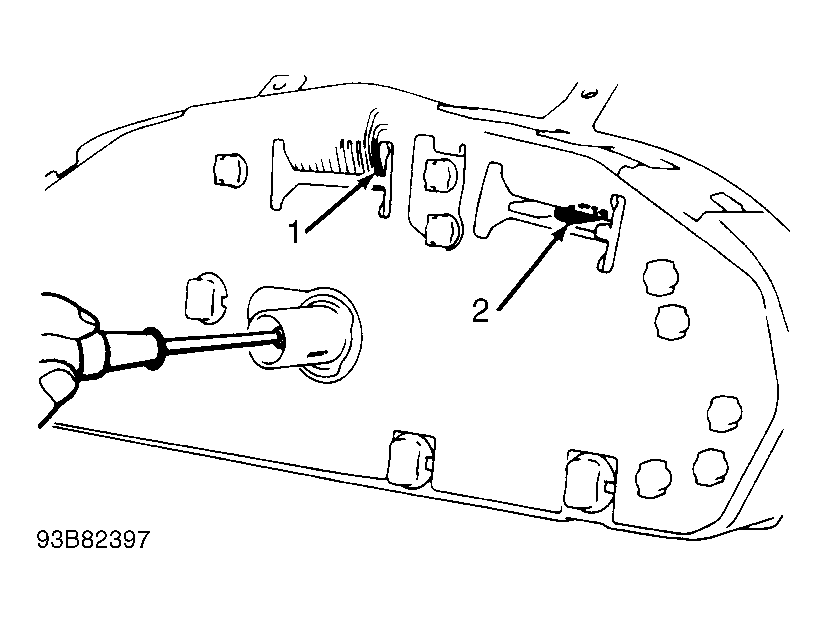

- Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Check continuity between reed switch terminals No. 1 and 2. See Fig 1 .
- Ensure continuity pulses on and off 4 times per revolution of speedometer shaft connection. If continuity is not as specified, replace reed switch.
