Power Window Switch Test

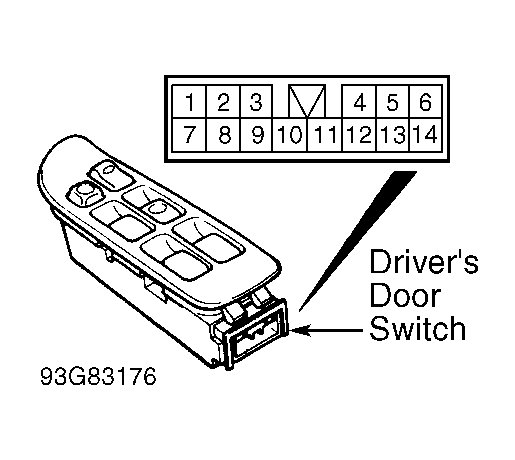

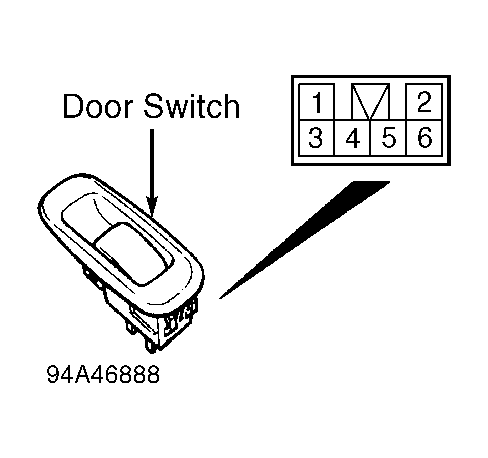

Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate WINDOW SWITCH CONTINUITY TABLE. See Fig 1 or Fig 2 . Replace appropriate switch as necessary if switch continuity is not as specified.
| Switch Position (1) | Check Continuity Between Pins No. | |||
|---|---|---|---|---|
| Normal Position | ||||
| Left Front OFF | 2, 3 & 10 | |||
| Left Rear OFF | 1, 3 & 7 | |||
| Left Front UP | 2 & 4; 3 & 10 | |||
| Left Rear UP | 1 & 3; 4 & 7 | |||
| Left Front DOWN | 2 & 3; 4 & 10 | |||
| Left Rear DOWN | 1 & 4; 3 & 7 | |||
| Right Front OFF | 3, 5 & 11 | |||
| Right Rear OFF | 3, 6 & 14 | |||
| Right Front UP | 3 & 5; 4 & 11 | |||
| Right Rear UP | 3 & 14; 4 & 6 | |||
| Right Front DOWN | 3 & 11; 4 & 5 | |||
| Right Rear DOWN | 3 & 6; 4 & 14 | |||
| Lock Position | ||||
| Left Front OFF | 2, 3 & 10 | |||
| Left Rear OFF | 1 & 7 | |||
| Left Front UP | 2 & 4; 3 & 10 | |||
| Left Rear UP | 4 & 7 | |||
| Left Front DOWN | 2 & 3; 4 & 10 | |||
| Left Rear DOWN | 1 & 4 | |||
| Right Front OFF | 5 & 11 | |||
| Right Rear OFF | 6 & 14 | |||
| Right Front UP | 4 & 11 | |||
| Right Rear UP | 4 & 6 | |||
| Right Front DOWN | 4 & 5 | |||
| Right Rear DOWN | 4 & 14 | |||
|
||||
| Switch Position | Check Continuity Between Pins No. |
|---|---|
| OFF | 1 & 2; 3 & 6 |
| UP | 2 & 4; 3 & 6 |
| DOWN | 1 & 2; 3 & 4 |
