1996 Eagle Summit BaseFACTORY OEM SERVICE PROCEDURE
Power Window Relay Test

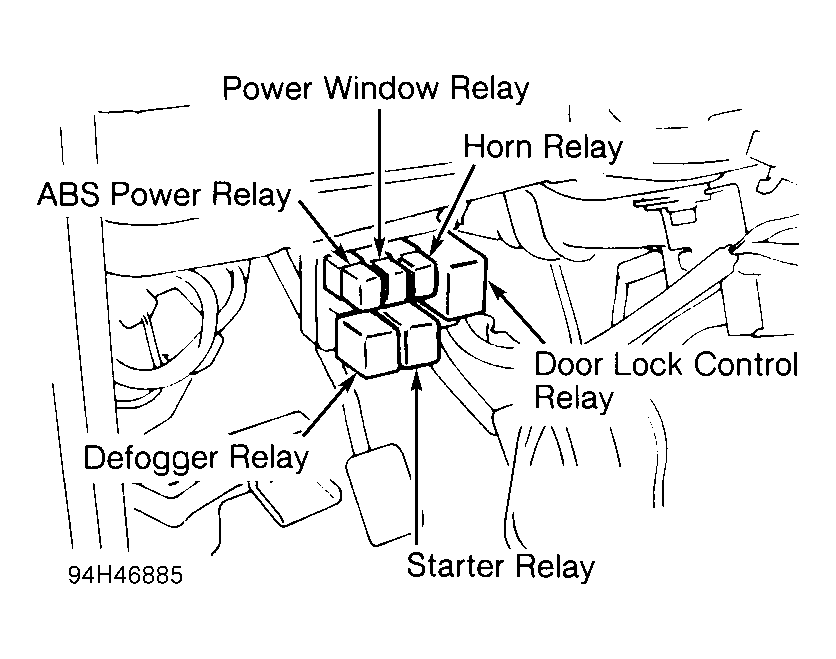

- Remove power window relay from fuse/relay block located in engine compartment. See Fig 1 . Check continuity between power window relay terminals No. 1 and 3. Continuity should be present.
- Connect positive lead of a 12-volt battery to power window relay terminal No. 1, and negative lead of battery to terminal No. 3. See Fig 2 . Continuity should be present between terminals No. 4 and 5 with voltage applied. Replace power window relay if continuity is not as specified.
