1994 Eagle Vision V6-201 3.3LFACTORY OEM SERVICE PROCEDURE
Sensor Test
Coolant Temperature Sensor Resistance Test:
1. With key off, disconnect connector from coolant temperature sensor.

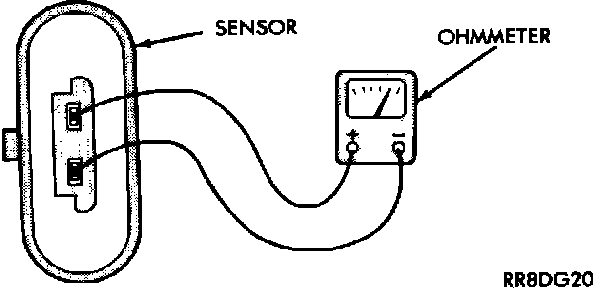

2. Connect ohmmeter across coolant temperature sensor. Resistance should read as follows;
- 700 to 1,000 Ohms at approximately 200°F (operating temperature).
- 7,000 to 13,000 ohms at approximately 70°F, (room temperature).
3. If resistance is not within specifications, replace sensor.
