1994 Eagle Vision V6-201 3.3LFACTORY OEM SERVICE PROCEDURE
RKE Transmitter Programming
PROGRAM REMOTE KEYLESS ENTRY TRANSMITTER
1. Remove the middle vent bezel from the instrument panel.
2. Locate the 2x3 traction control black connector. The connector will either be connected to the switch or the back of the bezel housing. Disconnect the connector.
3. Turn ignition switch to the ON position.
4. Ground pin 4 of the traction control connector. This is the programming line for the Remote Keyless Entry Module. The door locks will lock and unlock, to indicate the receiver is ready to receive transmitter code. The trunk solenoid will not cycle at this time.
5. Press any button on the transmitter to set code. The locks will cycle to confirm programming. If there is a second transmitter, it must be set at this time. Press any button on the second transmitter and wait for the locks to cycle.
6. Disconnect the program line from ground. This returns the system to its normal operation mode.
7. Attach the traction control switch connector back to its original position:
^ Traction control switch
^ Back of the bezel mounting
8. Replace the middle vent bezel to the instrument panel. If the vehicle has a traction control switch, check for functionality once the bezel is in place.
1. Remove the middle vent bezel from the instrument panel.

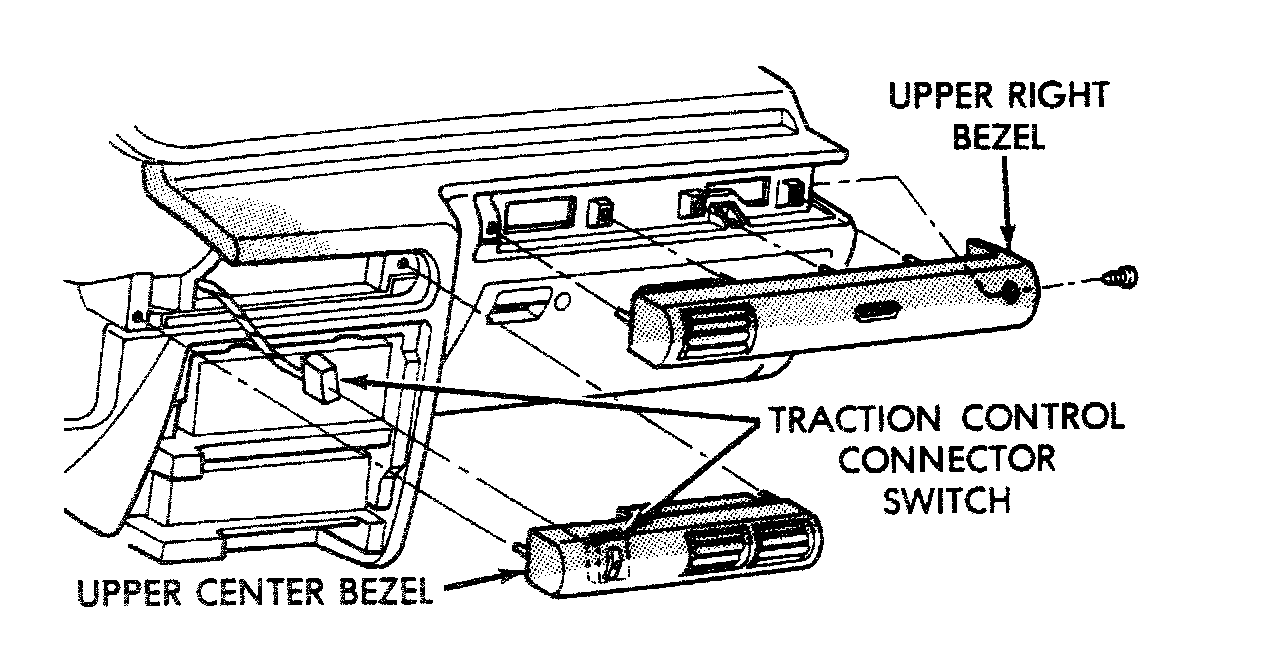

Middle Vent Bezel:
2. Locate the 2x3 traction control black connector. The connector will either be connected to the switch or the back of the bezel housing. Disconnect the connector.
3. Turn ignition switch to the ON position.

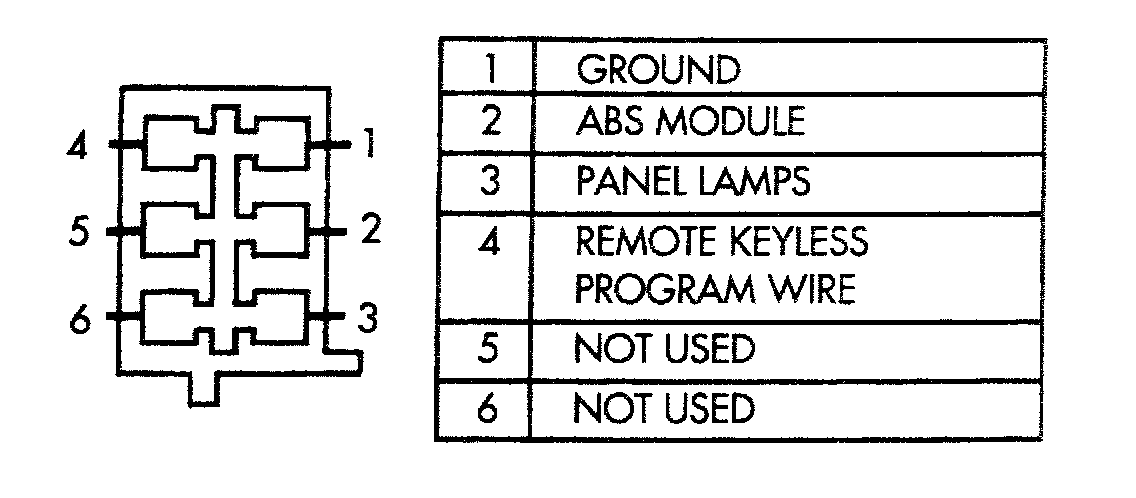

Traction Control Switch Connector:
4. Ground pin 4 of the traction control connector. This is the programming line for the Remote Keyless Entry Module. The door locks will lock and unlock, to indicate the receiver is ready to receive transmitter code. The trunk solenoid will not cycle at this time.
5. Press any button on the transmitter to set code. The locks will cycle to confirm programming. If there is a second transmitter, it must be set at this time. Press any button on the second transmitter and wait for the locks to cycle.
6. Disconnect the program line from ground. This returns the system to its normal operation mode.
7. Attach the traction control switch connector back to its original position:
^ Traction control switch
^ Back of the bezel mounting
8. Replace the middle vent bezel to the instrument panel. If the vehicle has a traction control switch, check for functionality once the bezel is in place.
