1994 Eagle Talon ES, AutomaticFACTORY OEM SERVICE PROCEDURE
Connector Identification
CONNECTOR IDENTIFICATION
| Connector | See Figure | |
|---|---|---|

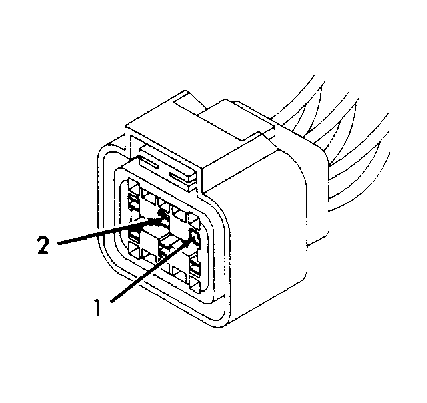

| Airflow Sensor | Fig 1 | |
| Coolant Temperature Sensor | Fig 2 | |
| Distributor 6-Pin | Fig 3 | |
| Electronic Control Unit | ||
| 10-Pin | Fig 4 | |
| 18-Pin | Fig 5 | |
| 24-Pin | Fig 6 | |
| Fuel Injector | Fig 7 | |
| Fuel Injector Control Relay | Fig 8 | |
| Fuel Pump | Fig 9 | |
| Idle Speed Control Motor | Fig 10 | |
| Ignition Coil | Fig 11 | |
| Inhibitor Switch | Fig 12 | |
| Throttle Position Sensor | Fig 13 | |
