1994 Eagle Talon ES, AutomaticFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor (TPS)
CAUTION:
When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES
article in GENERAL INFORMATION section before disconnecting battery.

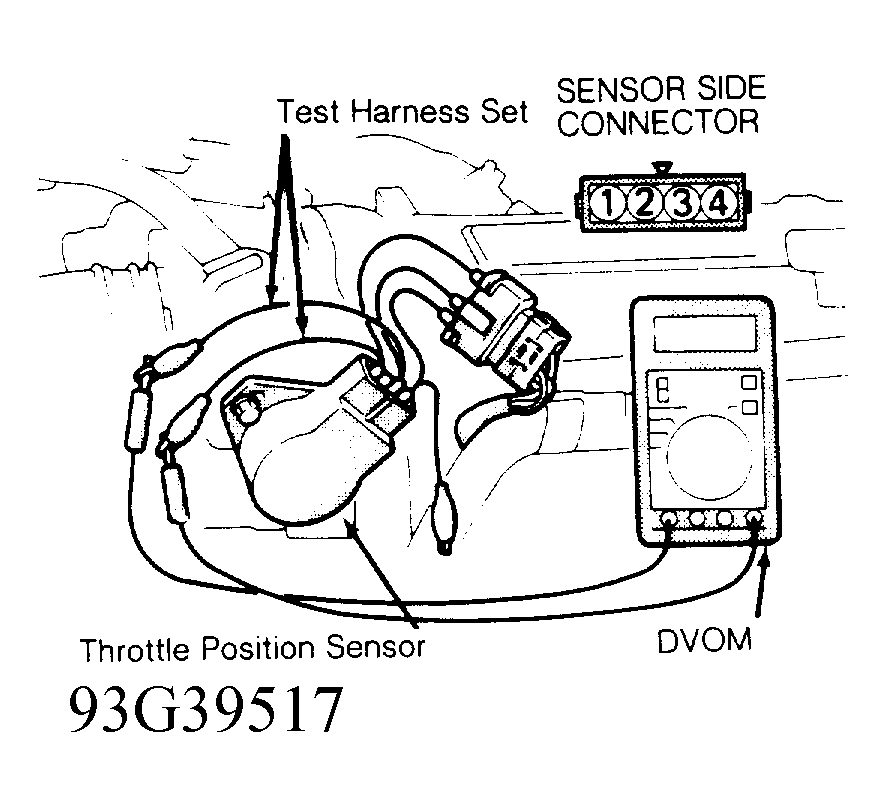

- Ensure basic idle speed is set to specification. See the IDLE SPEED SPECIFICATIONS table under IDLE SPEED. Install Test Harness Set (MB99138) between TPS and TPS connector. See Fig 1 . Connect Digital Volt-Ohmmeter (DVOM) between TPS output terminals No. 2 and 4. Turn ignition on. DO NOT start engine.
- Check TPS voltage. Reading should be .48-.52 volt. Adjust TPS until correct voltage is obtained. Clockwise rotation of TPS increases output voltage. Turn ignition off, and disconnect DVOM. Disconnect negative battery cable for 10 seconds or more to clear any trouble codes.
