1994 Eagle Summit LX, AutomaticFACTORY OEM SERVICE PROCEDURE

Terminal Identification

NOTE: The following terminals are shown as viewed from component side of connector.
TERMINAL IDENTIFICATION DIRECTORY

Connector See Figure
Airflow Sensor Fig 1
CKP/CMP Sensor Fig 2
Coolant Temperature Sensor Fig 3
ECM Fig 4
EGR Temperature Sensor Fig 5
Fuel Injector Fig 6
Idle Air Control Valve Position Sensor Fig 7
Idle Speed Control Motor & Position Sensor Fig 8 & Fig 9
Ignition Coil Fig 10
Induction Control Valve Position Sensor Fig 11
Knock Sensor Fig 12
MAP Sensor Fig 13
MFI Relay Fig 14
Oxygen Sensor (O2S) Fig 15
Throttle Position Sensor Fig 16
Traction Control Vacuum Solenoid Fig 17
Traction Control Vent Solenoid Fig 18
Transaxle Control Module Fig 19

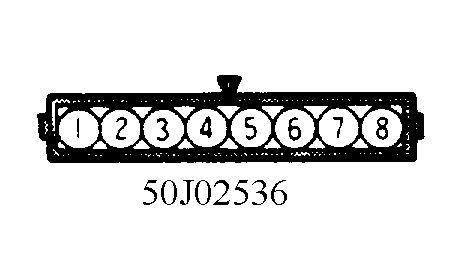

Fig 1: Identifying Airflow Sensor Terminals
G50J02536Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
