Power Circuits

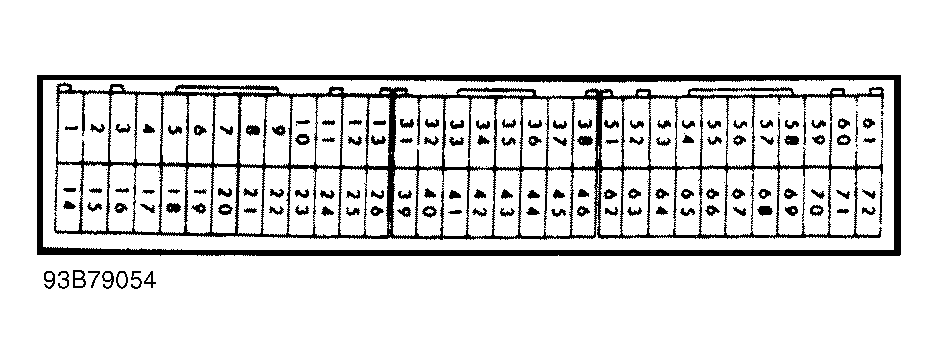

Turn ignition on. Check for battery voltage on ECM power terminals. See POWER TERMINAL IDENTIFICATION table. If battery voltage is not present, check operation of MFI relay. See RELAYS under MOTORS, RELAYS & SOLENOIDS.
| Application | ECM Terminals No. |
|---|---|
| All Models | 13 & 26 |
| Application | ECM Terminals No. |
|---|---|
| All Models | 12 & 25 |
| Application | Location |
|---|---|
| All Models | Behind Right Side Of Instrument Panel (Glove Box) |
