1993 Eagle Vision ESiFACTORY OEM SERVICE PROCEDURE

Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector See
Auto Shutdown (ASD) Relay Fig 1
Barometric Pressure Solenoid Fig 2
Camshaft Position Sensor Fig 3
Crankshaft Position Sensor Fig 4
Distributor Connector (Harness Side) Fig 5
Engine Coolant Temperature (ECT) Sensor Fig 6
Evaporative Purge Solenoid Fig 7
Flexible Fuel Sensor Fig 8
Fuel Pump Fig 9
Fuel Pump Relay Fig 10
Idle Air Control (IAC) Motor Fig 11
Ignition Coil Fig 12
Injector Connector Fig 13 & Fig 14
Intake Air Temperature (IAT) Sensor Fig 15
Knock Sensor Fig 16
Manifold Absolute Pressure (MAP) Sensor Fig 17
Manifold Tuning Valve (MTV) Solenoid Fig 18
Oxygen Sensor Fig 19
Radiator Fan Relay Fig 20 & Fig 21
Torque Converter Clutch Solenoid Fig 22
Throttle Position Sensor (TPS) Fig 23
Wastegate Solenoid Fig 24
Powertrain Control Module (PCM) Fig 25

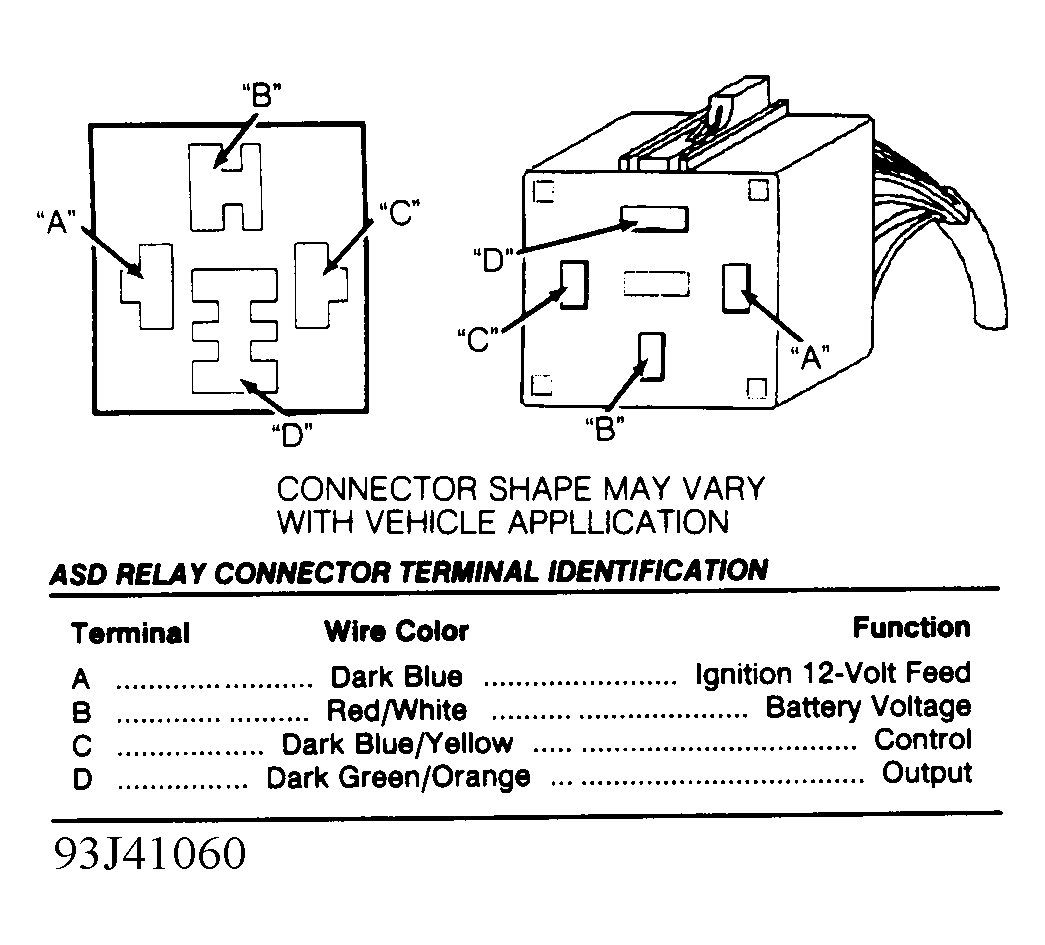

ASD RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
A Dark Blue Ignition 12-Volt Feed
B Red/White Battery Voltage
C Dark Blue/Yellow Control
D Dark Green/Orange Output
Fig 1: Auto Shutdown (ASD) Relay Connector Terminal ID
G93J41060Courtesy of CHRYSLER CORP.

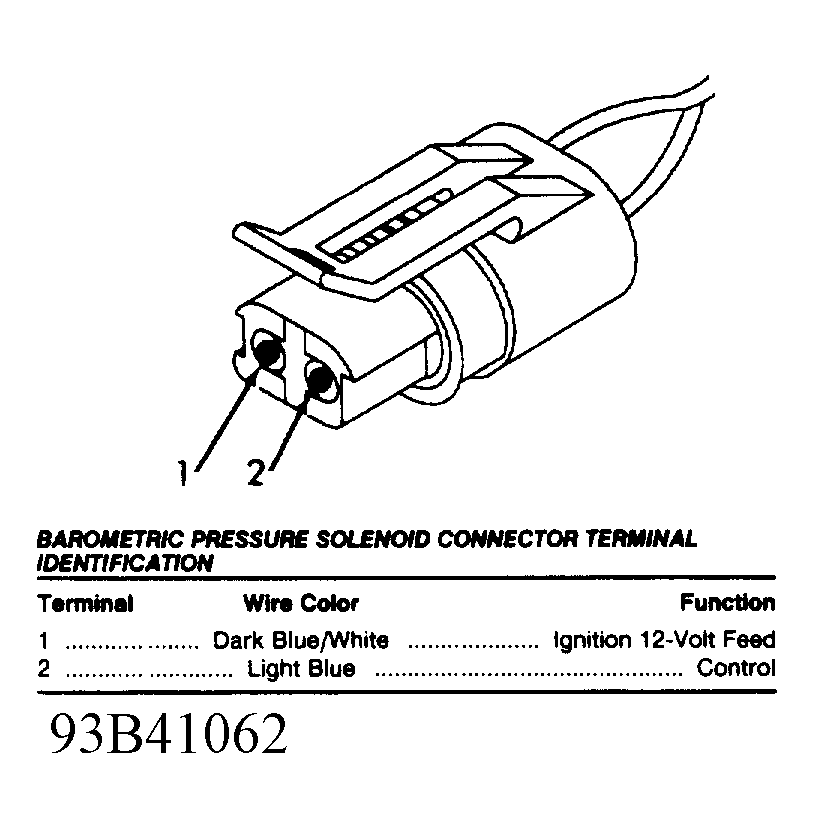

BAROMETRIC PRESSURE SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
1 Dark Blue/White Ignition 12-Volt Feed
2 Light Blue Control
Fig 2: Barometric Pressure Solenoid Connector Terminal ID
G93B41062Courtesy of CHRYSLER CORP.
CAMSHAFT POSITION SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
1 Orange 8-Volt Supply
2 Black/Light Blue Ground
3 Tan/Yellow Signal
Fig 3: Camshaft Position Sensor Connector Terminal ID
G93D41064Courtesy of CHRYSLER CORP.
CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
1 Orange 8-Volt Supply
2 Black/Light Blue Ground
3 Gray/Black Signal
Fig 4: Crankshaft Position Sensor Connector Terminal ID
G93E41065Courtesy of CHRYSLER CORP.

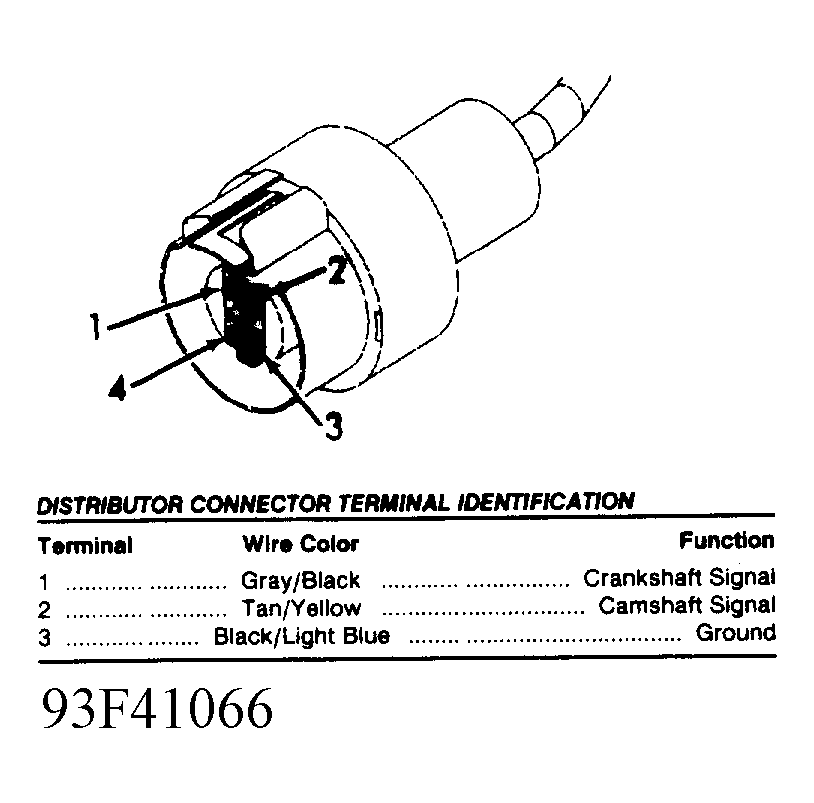

DISTRIBUTOR CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
1 Gray/Black Crankshaft Signal
2 Tan/Yellow Camshaft Signal
3 Black/Light Blue Ground
Fig 5: Distributor Connector Terminal ID
G93F41066Courtesy of CHRYSLER CORP.
ENGINE TEMP COOLANT (ECT) SENSOR CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Tan/Black Signal
2 Black/Light Blue Ground
Fig 6: Engine Coolant Temperature (ECT) Sens Connector Terminal ID
G93G41067Courtesy of CHRYSLER CORP.

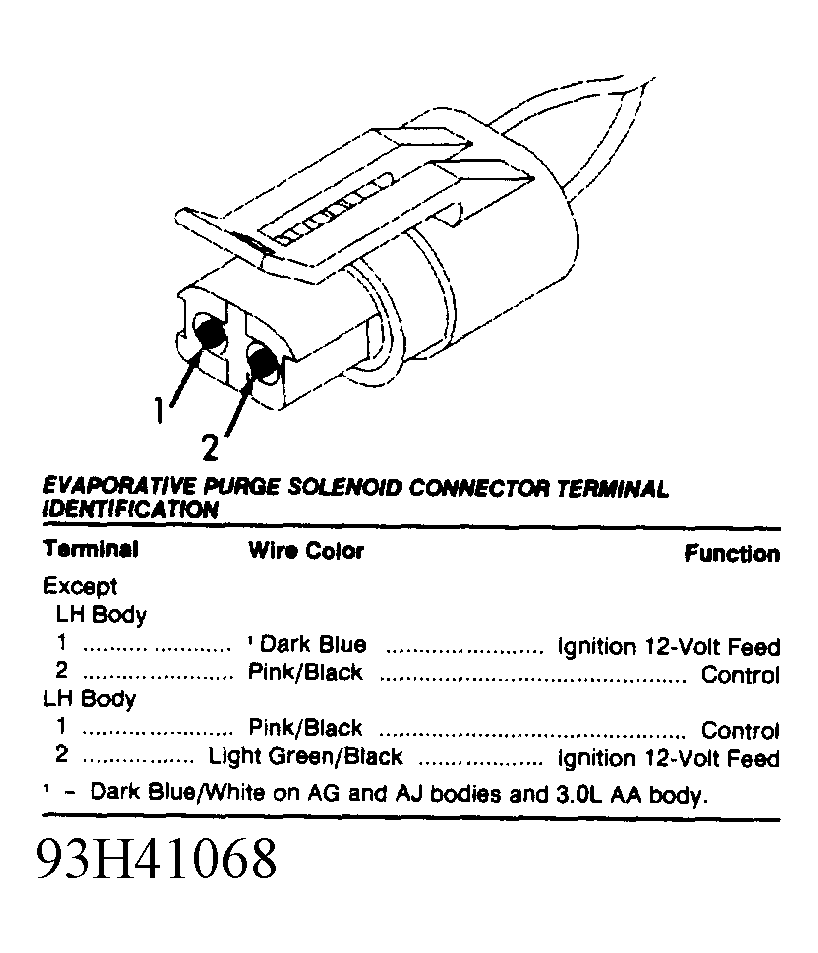

EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Pink/Black Control
2 Light Green/Black Ignition 12-Volt Feed
Fig 7: Evaporative Purge Solenoid Connector Terminal ID
G93H41068Courtesy of CHRYSLER CORP.

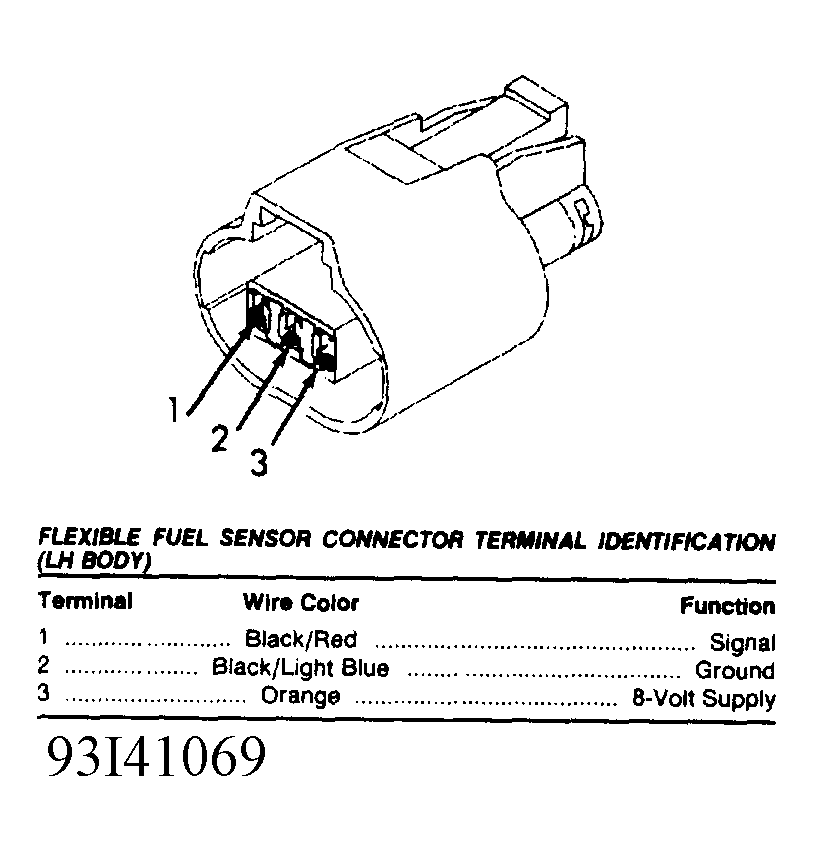

FLEXIBLE FUEL SENSOR CONNECTOR TERMINAL IDENTIFICATION (LH BODY)

Terminal Wire Color Function
1 Black/Red Signal
2 Black/Light Blue Ground
3 Orange 8-Volt Supply
Fig 8: Flexible Fuel Sensor Connector Terminal ID
G93I41069Courtesy of CHRYSLER CORP.

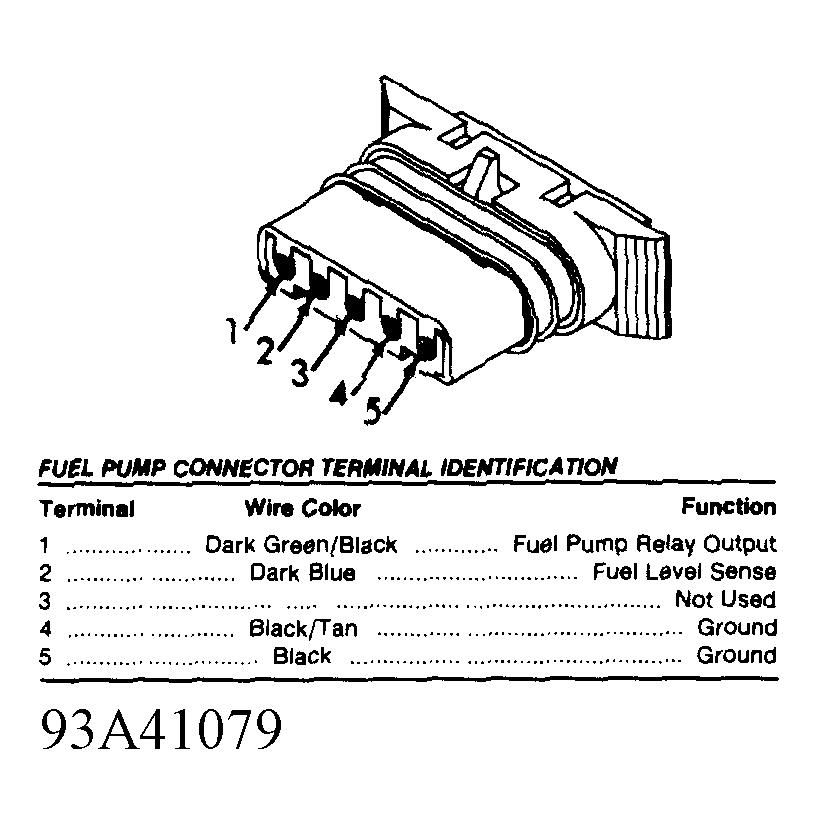

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
1 Dark Green/Black Fuel Pump Relay Output
2 Dark Blue Fuel Level Sense
3 Not Used Not Used
4 Black/Tan Ground
5 Black Ground
Fig 9: Fuel Pump Connector Terminal ID (LH Body)
G93A41079Courtesy of CHRYSLER CORP.

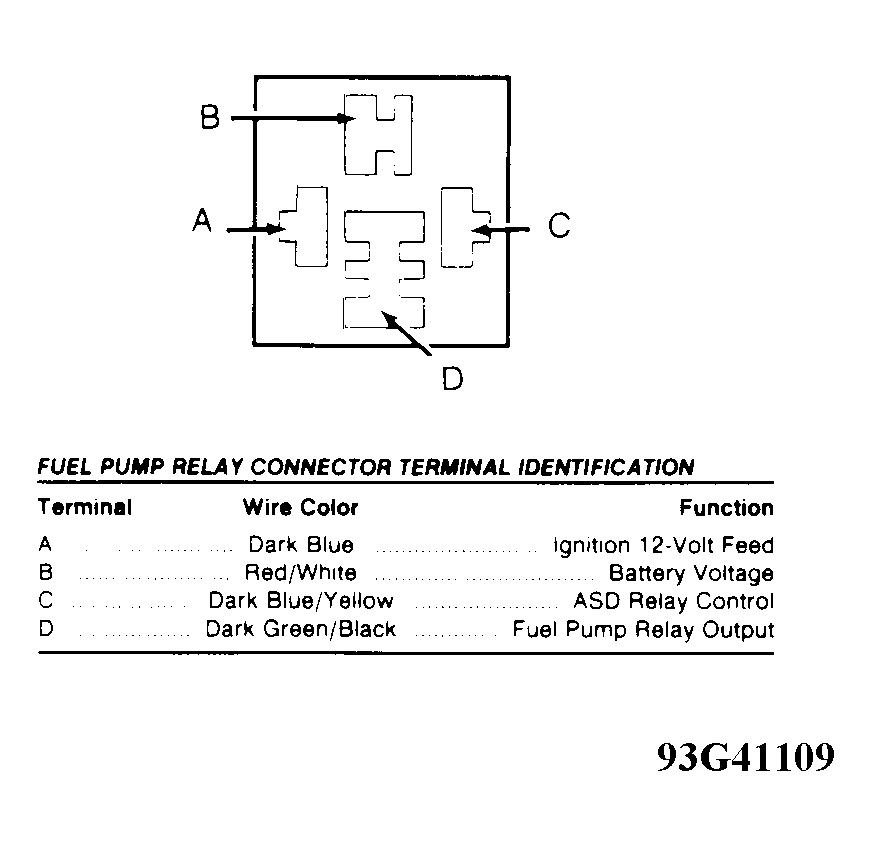

FUEL PUMP RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
A Dark Blue Ignition 12-Volt Feed
B Red/White Battery Voltage
C Dark Blue/Yellow ASD Relay Control
D Dark Green/Black Fuel Pump Relay Output
Fig 10: Fuel Pump Relay Connector Terminal ID (3.3L)
G93G41109Courtesy of CHRYSLER CORP.

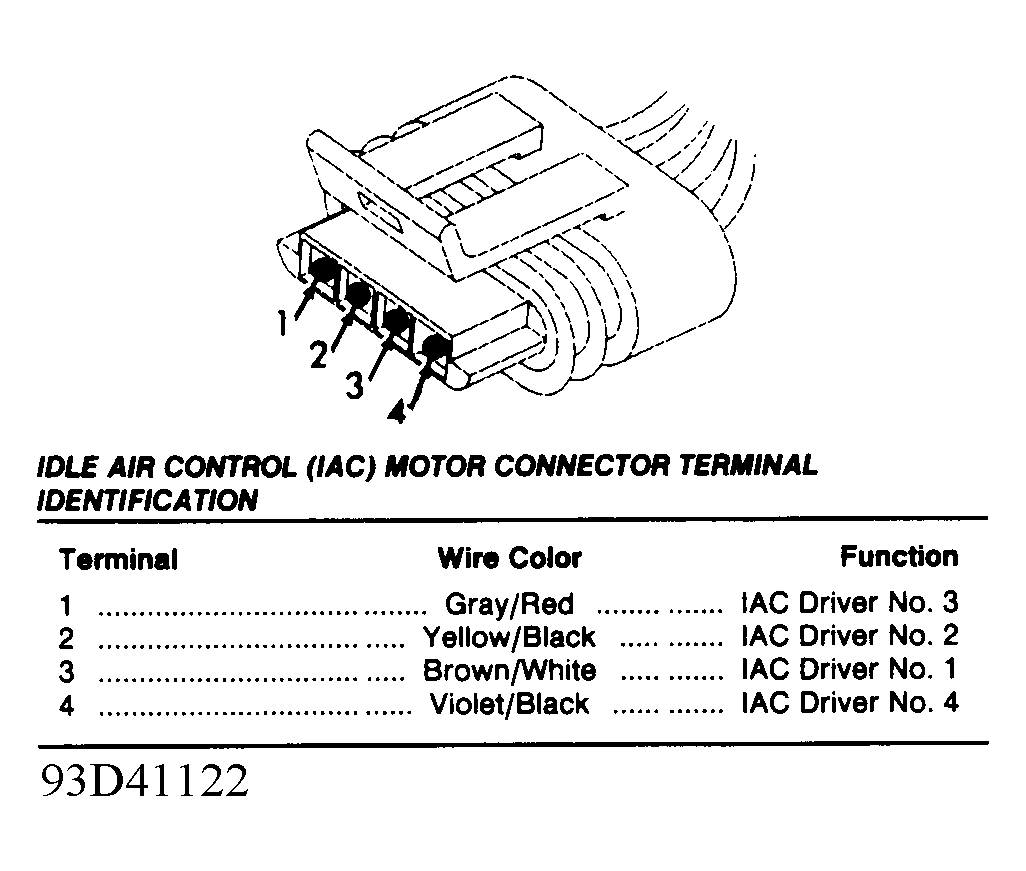

IDLE AIR CONTROL (IAC) MOTOR CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
1 Gray/Red IAC Driver No. 3
2 Yellow/Black IAC Driver No. 2
3 Brown/White IAC Driver No. 1
4 Violet/Black IAC Driver No. 4
Fig 11: Idle Air Control (IAC) Motor Connector Terminal ID
G93D41122Courtesy of CHRYSLER CORP.

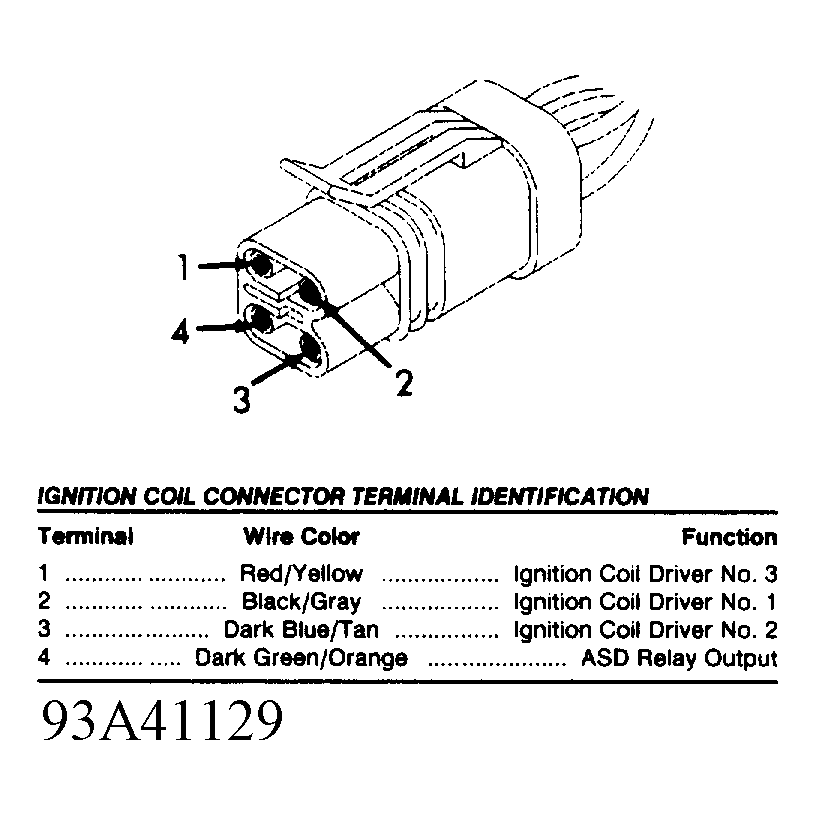

IGNITION COIL CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
1 Red/Yellow Ignition Coil Driver No. 3
2 Black/Gray Ignition Coil Driver No. 1
3 Dark Blue/Tan Ignition Coil Driver No. 2
4 Dark Green/Orange ASD Relay Output
Fig 12: Ignition Coil Connector Terminal ID
G93A41129Courtesy of CHRYSLER CORP.

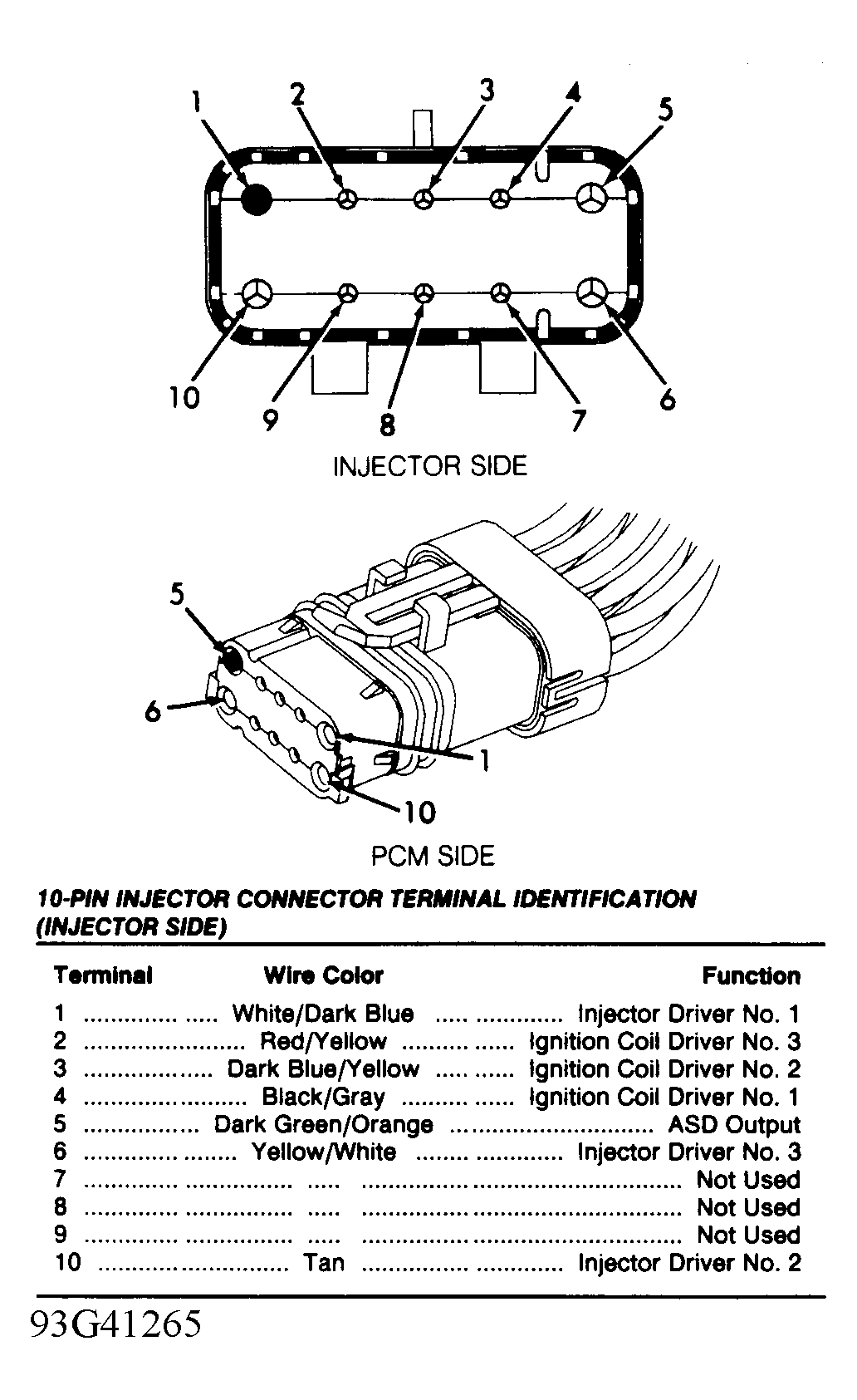

10-PIN INJECTOR CONNECTOR TERMINAL ID (INJECTOR SIDE)

Terminal Wire Color Function
1 White/Dark Blue Injector Driver No. 1
2 Red/Yellow Ignition Coil Driver No. 3
3 Dark Blue/Yellow Ignition Coil Driver No. 2
4 Black/Gray Ignition Coil Driver No. 1
5 Dark Green/Orange ASD Output
6 Yellow/White Injector Driver No. 3
7 Not Used Not Used
8 Not Used Not Used
9 Not Used Not Used
10 Tan Injector Driver No. 2
Fig 13: 10-Pin Injector Connector Terminal ID (3.3L)
G93G41265Courtesy of CHRYSLER CORP.

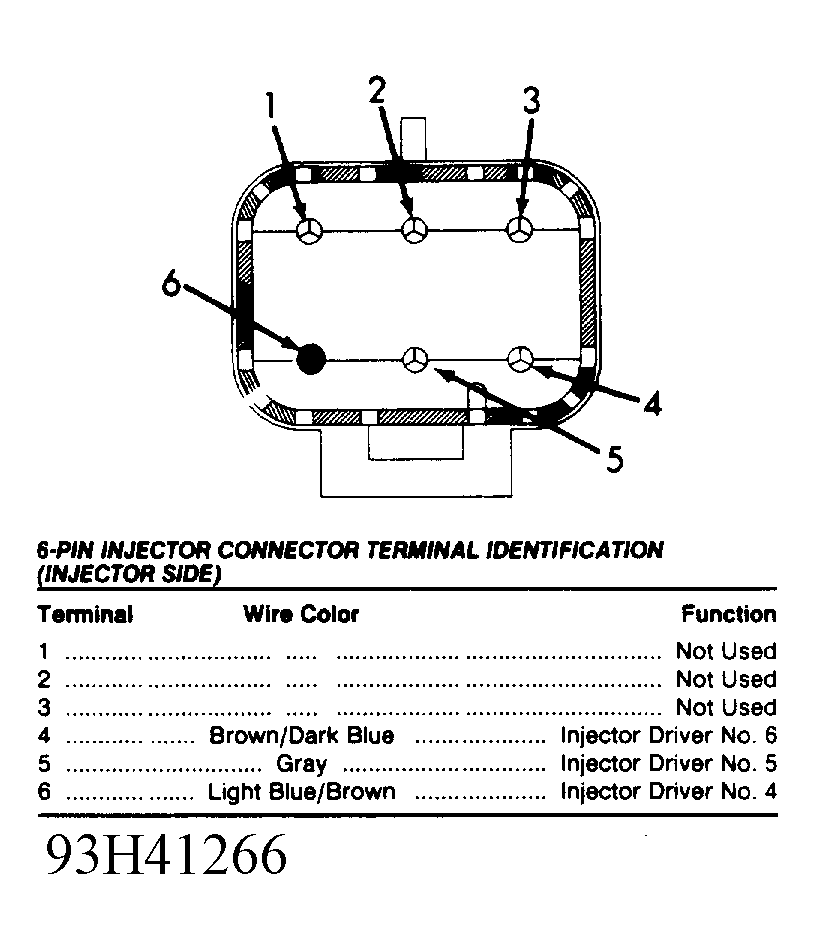

6-PIN INJECTOR CONNECTOR TERMINAL ID (INJECTOR SIDE)

Terminal Wire Color Function
1 Not Used Not Used
2 Not Used Not Used
3 Not Used Not Used
4 Brown/Dark Blue Injector Driver No. 6
5 Gray Injector Driver No. 5
6 Light Blue/Brown Injector Driver No. 4
Fig 14: 6-Pin Injector Connector Terminal ID (3.3L)
G93H41266Courtesy of CHRYSLER CORP.
INTAKE AIR TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Black/Red Signal
2 Black/Light Blue Ground
Fig 15: Intake Air Temperature (IAT) Sensor Connector Terminal ID
G93G41133Courtesy of CHRYSLER CORP.

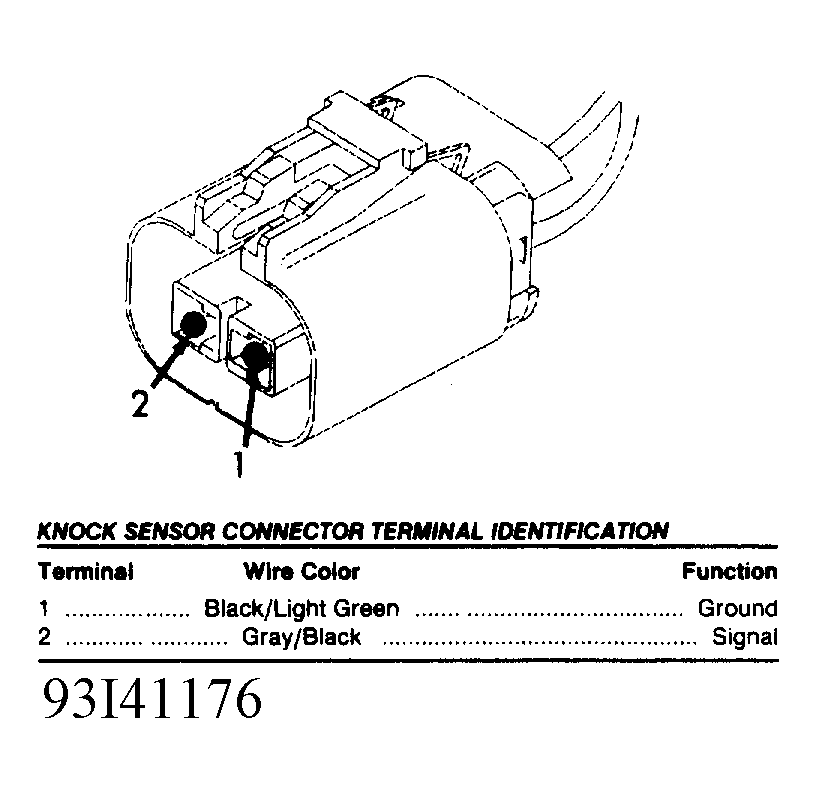

KNOCK SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
1 Black/Light Green Ground
2 Gray/Black Signal
Fig 16: Knock Sensor Connector Terminal ID (LH Body)
G93I41176Courtesy of CHRYSLER CORP.
MAP SENSOR CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
1 Black/Light Blue Ground
2 Dark Green/Red Signal
3 Violet/White 5-Volt Supply
Fig 17: Manifold Absolute Pressure (MAP) Sensor Connector Terminal ID
G93H41134Courtesy of CHRYSLER CORP.
MANIFOLD TUNING VALVE SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
1 Violet/White Control
2 Light Green/Black Ignition 12-Volt Feed
Fig 18: Manifold Tuning Valve (MTV) Solenoid Connector Terminal ID
G93I41135Courtesy of CHRYSLER CORP.

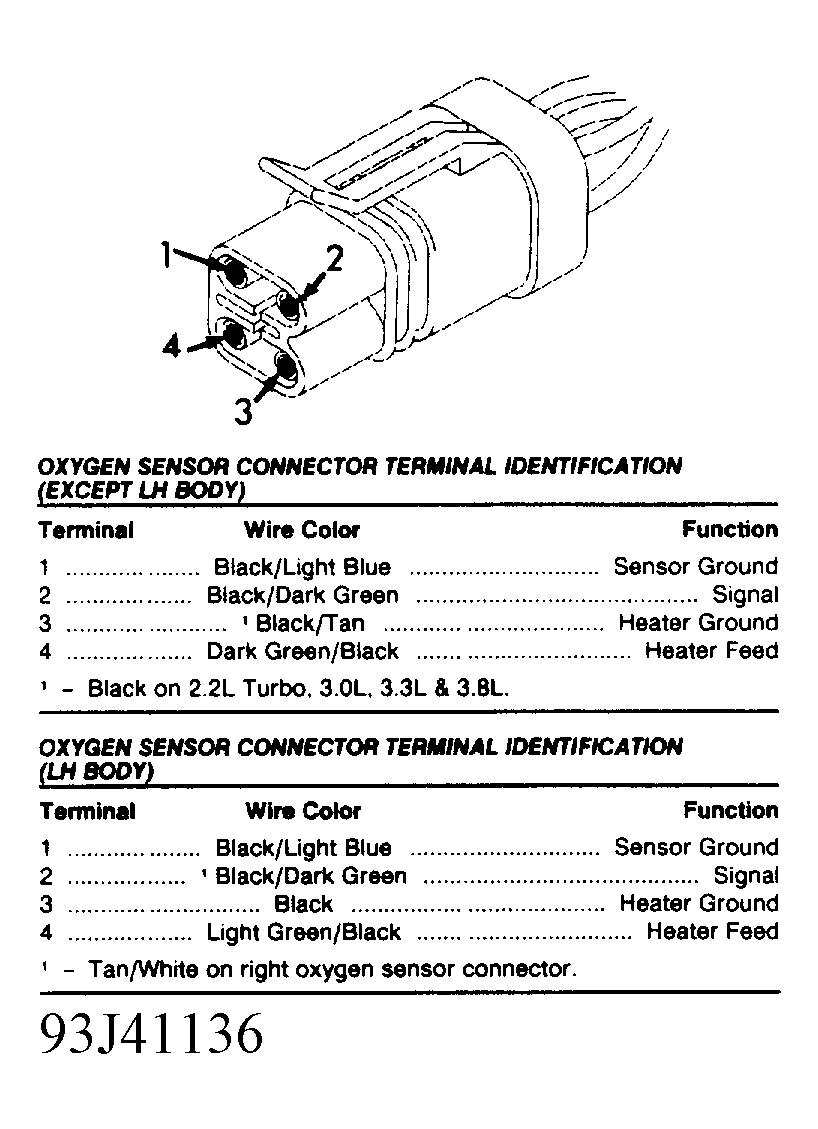

OXYGEN SENSOR CONNECTOR TERMINAL IDENTIFICATION (LH BODY)

Terminal Wire Color Function
1 Black/Light Blue Sensor Ground
2 (1) Black/Dark Green Signal
3 Black Heater Ground
4 Light Green/Black Heater Feed
(1) Tan/White on right oxygen sensor connector.
Fig 19: Oxygen Sensor Connector Terminal ID
G93J41136Courtesy of CHRYSLER CORP.

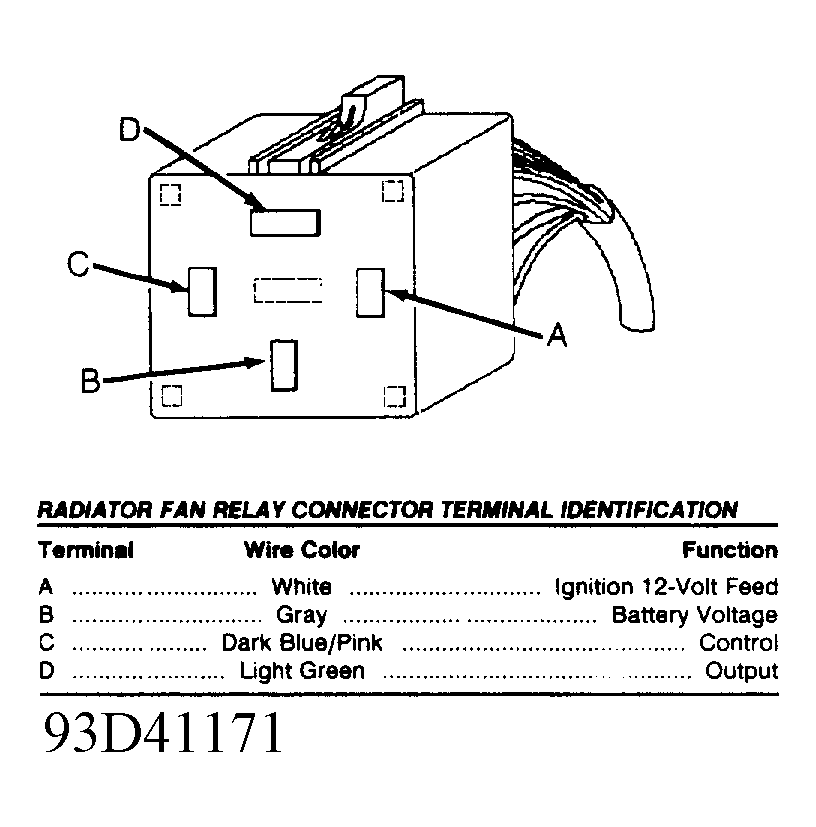

RADIATOR FAN RELAY CONNECTOR TERMINAL IDENTIFICATION (3.3L)

Terminal Wire Color Function
A White Ignition 12-Volt Feed
B Gray Battery Voltage
C Dark Blue/Pink Control
D Light Green Output
Fig 20: Radiator Fan Relay Connector Terminal ID (3.3L)
G93D41171Courtesy of CHRYSLER CORP.
RADIATOR FAN RELAY CONNECTOR TERMINAL IDENTIFICATION (3.5L)

Terminal Wire Color Function
A Dark Blue Ignition 12-Volt Feed
B Gray Battery Voltage
C Dark Blue/Pink Control
D Light Green Output
Fig 21: Radiator Fan Relay Connector Terminal ID (3.5L)
G93E41172Courtesy of CHRYSLER CORP.

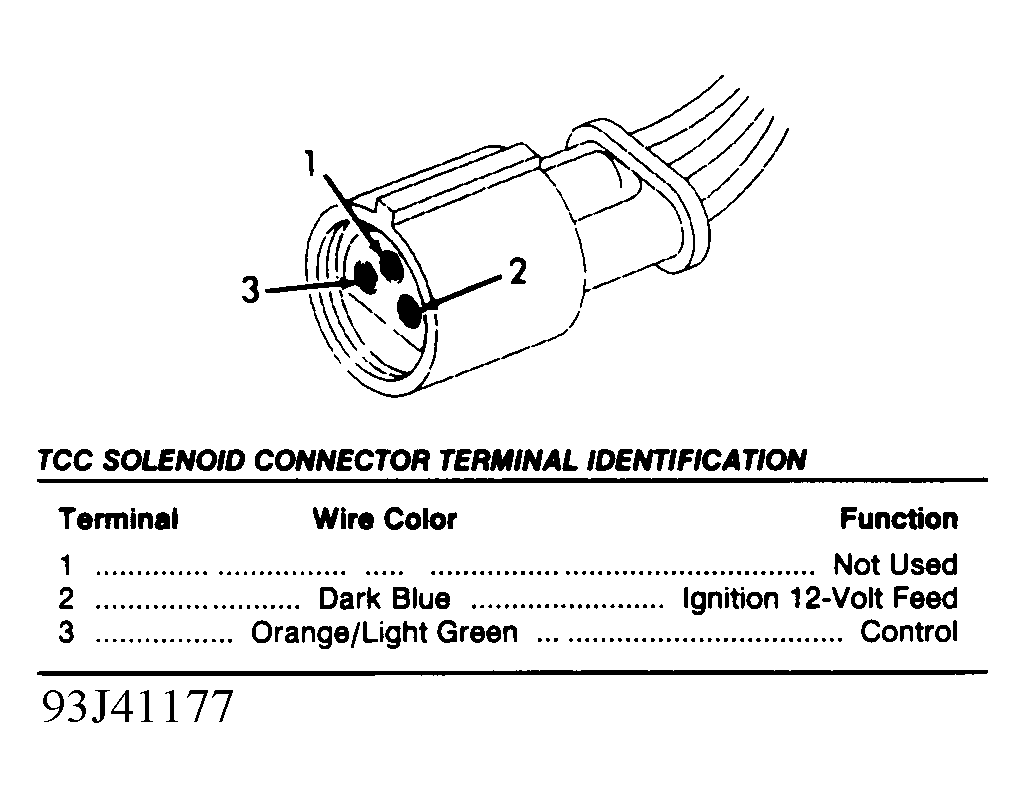

TORQUE CONVERTER CLUTCH SOLENOID CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Not Used Not Used
2 Dark Blue Ignition 12-Volt Feed
3 Orange/Light Green Control
Fig 22: Torque Converter Clutch Solenoid Connector Terminal ID
G93J41177Courtesy of CHRYSLER CORP.

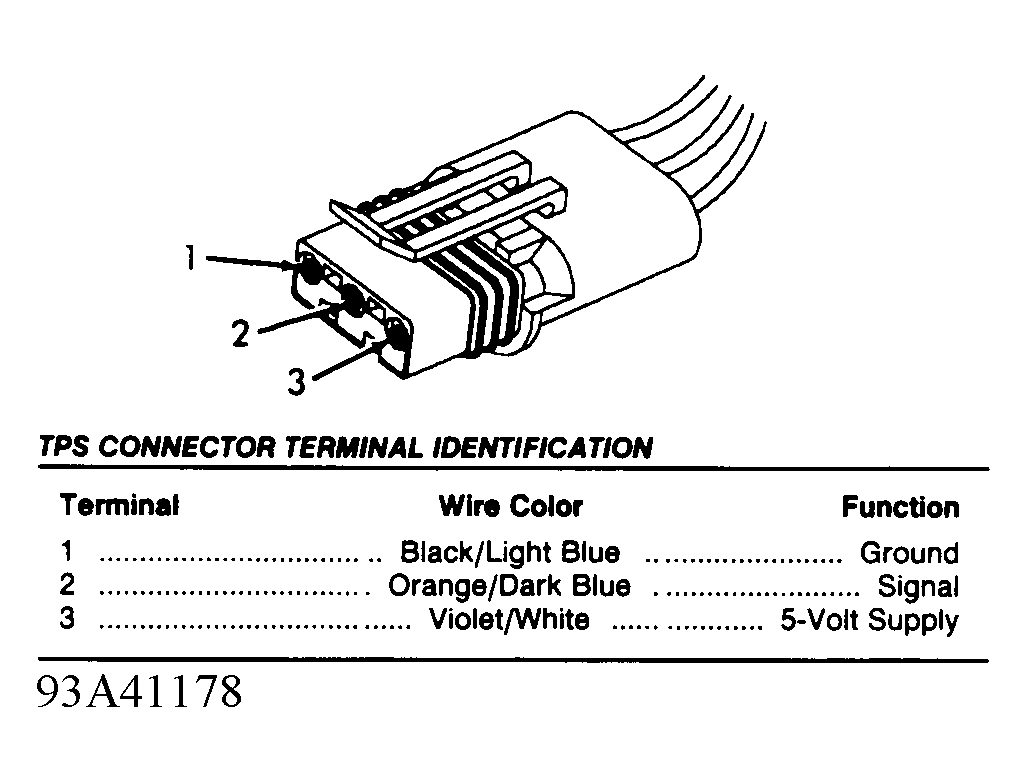

THROTTLE POSITION SENSOR (TPS) CONNECTOR TERMINAL ID

Terminal Wire Color Function
1 Black/Light Blue Ground
2 Orange/Dark Blue Signal
3 Violet/White 5-Volt Supply
Fig 23: Throttle Position Sensor (TPS) Connector Terminal ID
G93A41178Courtesy of CHRYSLER CORP.

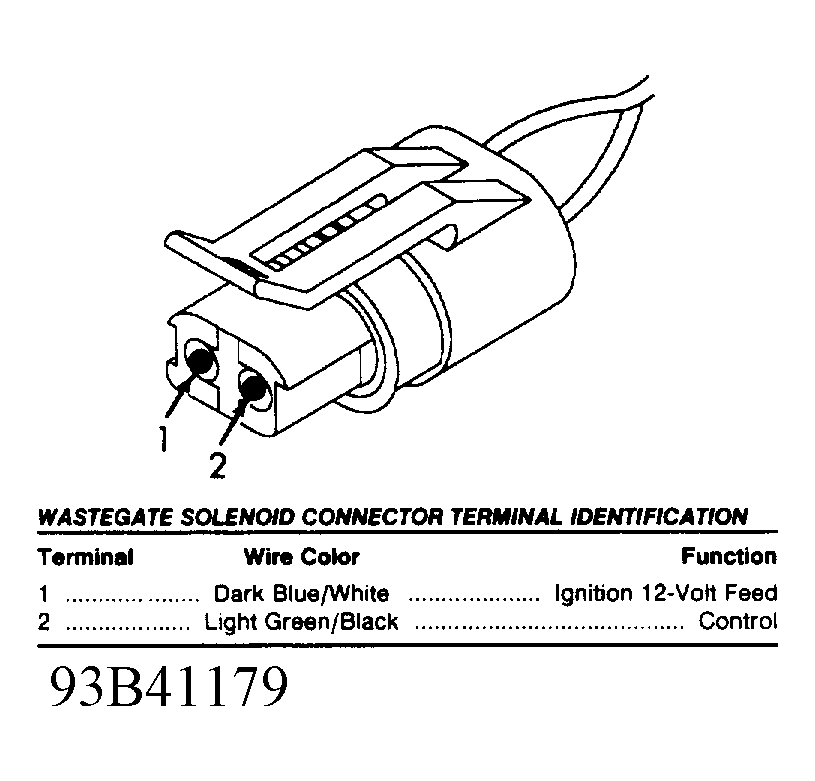

WASTEGATE SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal Wire Color Function
1 Dark Blue/White Ignition 12-Volt Feed
2 Light Green/Black Control
Fig 24: Wastegate Solenoid Connector Terminal ID
G93B41179Courtesy of CHRYSLER CORP.
