1993 Eagle Vision ESiFACTORY OEM SERVICE PROCEDURE
Lift Switch Test

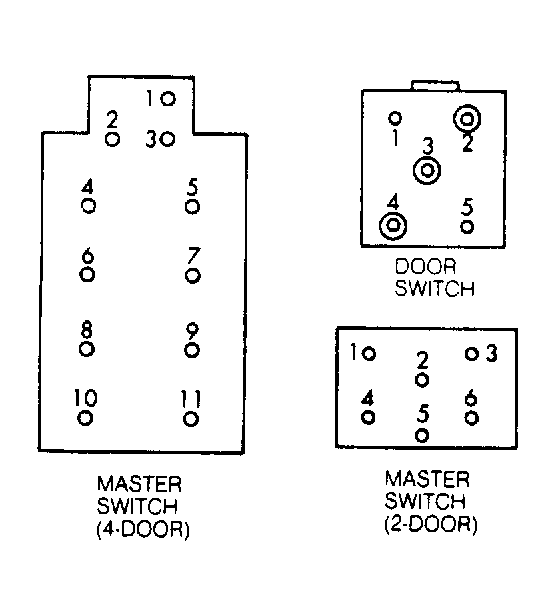

- Remove control switch from trim panel. Using ohmmeter, check continuity of switch. See appropriate MASTER WINDOW SWITCH CONTINUITY CHART or DOOR SWITCH CONTINUITY CHART and Fig 1 and Fig 2 . Refer to MODEL IDENTIFICATION for body classification. Replace appropriate switch as necessary if switch continuity is not as specified.
- AC, AY and LH bodies are equipped with an Auto Down feature. Driver's window can be lowered without having to hold the switch in the down position. Auto Down feature can be activated by pressing down switch past the first detent (Stop).
- To test Auto Down feature, operate switch in normal up and down mode. If window operates properly in normal mode, but does not operate in Auto Down mode, replace switch.
