1993 Eagle Talon AWD L4-1997cc 2.0L DOHC TurboFACTORY OEM SERVICE PROCEDURE
Engine Control Module
Part 1 of 3
Part 2 of 3
Part 3 of 3

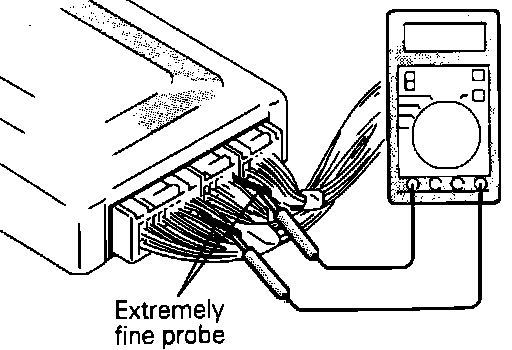

Connect a very thin probe (such as a paper clip) to the positive lead of the voltmeter.

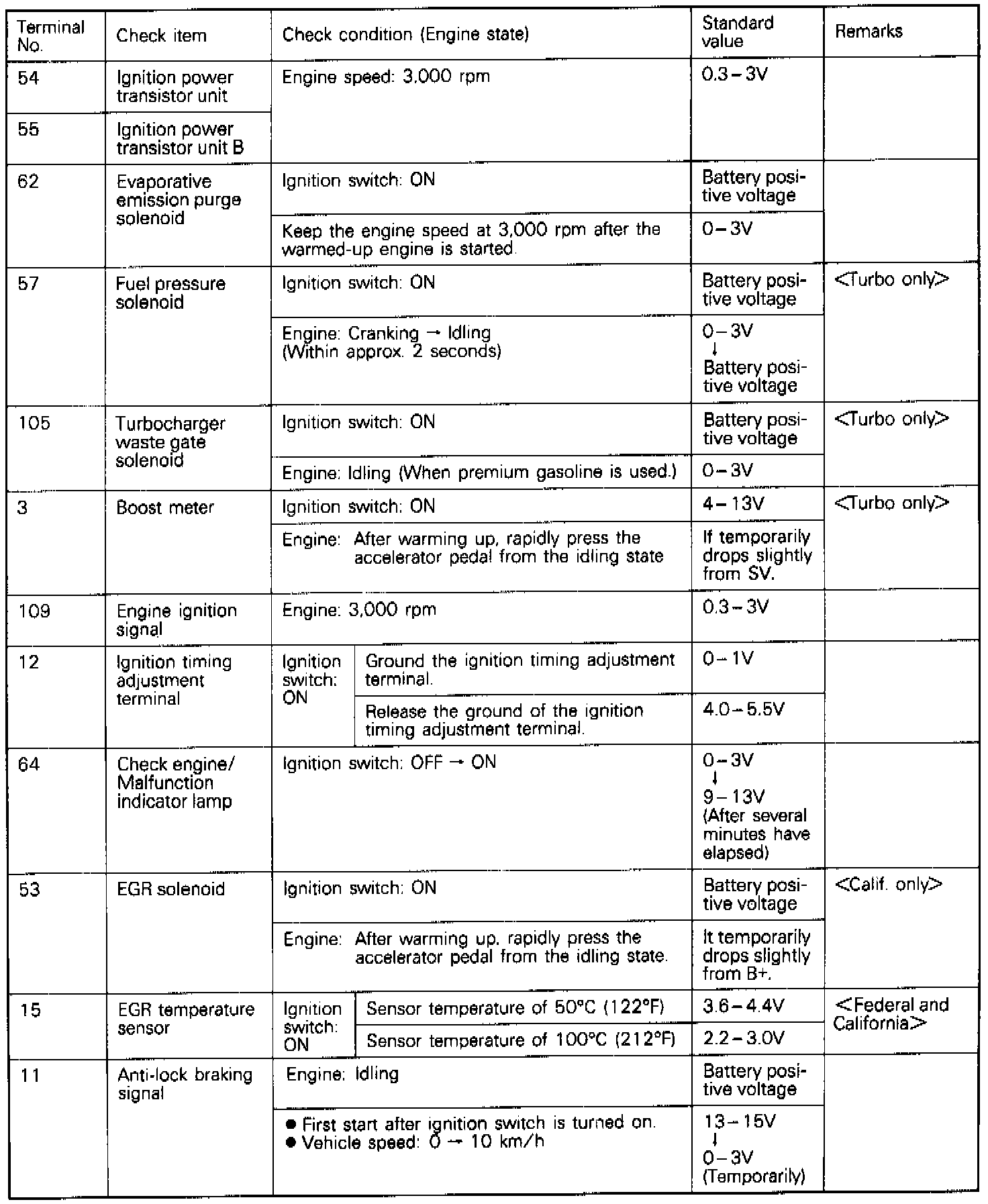

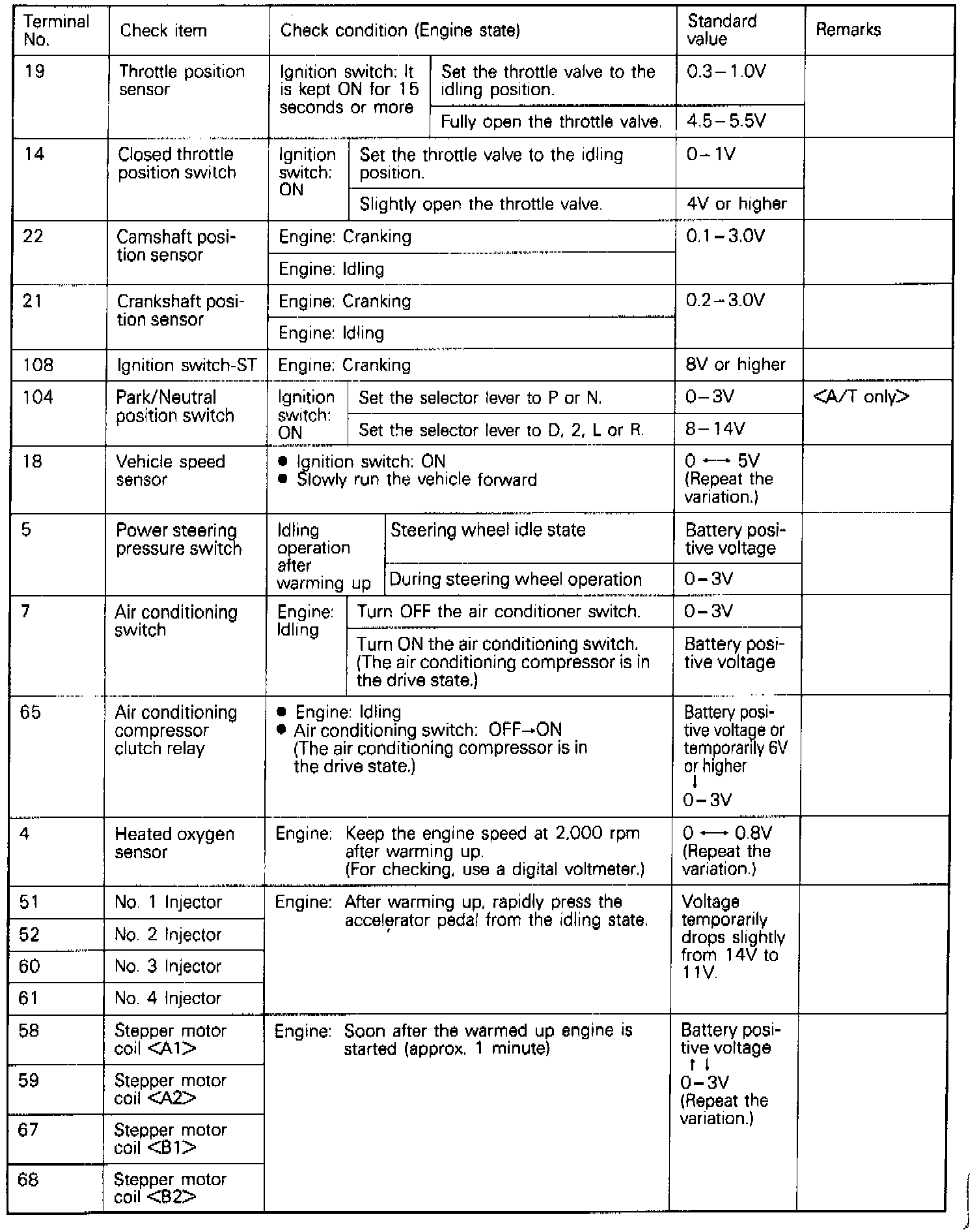

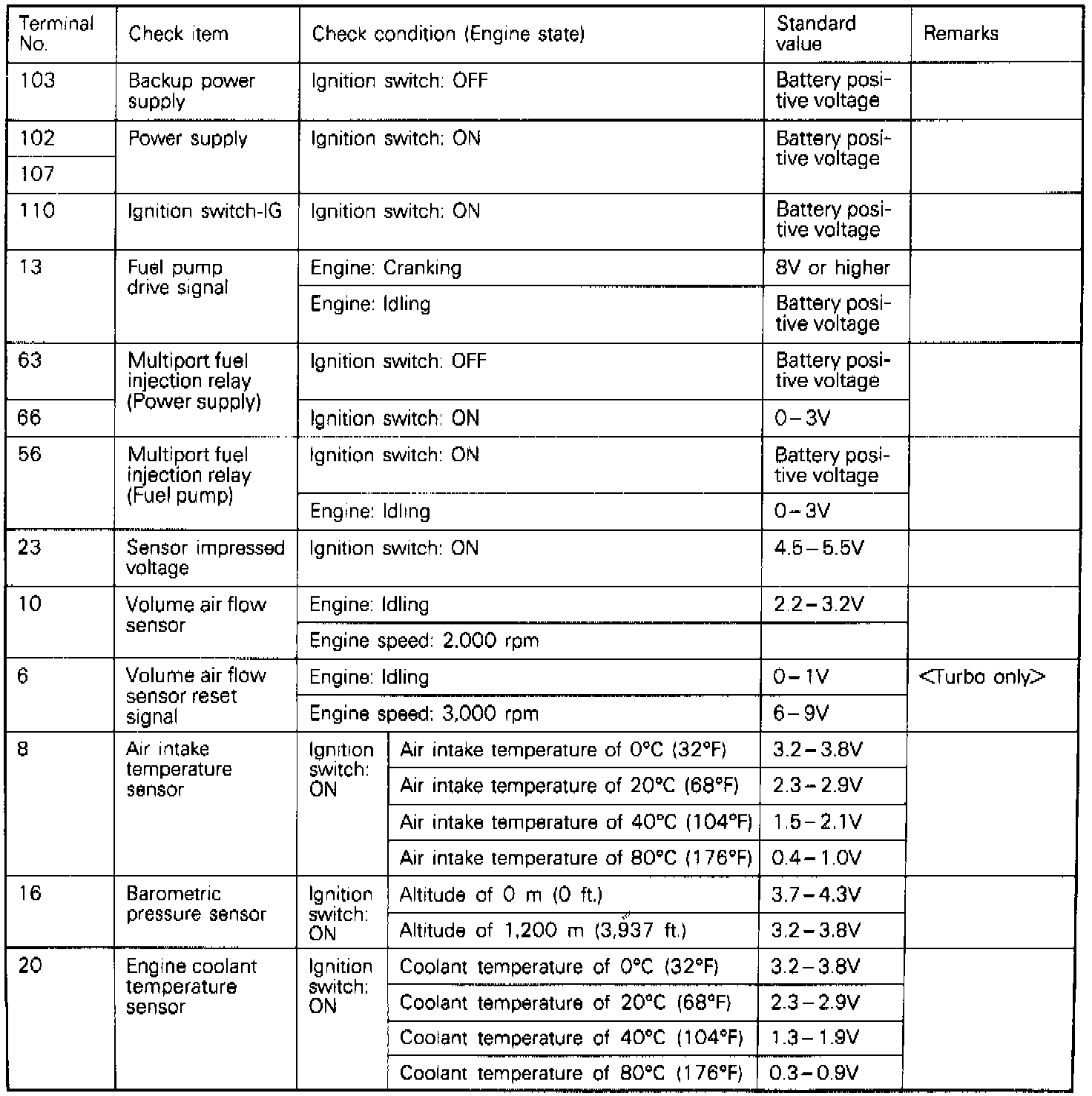

Insert the probe from the wire side of the connector, and compare the measured voltage to the corresponding pin on the chart.
Note:
^ Measure voltages with engine control module connectors connected.

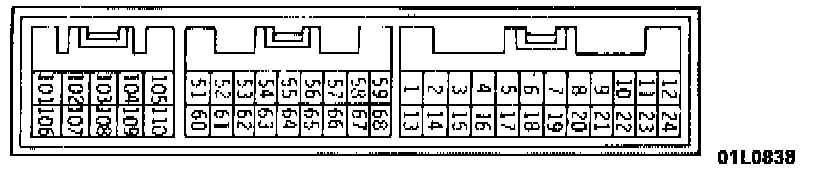

^ Use the ground pin (terminal # 106) as the ground for the voltmeter.
If voltage measured differs from that listed on the chart, check the corresponding sensor, actuator, or related electrical circuit. After repairs have been completed, recheck voltmeter readings to confirm that the repair has corrected the problem.
