1992 Eagle Talon Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Ignition Coil Resistance

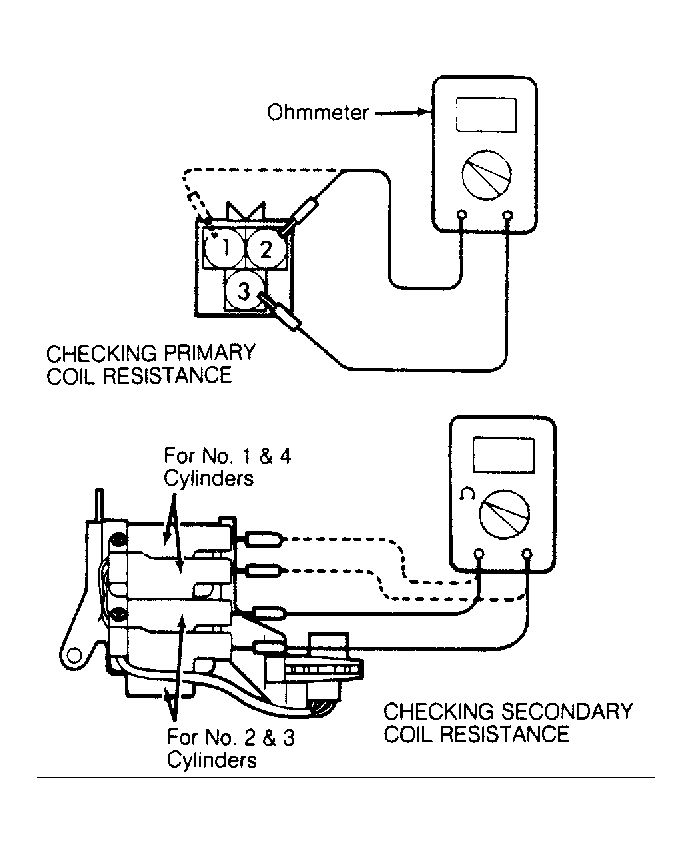

- Disconnect ignition coil connector. Measure primary coil resistance between ignition coil terminals No. 1 and 3. Also measure resistance between ignition coil connector terminals No. 2 and 3. See Fig 1. Primary resistance should be .70-.86 ohms at 68°F (20°C).
- Measure secondary coil resistance between high voltage tower terminals for No. 1 and No. 4 cylinders. See Fig 1. Secondary resistance should be 11,300-15,300 ohms. Replace ignition coil if it does not test as described.
