Blower Motor Resistor Test

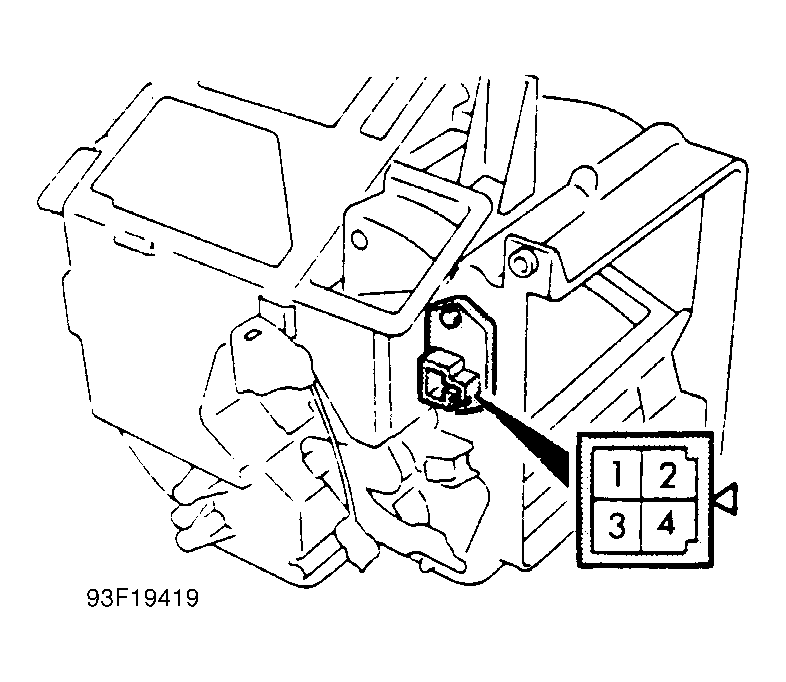

Disconnect harness connector from resistor terminals. See Fig 1. Using an ohmmeter, check resistance between terminals indicated in BLOWER MOTOR RESISTOR SPECIFICATIONS table. If resistance is not as specified, replace resistor.
| Terminal Nos. | Resistance (Ohms) |
|---|---|
| 1-2 | .31 |
| 1-3 | .87 |
| 1-4 | 1.83 |
