1992 Eagle Summit Wagon Base, 1.8 D, StandardFACTORY OEM SERVICE PROCEDURE
Power Transistor (All Others)

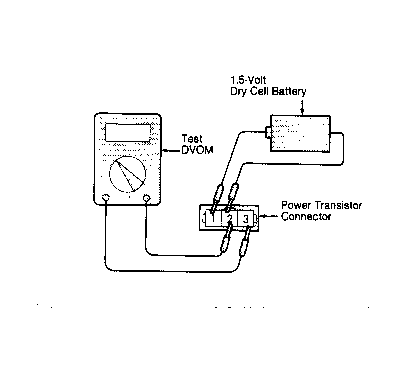

- Disconnect power transistor connector. Using a 1.5-volt dry cell battery, connect negative end of 1.5-volt battery to terminal No. 2 of power transistor and positive end of 1.5-volt battery to power transistor terminal No. 1. See Fig 1 .
- Using an analog ohmmeter, check for continuity between terminals No. 2 and 3 of power transistor. Continuity should exist. With positive end of 1.5-volt battery disconnected, no continuity should exist. Replace power transistor if it does not test as specified.
