1992 Eagle Premier ESFACTORY OEM SERVICE PROCEDURE
Connector Identification
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | See Fig. |
|---|---|
| A/C Control Module | Fig 2 |
| Automatic Idle Speed Motor | Fig 3 |
| Camshaft Position Sensor | Fig 4 |
| Charge Temperature Sensor | Fig 5 |
| Coolant Temperature Sensor | Fig 6 |
| Crankshaft Position Sensor | Fig 7 |
| Distance Sensor | Fig 8 |
| Distance Sensor Buffer Module | Fig 9 |
| EGR Solenoid | Fig 10 |
| Engine Diagnostic | Fig 11 |
| Fuel Injector | Fig 12 |
| Fuel Pump | Fig 13 |
| Ignition Coil | Fig 14 |
| MAP Sensor | Fig 15 |
| Oxygen Sensor | Fig 16 |

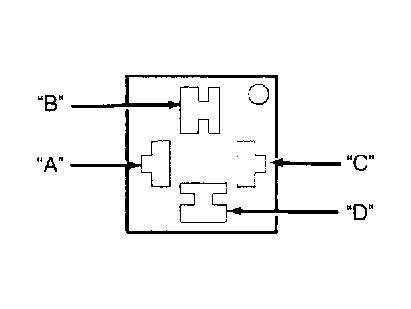

| Relays | Fig 1 |
| SBEC | Fig 17 |
| Throttle Position Sensor | Fig 18 |
