1990 Eagle Talon FWD L4-1997cc 2.0L DOHCFACTORY OEM SERVICE PROCEDURE
Mirrors: Testing and Inspection

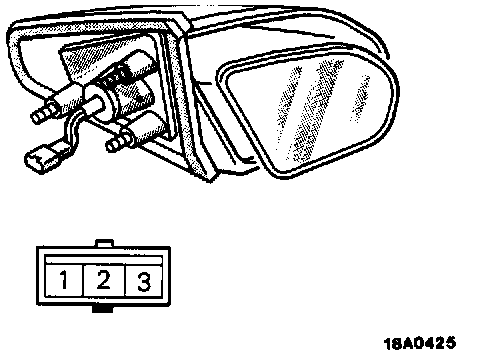

ELECTRIC REMOTE CONTROLLED MIRROR ASSEMBLY INSPECTION

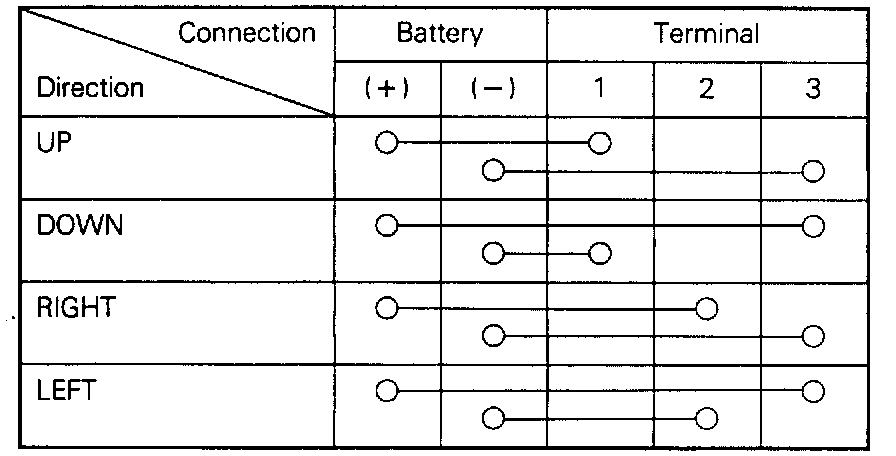

Check to be sure that the mirror moves as described in the table below when each terminal is connected to the battery.
