1990 Eagle Talon Base, Automatic
Fuel Rails: Installation
1990 Eagle Talon Base, AutomaticSECTION Installation

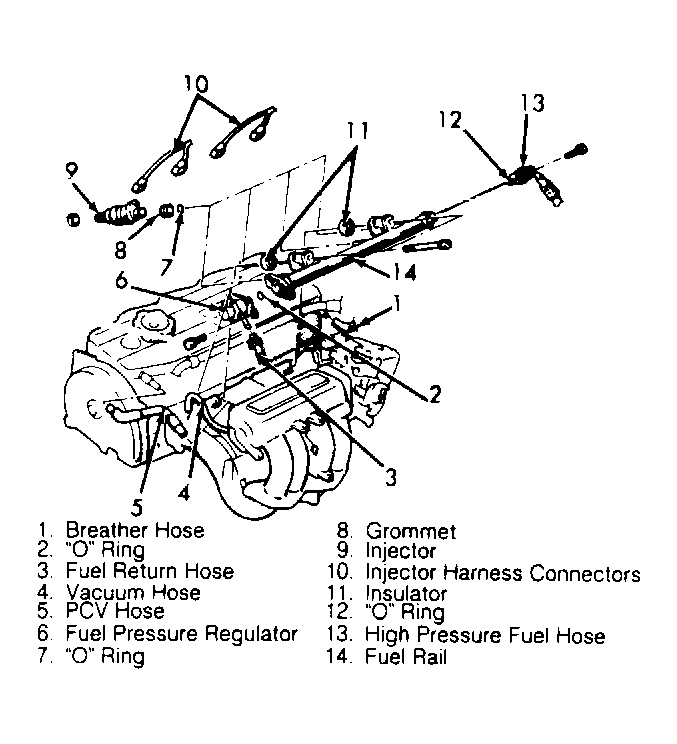

- To install, reverse removal procedure using new gaskets and insulators for injectors. Ensure injector holes are clean.
- Lubricate injector and fuel line "O" rings with engine oil prior to installation. Install injector until firmly seated in port. Check for leaks. Torque all bolts to specification. See TORQUE SPECIFICATIONS in this article.
