1990 Eagle Talon Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Ground No. 3 | Right Front Corner Of Engine Compartment, On Fender |
| Body Ground No. 8 | Behind Left Kick Panel |
| Circuit Breaker | Built into Power Window Motor |

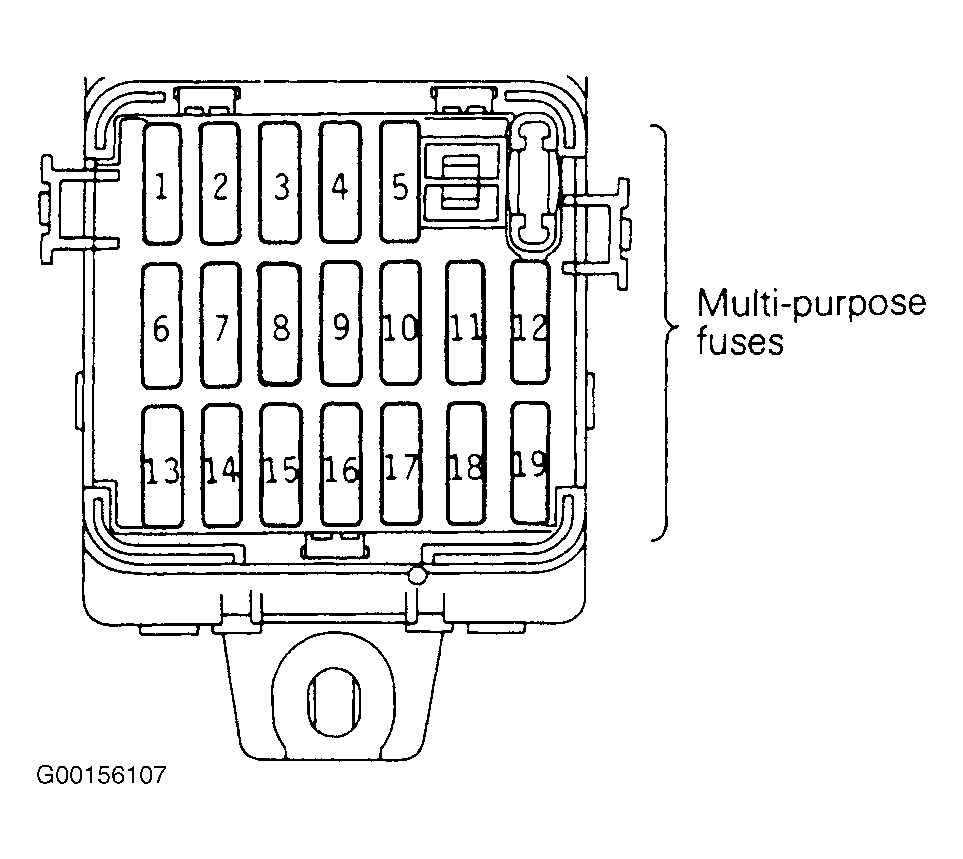

| Power Windows 10 Amp Fuse | Inside Junction Block Above Left Kick Panel |
| One Touch Down Circuit | Inside Master Switch |
| Power Window Motor | Inside Respective Door |
| Power Window Master Control Switch | Drivers Door Armrest |
| Power Window Sub-Switch | Passenger Door Armrest |
| Power Window Relay | Engine Compartment In Front Of Right Shock Tower See Fig 2 . |
