AUTOMATIC SEAT BELT COMPONENT LOCATIONS

Application

⁽¹⁾ Symbol/Location

Automatic Seat Belt Control Unit

Fig 8 "G"

Automatic Seat Belt Motor (2 Door)

Fig 4 "C"

Automatic Seat Belt Motor (4 Door)

Fig 5 "C"

Automatic Seat Belt Motor Relay (2 Door)

Fig 4 "D"

Automatic Seat Belt Motor Relay (4 Door)

Fig 5 "D"

Buckle Switch

Fig 7 "F"

Buzzer

Fig 11 "K"

Door Latch Switch

Fig 3 "B"

Fasten Switch

Fig 2 "A"

Fusible Link No. 6 (Green, 40A)

In Engine Compartment Relay Box

Key Reminder Switch

Fig 9 "I"

Outer Switch

Fig 8 "H"

Passenger Compartment Junction Block (Fuse Block)

Fig 12

Seat Belt Warning Light

Fig 10 "J"

Release Switch

Fig 6 "E"

Body Ground 6

Behind Instrument Cluster, On Cross Body Brace

Body Ground 9

In Passenger Compartment, In Front Of Shift Lever Housing

Body Ground 11

At Base Of Left Side B Pillar, Near Seat Belt Motor

Body Ground 13 (Hatchback)

On Bottom Part Of Liftgate

Body Ground 15 (Sedan)

In Trunk, On Left Side Of Rear Panel

⁽¹⁾	To view symbols, see Fig 1 .

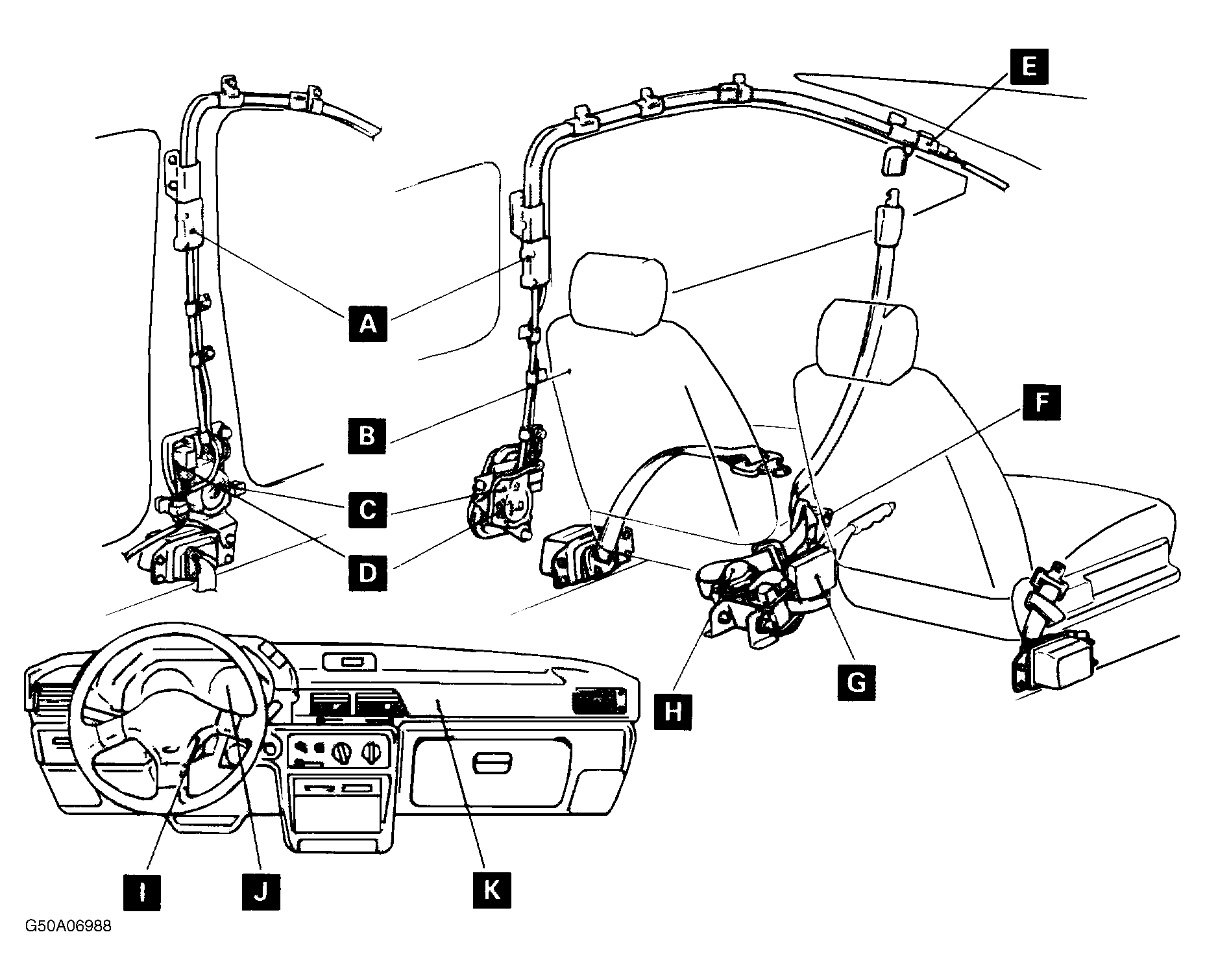

Fig 1: Automatic Seat Belt Component Locations (A-I)
