1990 Eagle Summit Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Repair and Diagnosis: Electrical: Starter: Overhaul: Disassembly
NOTE:
Procedures may vary slightly between conventional and reduction gear starters.

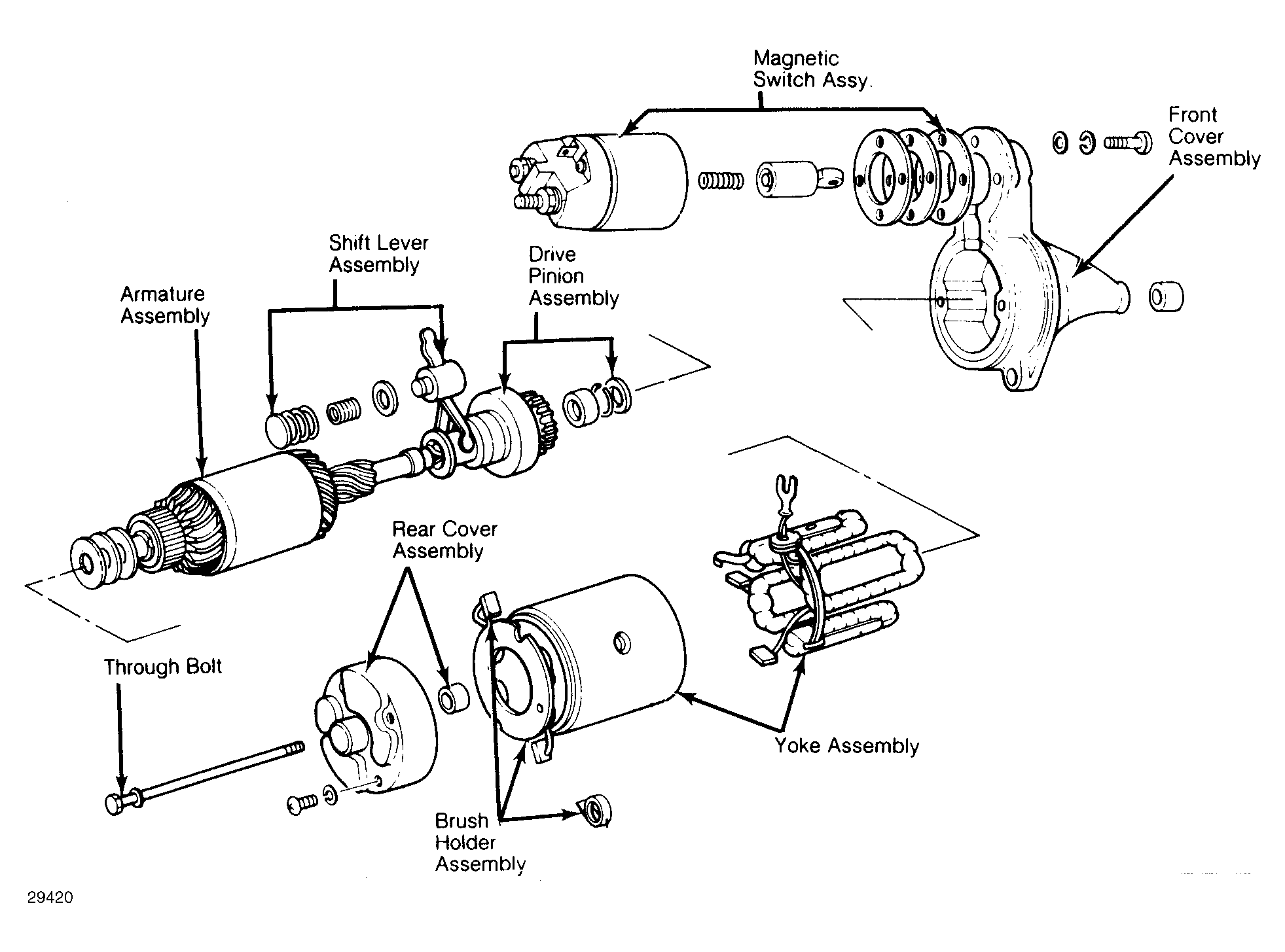

- Loosen nut securing connecting plate-to-magnetic switch "M" terminal. Remove screws securing magnetic switch and remove switch (solenoid) assembly. Remove through bolts and brush cover assembly. Tap yoke assembly loose with wooden mallet. Remove yoke, armature assembly and pinion shift lever.
- Remove pinion stop ring from end of armature shaft by pushing stop ring to clutch side. Remove snap ring and overrunning clutch assembly from armature shaft.
