1990 Eagle Premier ESFACTORY OEM SERVICE PROCEDURE
EGR Vacuum Transducer Test

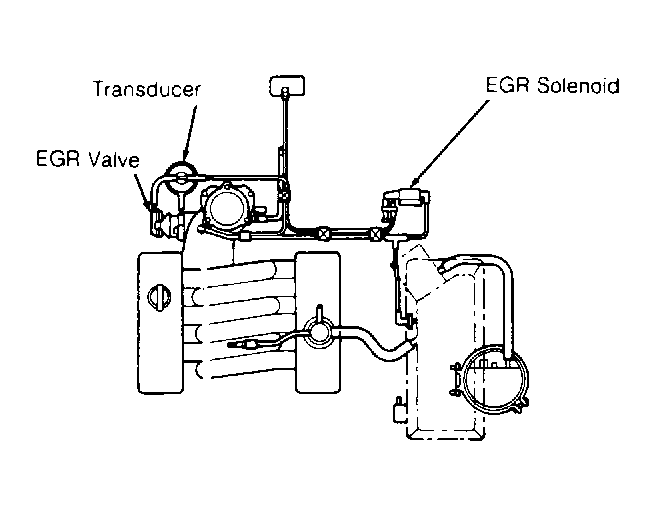

- Disconnect and plug output (EGR) side of transducer. EGR transducer is located on side of intake manifold. See Fig 1 .
- Disconnect and remove EGR vacuum transducer from vehicle. Apply 1-2 lbs. of regulated air pressure to EGR vacuum transducer backpressure port. See Fig 2 . Apply at least 12 in. Hg of vacuum to input port. Replace EGR vacuum transducer if it will not hold vacuum.
