Sensor Range Charts: Introduction: Notes

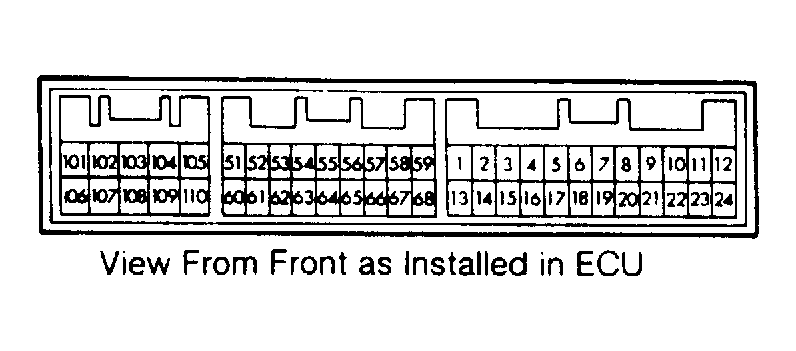

Sensor operating range information is supplied so that it can be determined if a sensor is out of calibration. A sensor that is out of calibration may not set a trouble code; however, it may cause driveability problems. See Fig 1 .
| Application | ECU Terminals | (1) Volts | ||
|---|---|---|---|---|
| All Engines | 10 & 14 | 2.2-3.2 | ||
|
||||
| Pressure psi (kPa) | Volts | ||
|---|---|---|---|
| 12.8 (88) | 3.5 | ||
| 14.7 (101) | 4 | ||
|
|||
| Temperature °F (°C) | Resistance Ohms | ||
|---|---|---|---|
| 32 (0) | 5900 | ||
| 68 (20) | 2500 | ||
| 104 (40) | 1100 | ||
| 176 (80) | 300 | ||
|
|||
