2023 Dodge and Ram ProMaster 3500 Van CargoFACTORY OEM SERVICE PROCEDURE
Shroud, Steering Column, Upper: Removal
- Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
- Remove the lower steering column lower shroud. Refer to SHROUD, STEERING COLUMN, UPPER, REMOVAL .

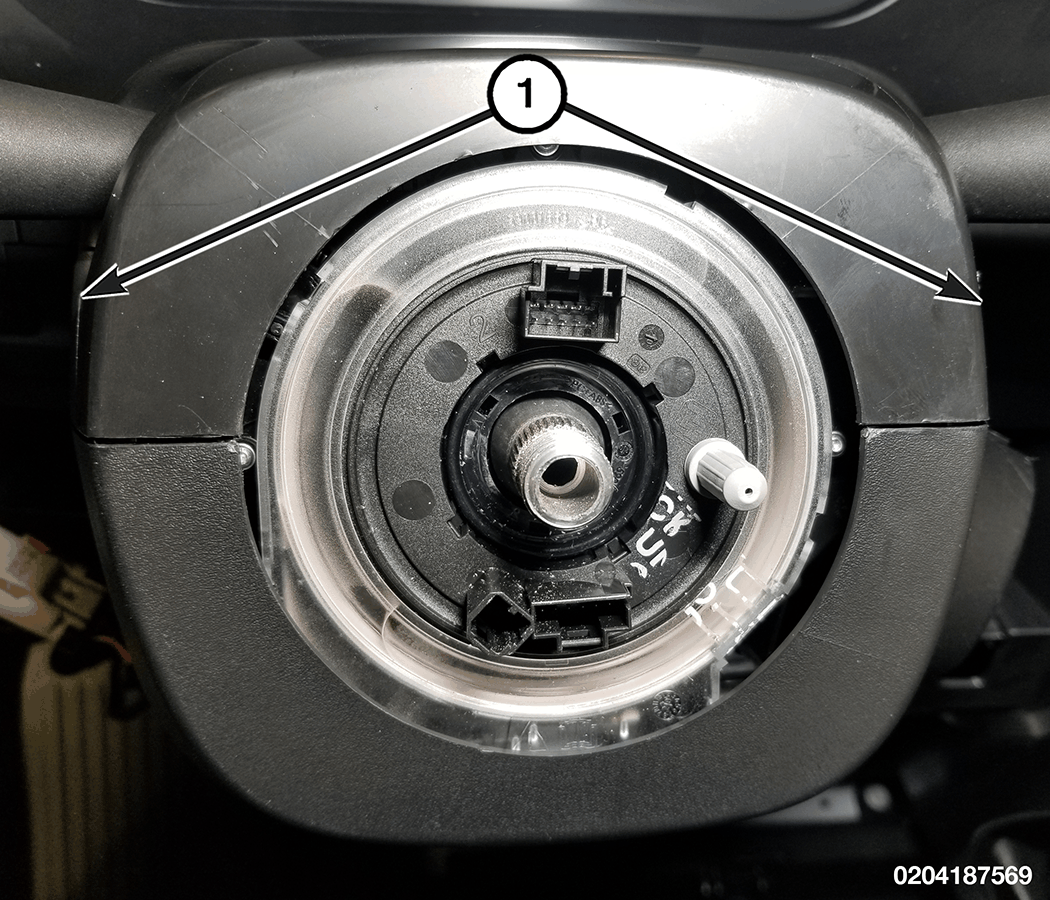

- Remove the two close out panels (1).

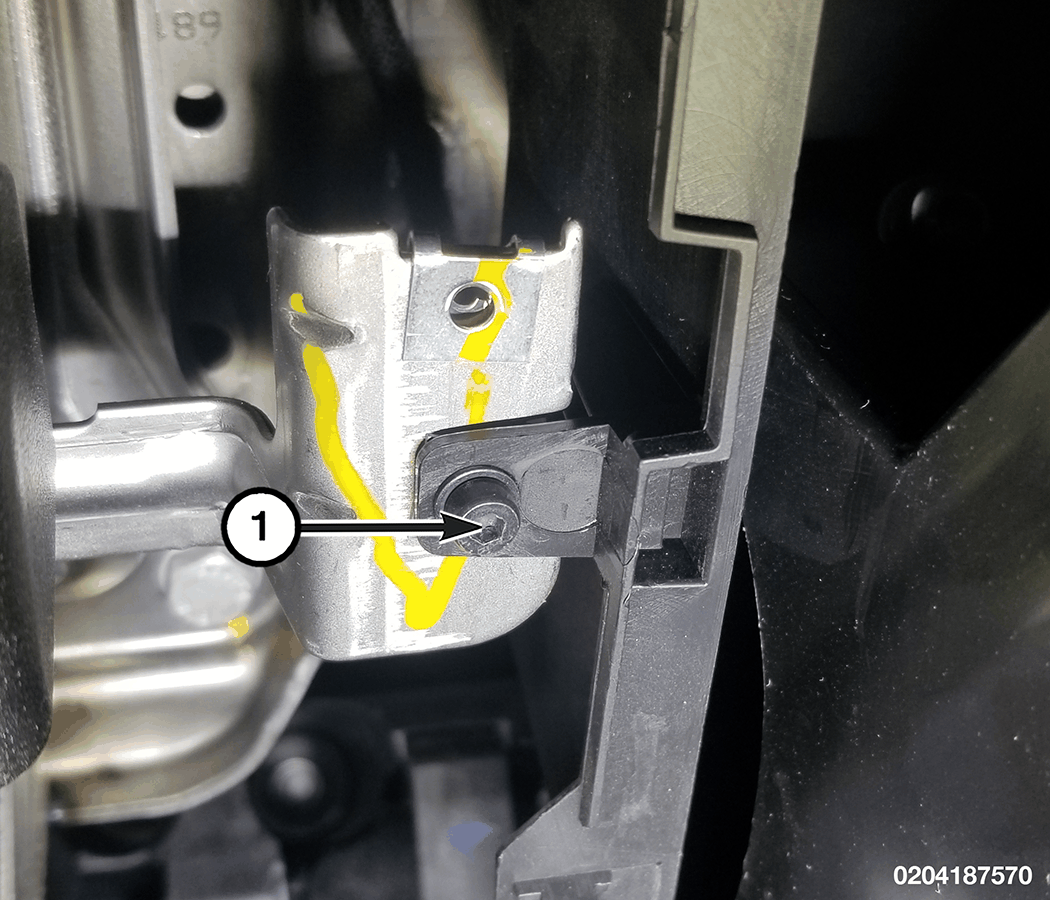

- Remove the two upper steering column shroud screws (1).

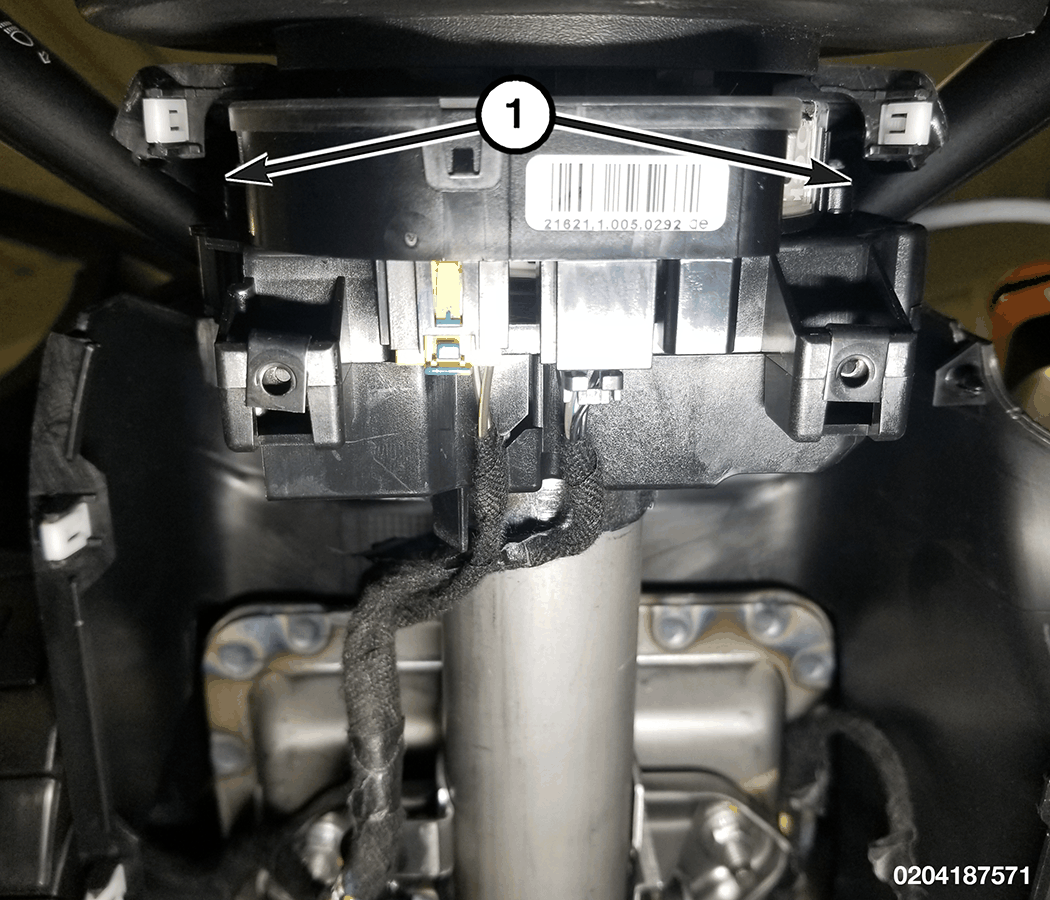

- Remove the upper steering column shroud screw (1).
- Remove the upper steering column shroud from the steering column.
