2023 Dodge and Ram Durango SXT Plus, RWDFACTORY OEM SERVICE PROCEDURE
Integrated Trailer Brake Module (ITBM)
REMOVAL
- Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
- Remove the instrument panel center closeout panel. Refer to CLOSEOUT, CENTER, REMOVAL
.

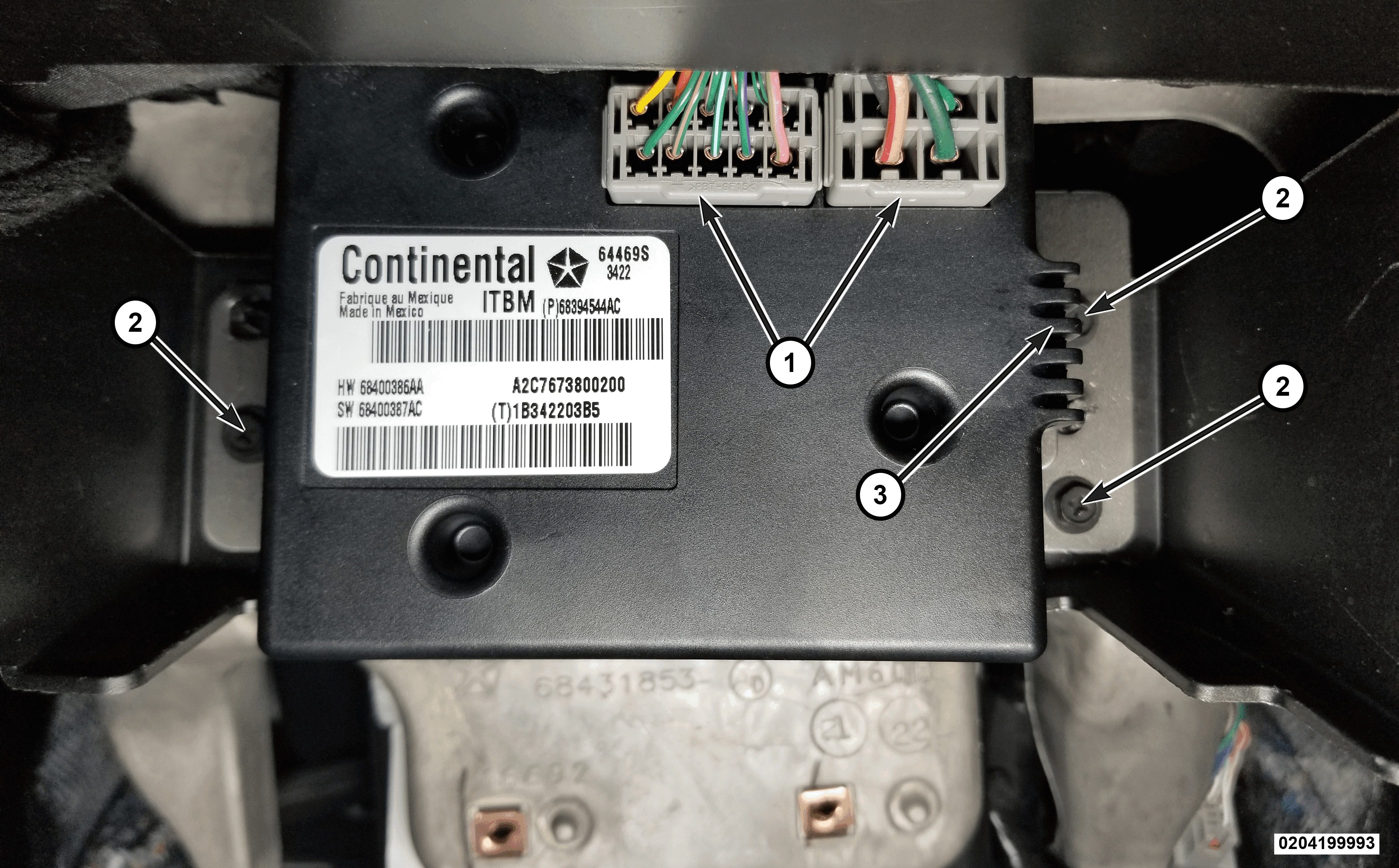

1 - Integrated Trailer Brake Module (ITBM) Wire Harness Connector 2 - Integrated Trailer Brake Module (ITBM) Bracket Screws 3 - Latch - Remove the Integrated Trailer Brake Module (ITBM) bracket screws.
- Disconnect the Integrated Trailer Brake Module (ITBM) wire harness connectors and remove the module and bracket from the vehicle.
- Release the latch on the module and separate the module from the bracket.
