2023 Dodge and Ram Durango SXT Plus, RWDFACTORY OEM SERVICE PROCEDURE
Late Model
REMOVAL
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the right instrument panel trim panel. Refer to PANEL, INSTRUMENT PANEL TRIM, CENTER, REMOVAL
.

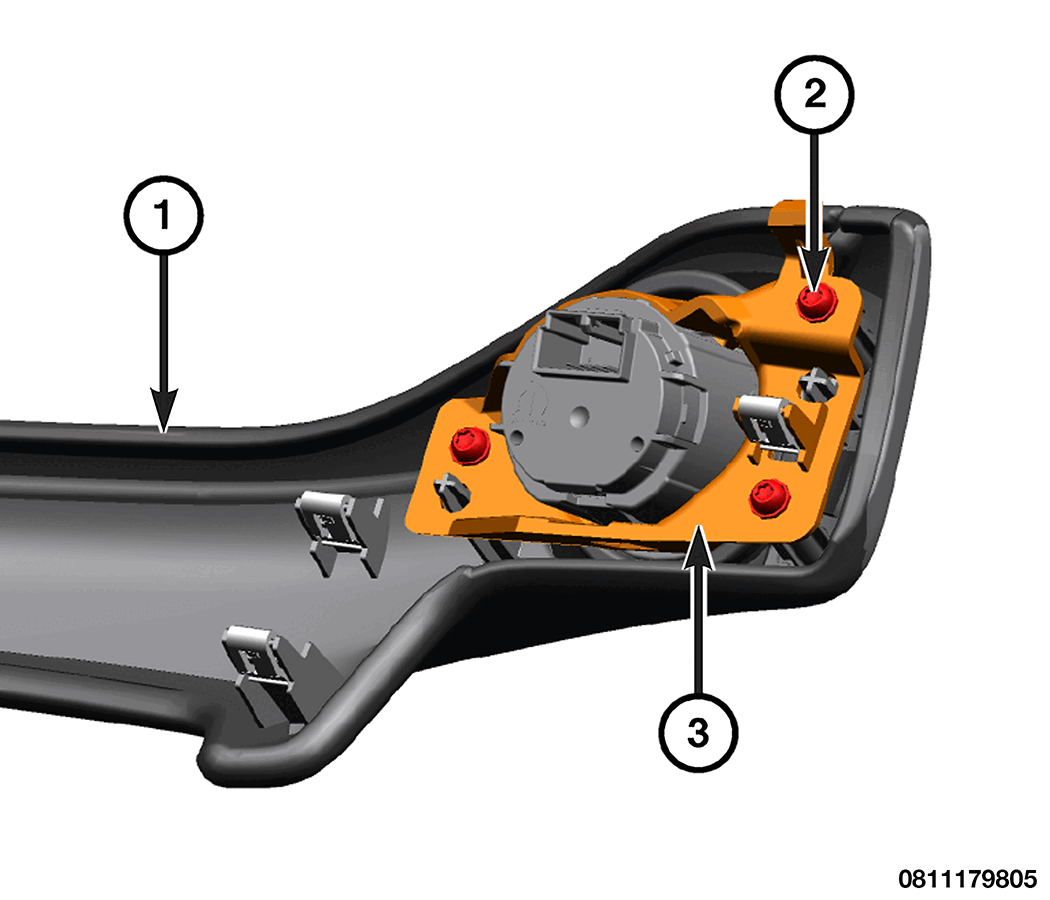

- Remove the fasteners (2) and release the Keyless Ignition Node (KIN) module bracket (3).
- Press the tabs that secure the KIN to the KIN bracket (3) to release the KIN.

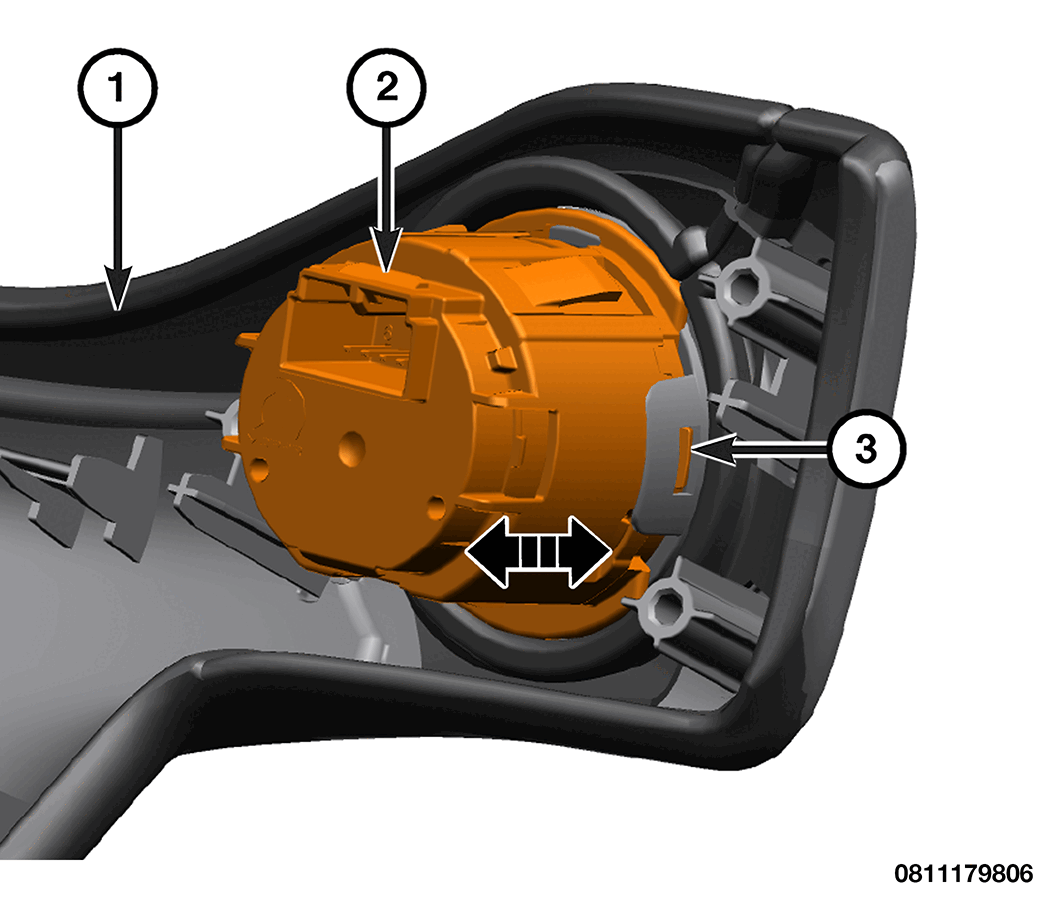

- If replacing the KIN (2), release the tab (3) on each side of the KIN and remove the bezel.
