2023 Dodge and Ram Durango SXT Plus, RWDFACTORY OEM SERVICE PROCEDURE
Module, Drivetrain Control (DTCM): Removal
- Position the left front seat to its full forward position.
- Disconnect and isolate the negative battery cable. Refer to CABLES, BATTERY, REMOVAL
.

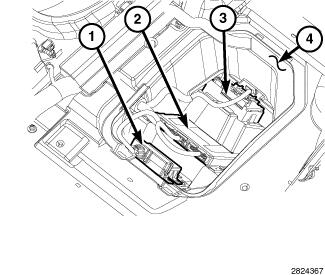

- Remove the cover panel from the electronic module tub (4) to access the DTCM (3).
- Disconnect the wire harness connector from the DTCM.
- Release the integral latches that secures the DTCM to the mounting bracket and slide the DTCM upward.
- Remove the DTCM from the vehicle.
