2021 Dodge and Ram ProMaster 2500FACTORY OEM SERVICE PROCEDURE
Sensor, Coolant Temperature: Installation
- Apply MOPAR® thread sealant with PFTE to sensor threads.

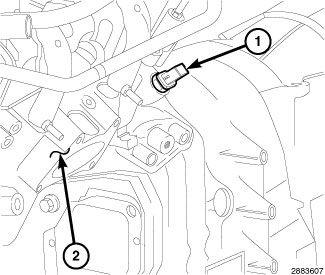

- Install the coolant temperature sensor (1) into the cylinder head and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONSÂ .
- Connect the coolant temperature sensor wire harness connector.
- Remove support and lower the vehicle.
- Fill the cooling system. Refer to STANDARD PROCEDUREÂ .
- Connect the negative battery cable.
