Switch, Ignition: Installation
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

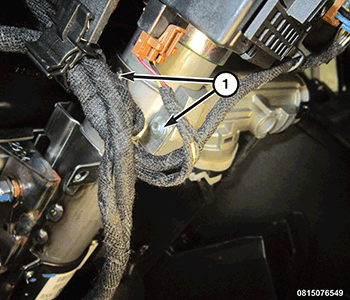

- Install the ignition lock cylinder housing and the NEW
ignition lock cylinder housing bolts (1) to the steering column.

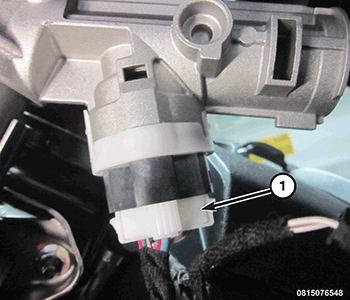

- Connect the wire harness connector (1) to the ignition cylinder housing switch.
- Insert the key into the ignition lock cylinder and turn the key to the RUN position.
- Insert the ignition lock cylinder into the ignition lock cylinder housing. Turn the key to the OFF position and remove the key from the cylinder.
- Install the upper and lower shrouds to the steering column. Refer to COLUMN, INSTALLATION .
- Connect the negative cable to the battery.
- If keys are replaced, perform the BCM key programming routine outlined at. Refer to STANDARD PROCEDURE .
