Module, Fuel Pump: Installation
- Install new fuel pump module O-ring to fuel tank.CAUTION:
The fuel pump module must be installed correctly to prevent damage to the fuel pump module.

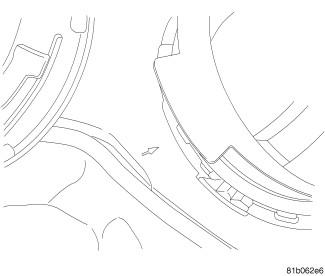

- Line up the fuel pump module mounting tab to the arrow on the fuel tank.
- Install fuel pump module lock ring.

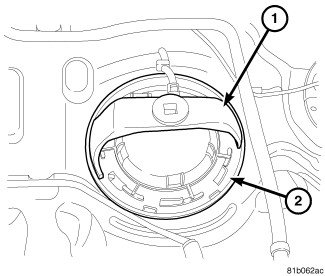

- Install fuel pump module lock ring tool (special tool #9340, SAE Fuel Pump Lock Ring Wrench) and turn clockwise until the fuel pump module lock ring (1) is seated and locked to fuel tank.
- Connect the line quick connects to the fuel pump module.

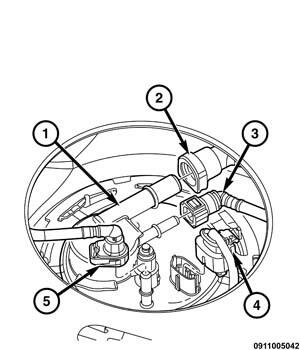

- Connect electrical connector (4) to fuel pump module.

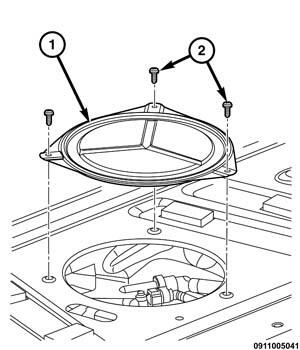

- Install the fuel pump access cover (1). Hand tighten the cover screws (2).

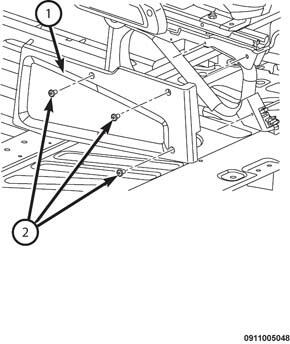

- Install the drivers seat frame cover (1). Hand tighten the screws (2).
