2021 Dodge and Ram ProMaster 1500FACTORY OEM SERVICE PROCEDURE
Capacitor, Ignition: Installation

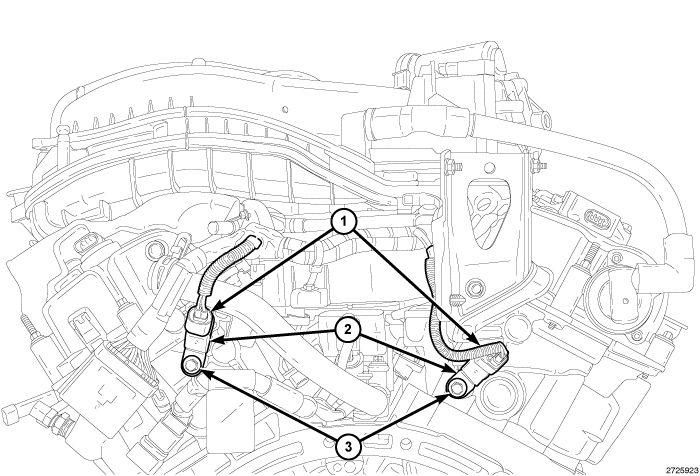

- Install the ignition coil capacitor (2) and bolt (3). Tighten the bolt to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
- Connect the electrical connector (1).
- Connect the negative battery cable and tighten nut to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
