2018 Dodge and Ram ProMaster 1500FACTORY OEM SERVICE PROCEDURE
Module, Fuel Pump: Installation
CAUTION:
Whenever the fuel pump module is serviced, the rubber O-ring seal must be replaced.
- Using a new O-ring seal (gasket), position fuel pump module (9) into opening in fuel tank.
- Position lock ring (8) over top of fuel pump module.
- Install Lock ring Remover/Installer Tool (special tool #9340, SAE Fuel Pump Lock Ring Wrench) to lock ring.
- Install 1/2 inch drive breaker into Lock ring Remover/Installer (special tool #9340, SAE Fuel Pump Lock Ring Wrench).
- Tighten lock ring (clockwise) until all notches have engaged.

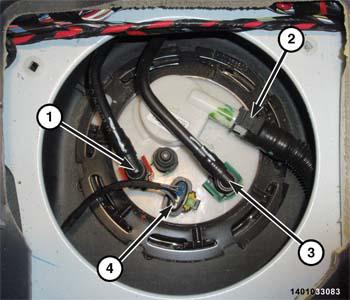

- Connect the return line (3).
- Connect the supply line (1).
- Connect the vent line (2).
- Connect the fuel pump module wire harness connector (4).

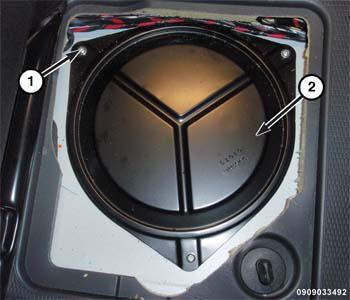

- Install the fuel pump module cover (2) and securely tighten screws (1).

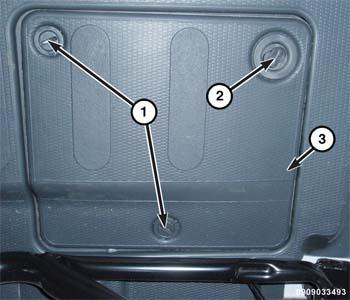

- Install the cover (3) and securely tighten fasteners (1, 2).
- Connect the negative battery cable.
