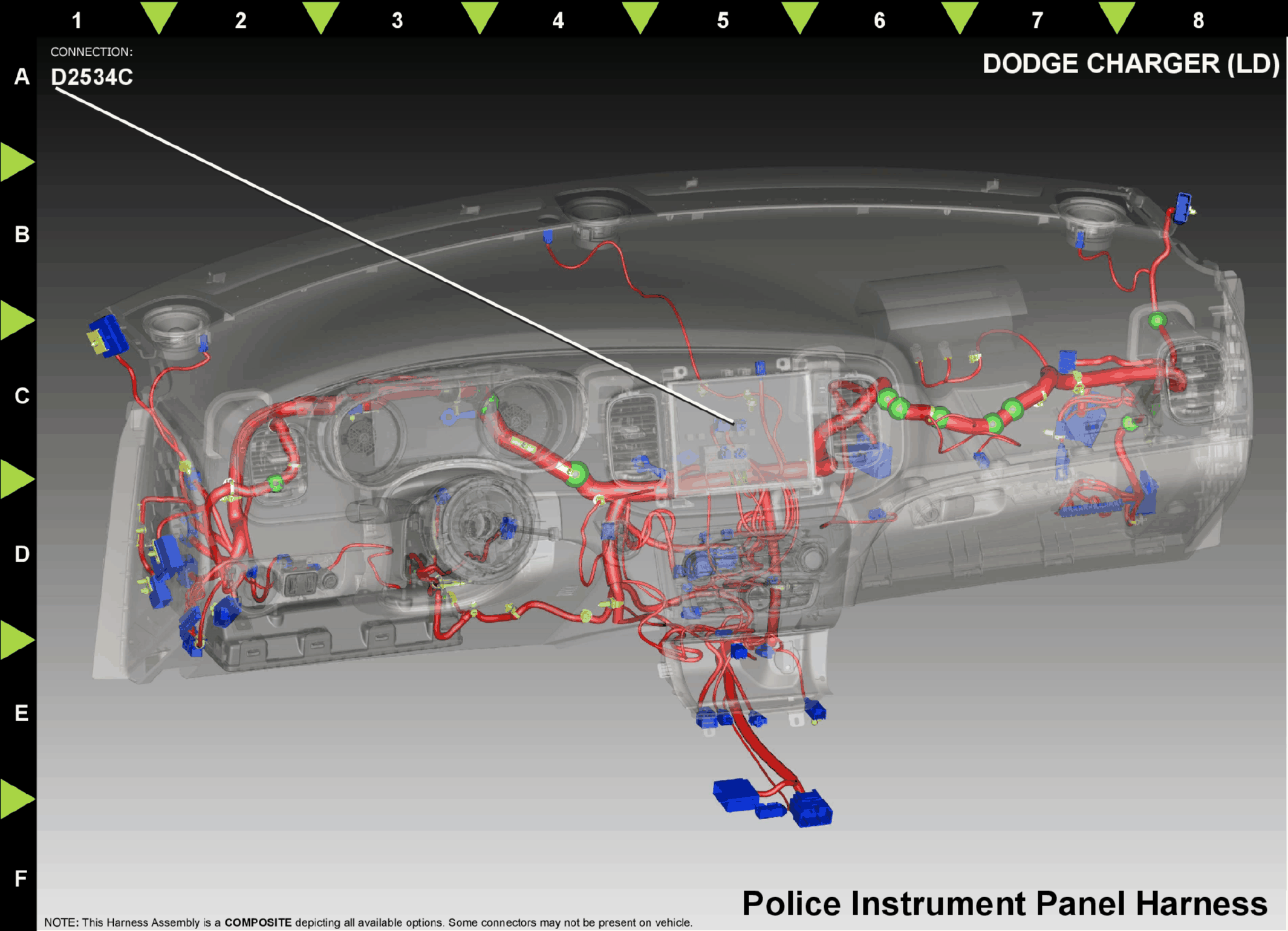

Module-Integrated Center Stack C3 (D2534C)
Harness-Family: IP
Color: BLACK
Gender: FEMALE
Part Number: 13850820
Part Description: Not Available
Connector No: D2534C
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: 1
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | J103 | BK | 1.0 | USB DATA TO RADIO | N/A | ||
|
|||||||
