2016 Dodge and Ram Charger R/TFACTORY OEM SERVICE PROCEDURE
Module And Bracket
- Disconnect and isolate the battery negative cable.
- Raise and support the vehicle.
- Remove the front fascia from the vehicle. Refer to FASCIA, FRONT, REMOVAL .

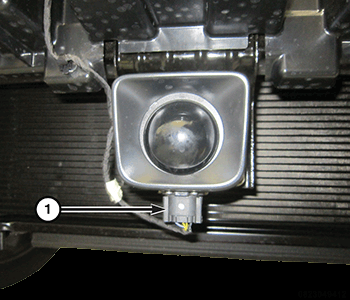

- Disconnect the wiring harness connector (1) from the Adaptive Cruise Control (ACC) module.
- Remove the energy absorber from the vehicle.

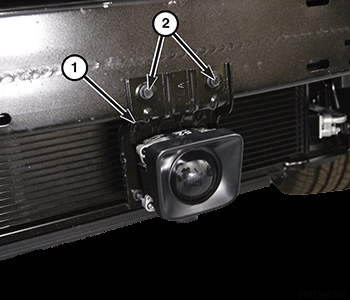

- Remove the two screws (2) that secure the bracket (1) to the front bumper support bar.
- Remove the mounting bracket from the bumper support bar.
