Map Sensor: Description

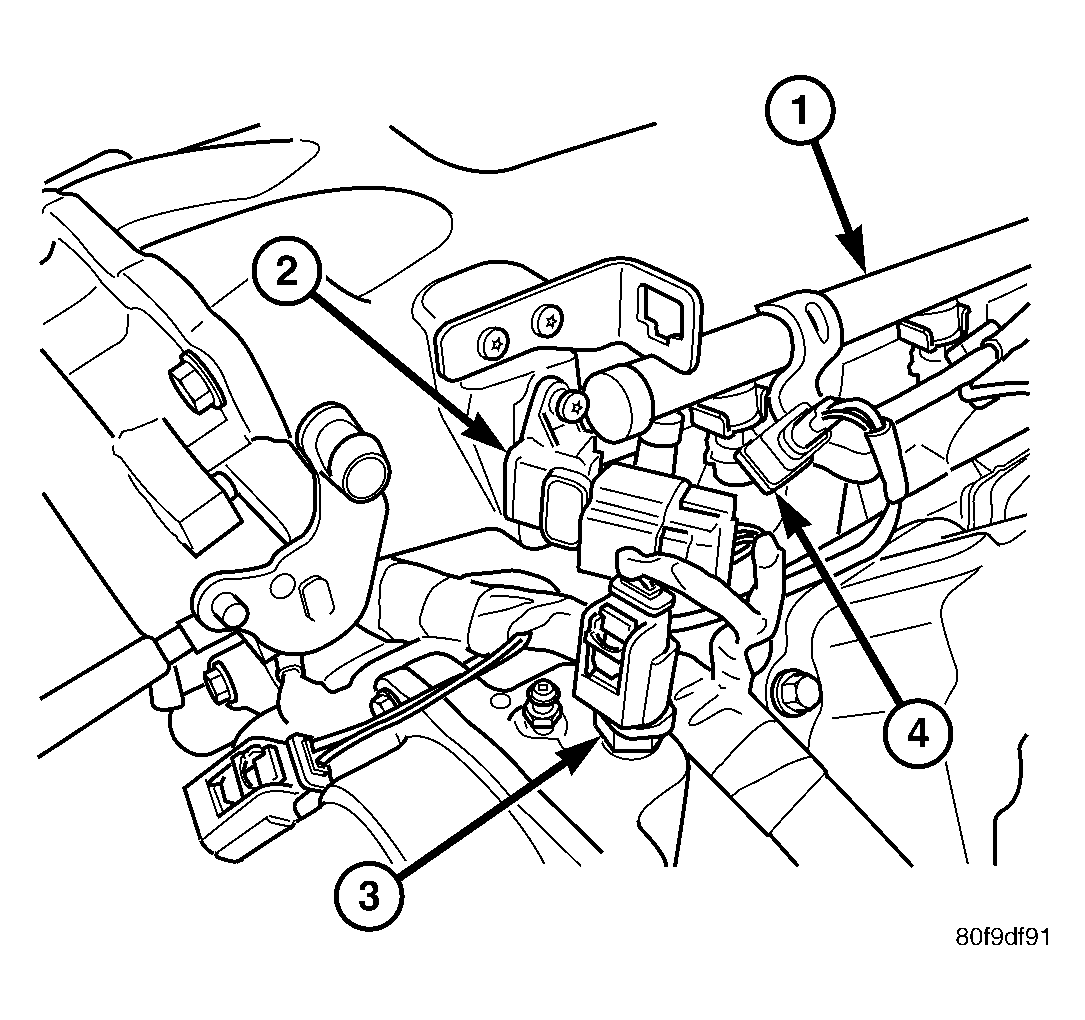

The MAP sensor mounts to the drivers side intake manifold plenum. See Fig 1.
| 1 - Fuel Rail |
| 2 - MAP Sensor |
| 3 - Coolant Temperature Sensor |
| 4 - Fuel Injector |
