2006 Dodge and Ram Sprinter 2500 L5-2.7L DSL TurboFACTORY OEM SERVICE PROCEDURE

Disassembly and Assembly

DISASSEMBLY - SINGLE REAR WHEEL

Factory service manual diagram

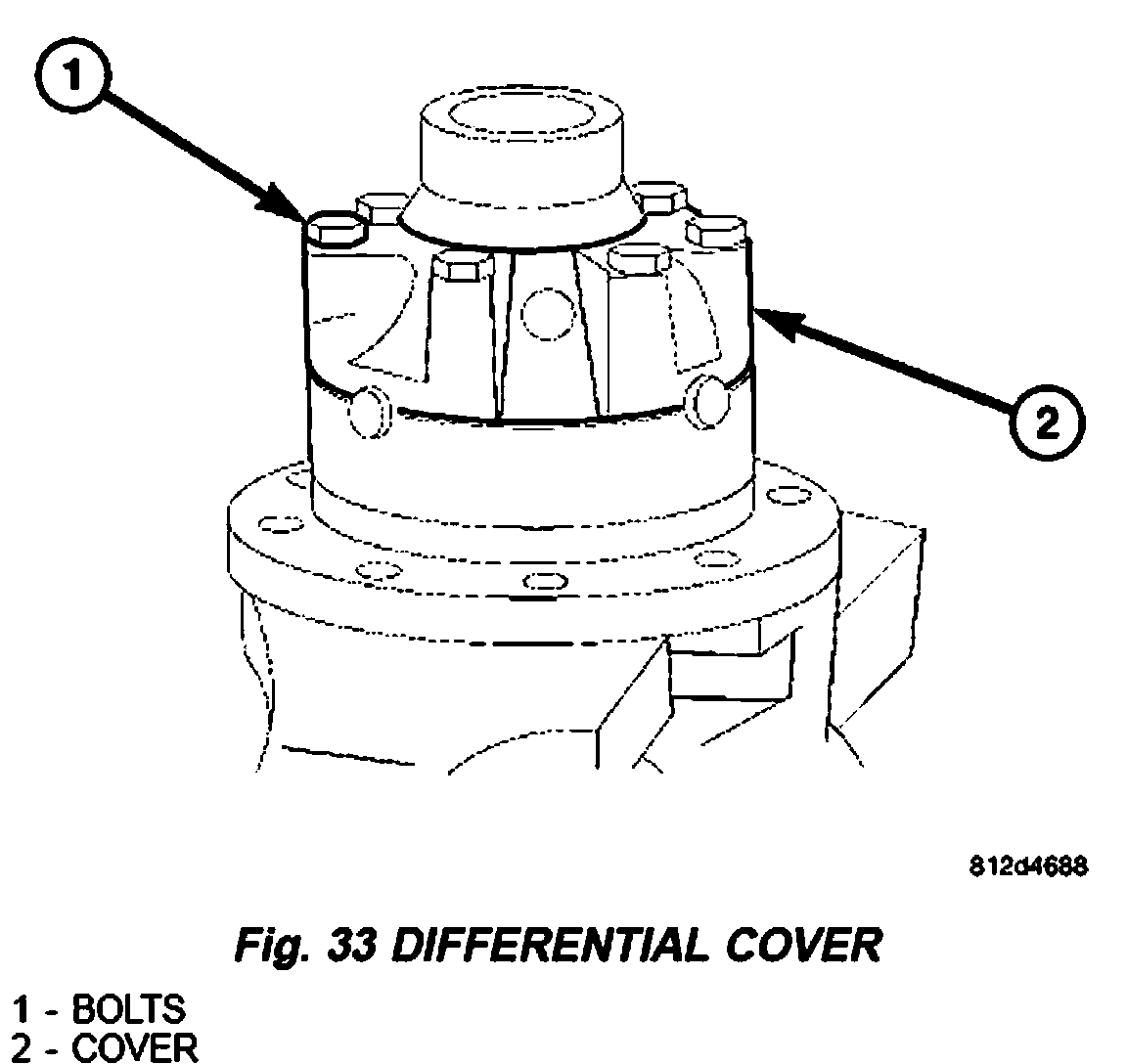

1. Remove differential cover bolts and remove cover (Fig. 33).

Factory service manual diagram

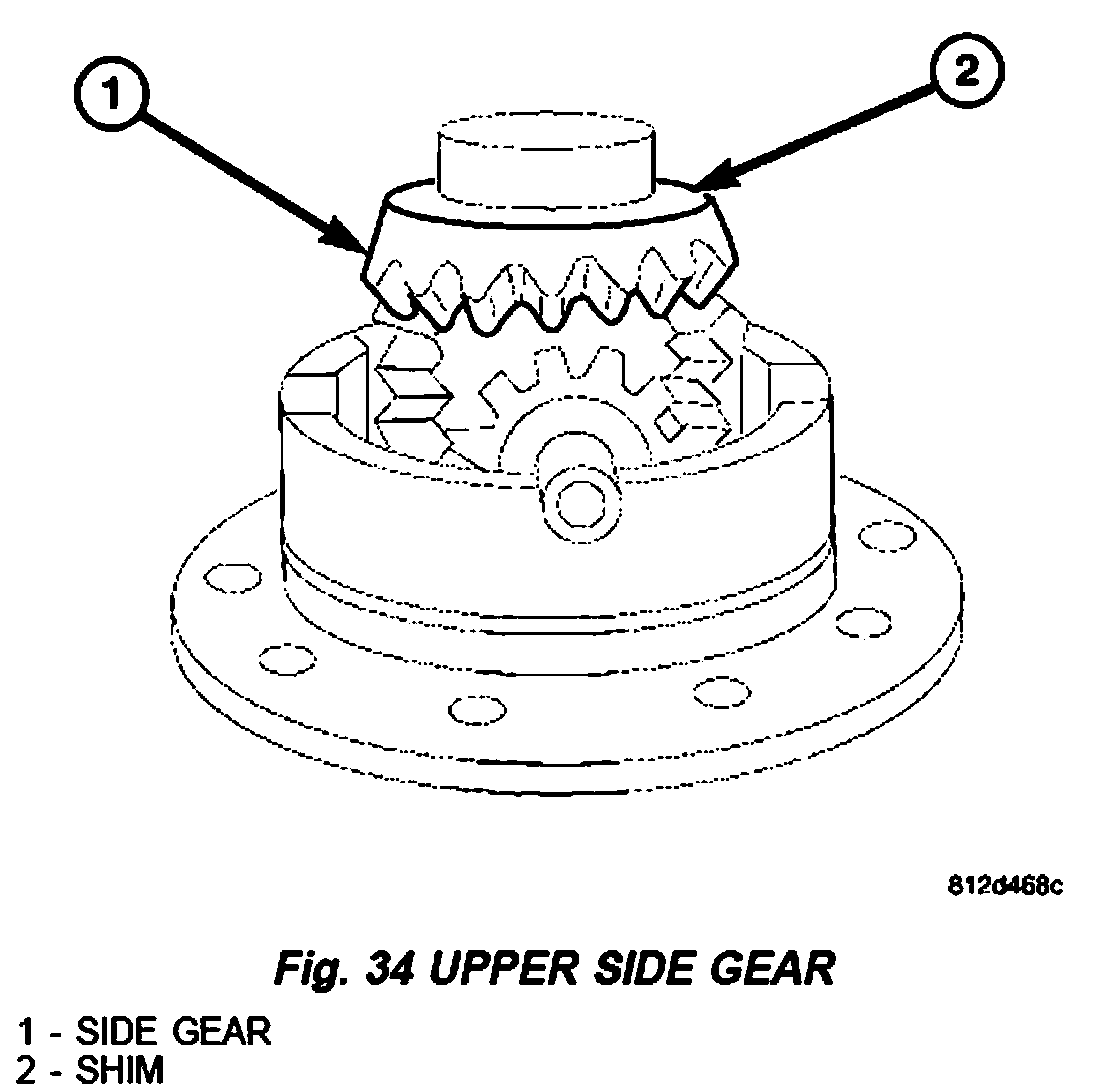

2. Remove upper differential side gear (1) and shim (2) (Fig. 34).

Factory service manual diagram




3. Remove first set of differential pinion gears (1), spherical washers and mate shaft (2) (Fig. 35).

Factory service manual diagram

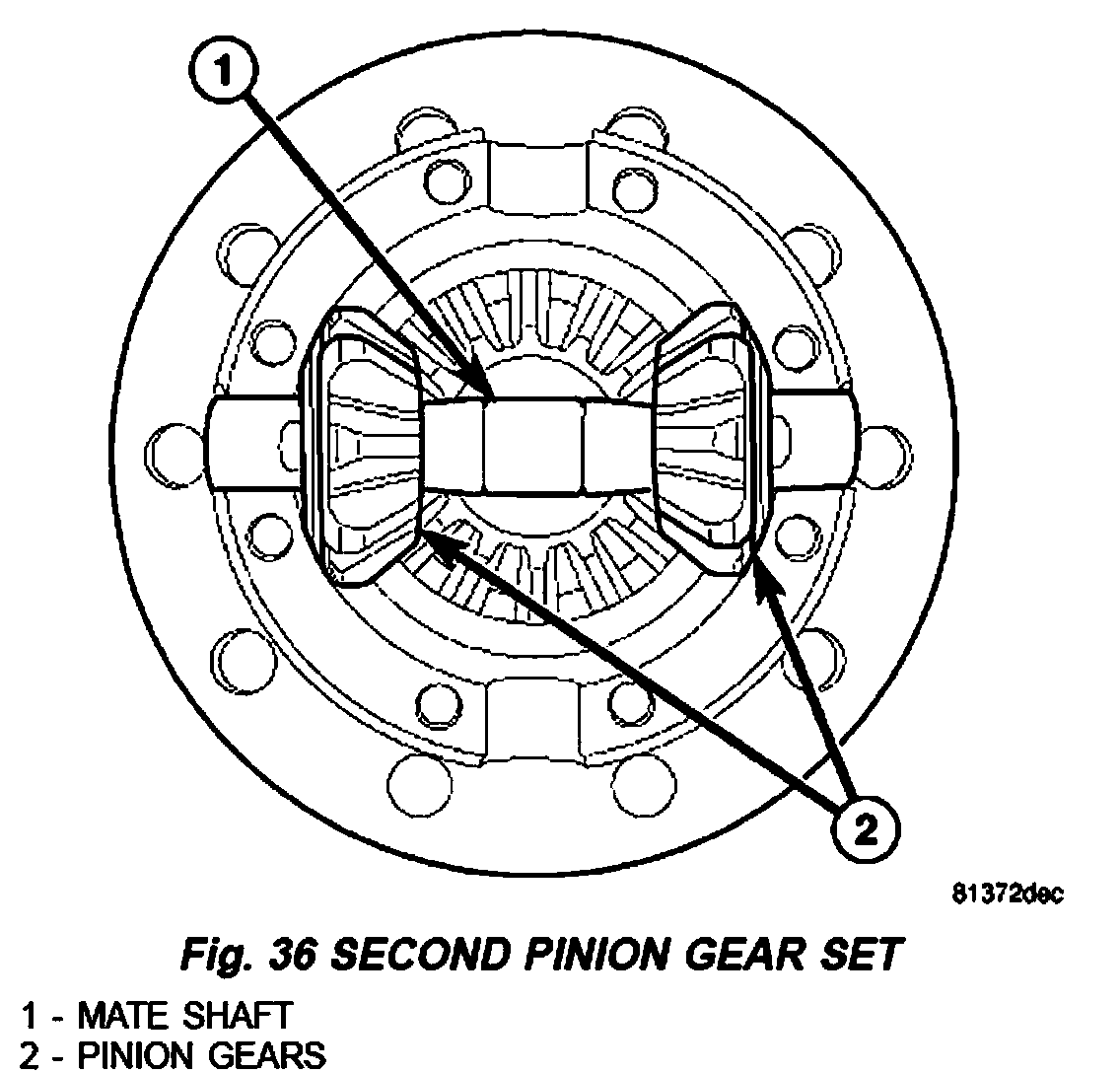

4. Remove second set of differential pinion gears (2), spherical washers and mate shaft (1) (Fig. 36).

Factory service manual diagram

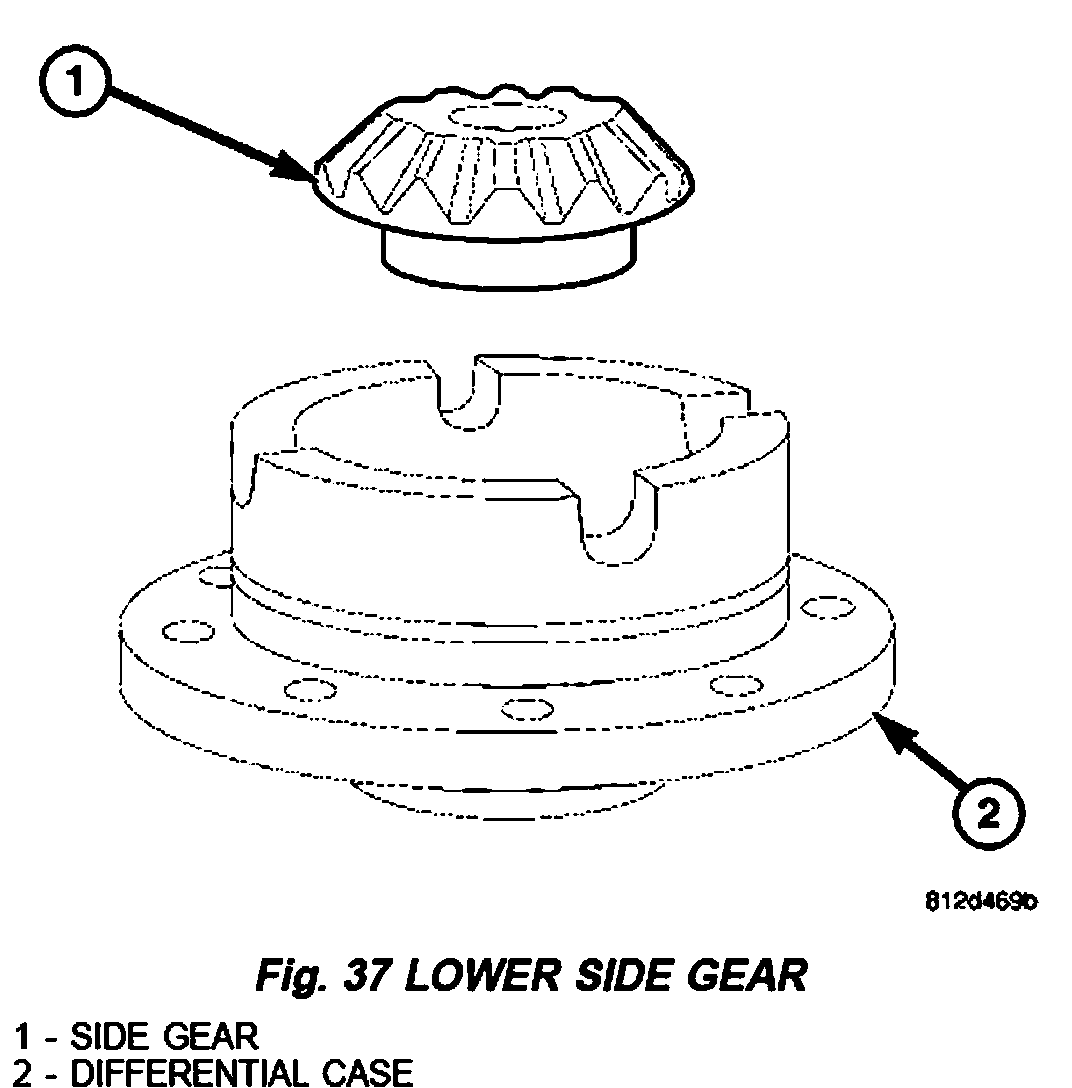

5. Remove lower differential side gear (1) and shim (Fig. 37).

DISASSEMBLY - DUAL REAR WHEEL

Factory service manual diagram

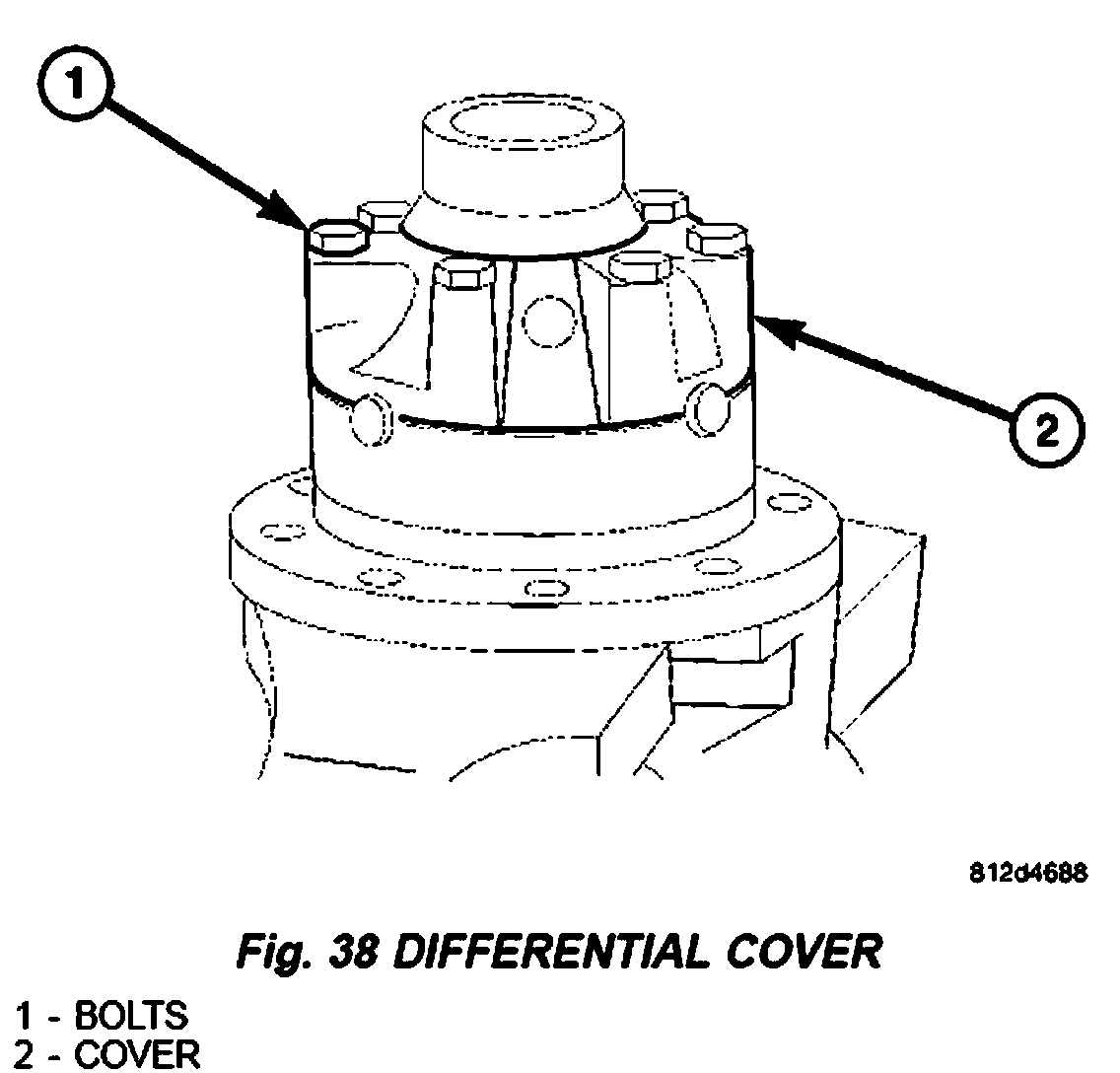

1. Remove differential cover bolts and remove cover (Fig. 38).

Factory service manual diagram

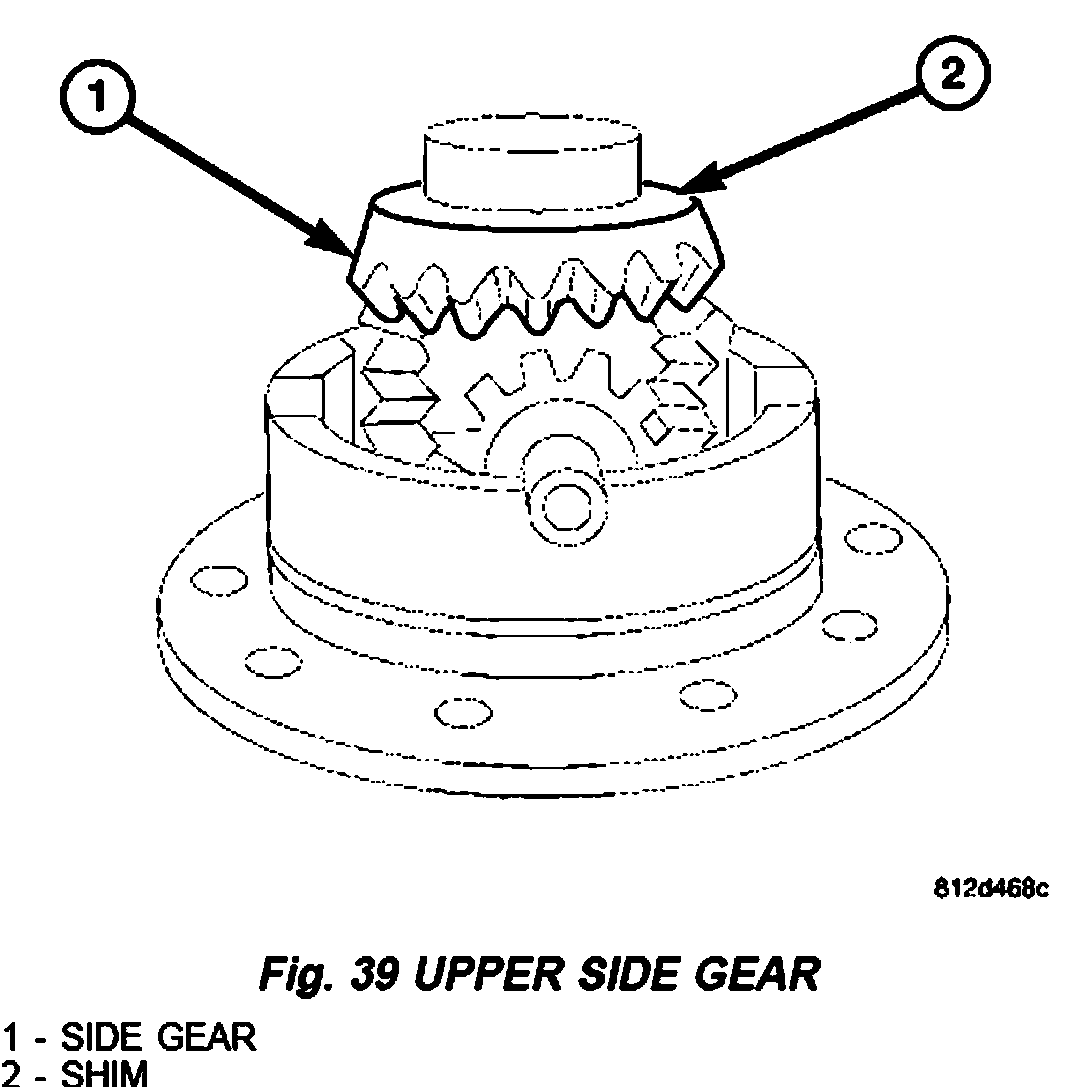

2. Remove upper differential side gear (1) and shim (2) (Fig. 39).

Factory service manual diagram

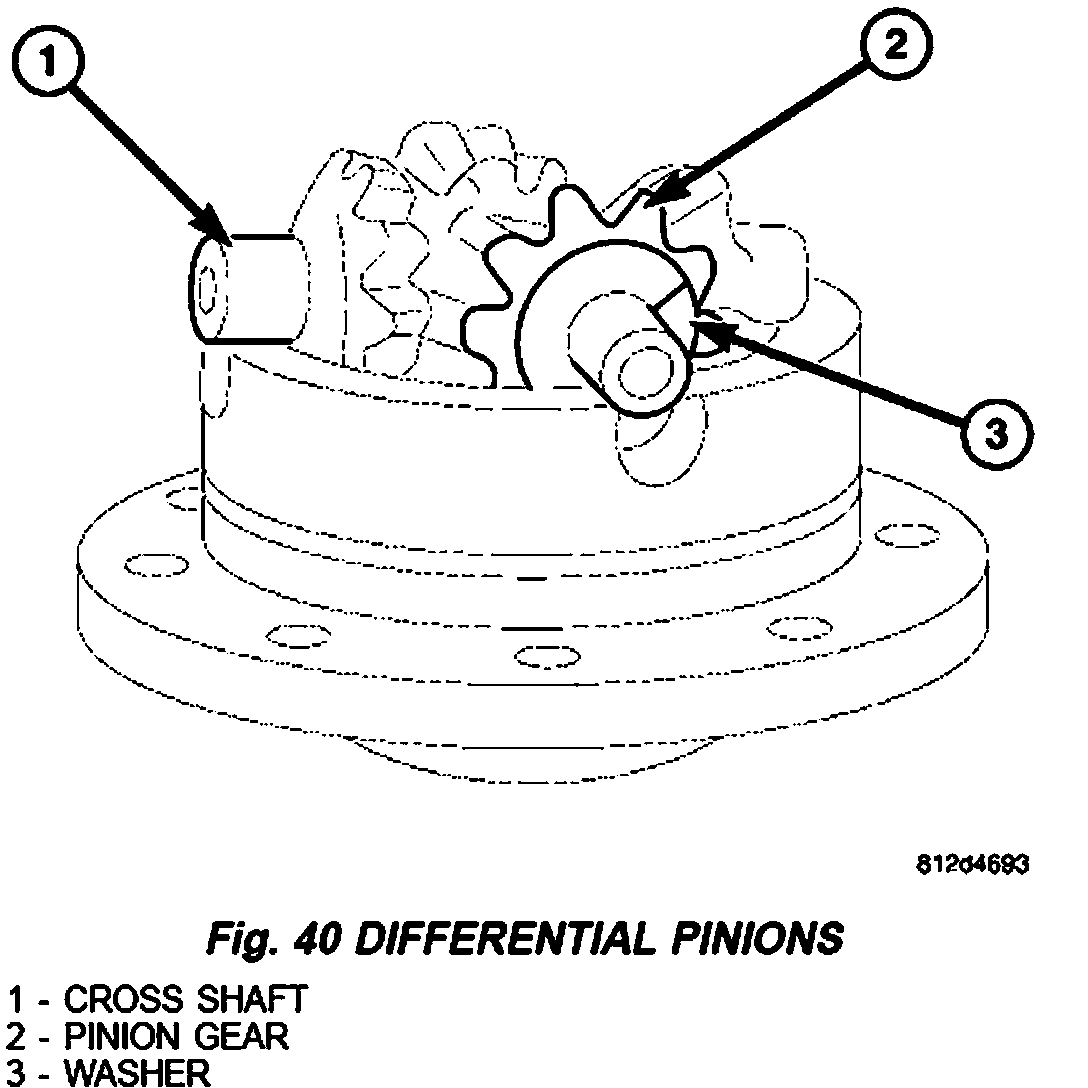

3. Remove differential cross shaft (1) with pinion gears (2) and spherical washers (3) (Fig. 40).

Factory service manual diagram

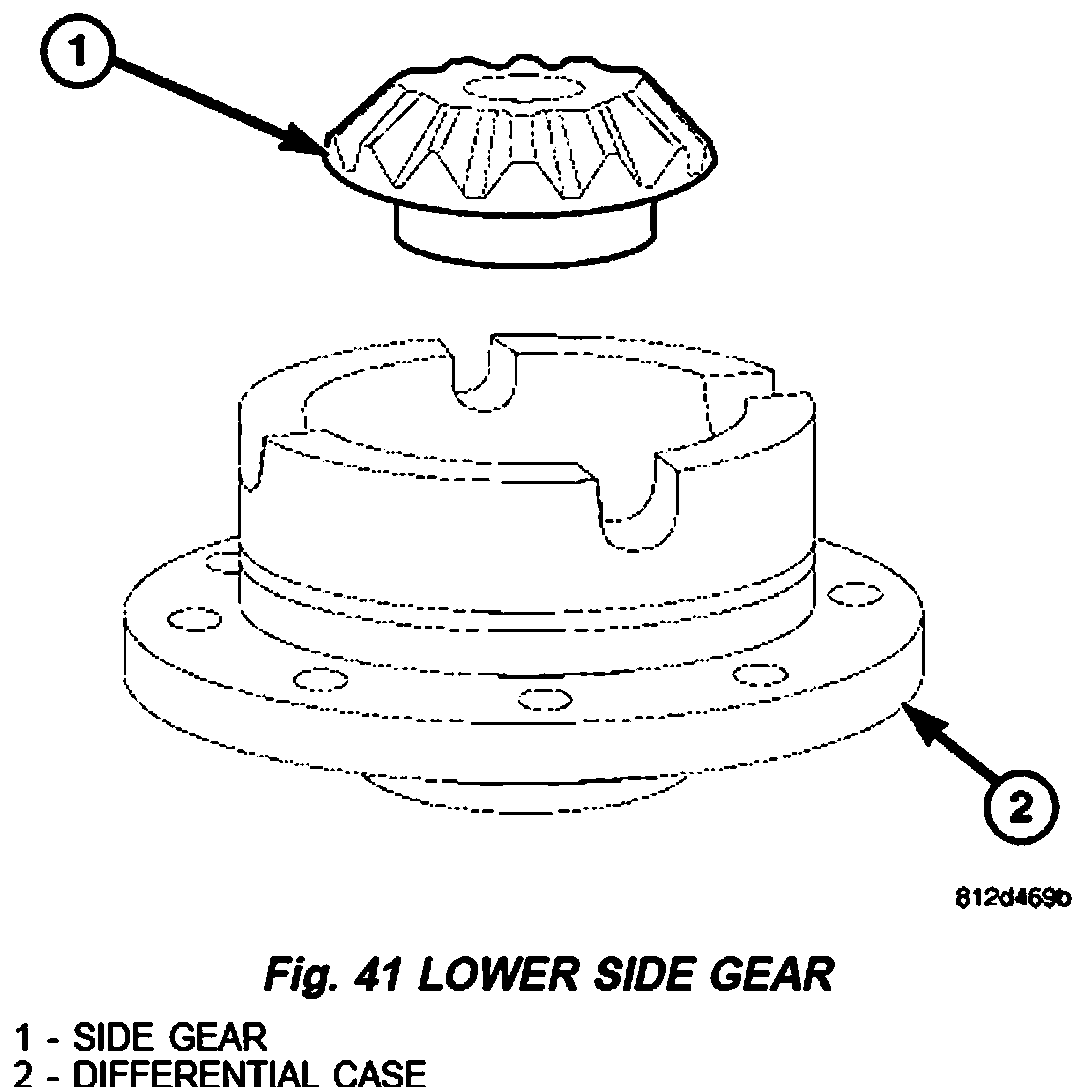

4. Remove lower differential side gear (1) and shim (Fig. 41).

ASSEMBLY

ASSEMBLY - SINGLE REAR WHEEL

Factory service manual diagram

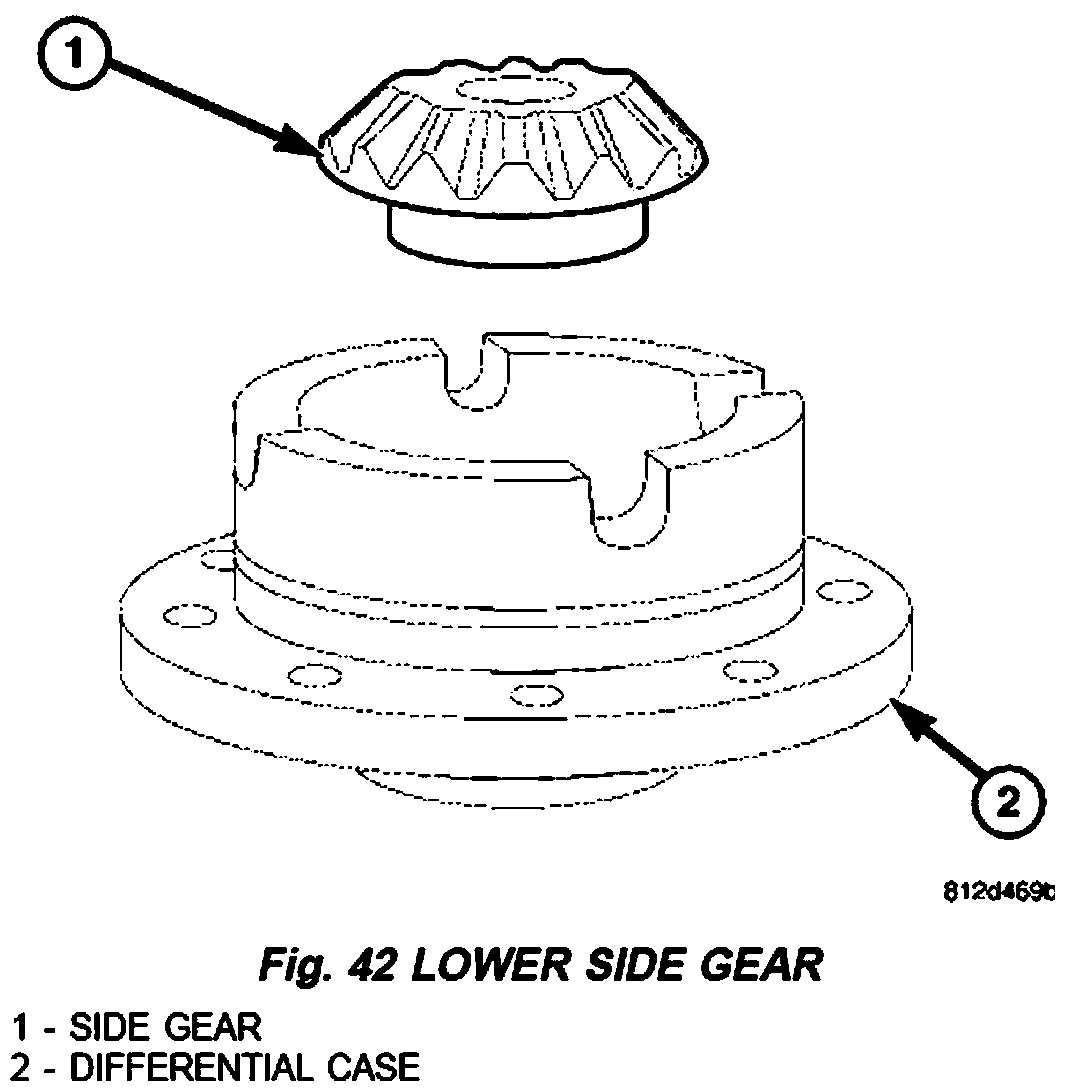

1. Install lower differential side gear (1) and shim (Fig. 42).

Factory service manual diagram

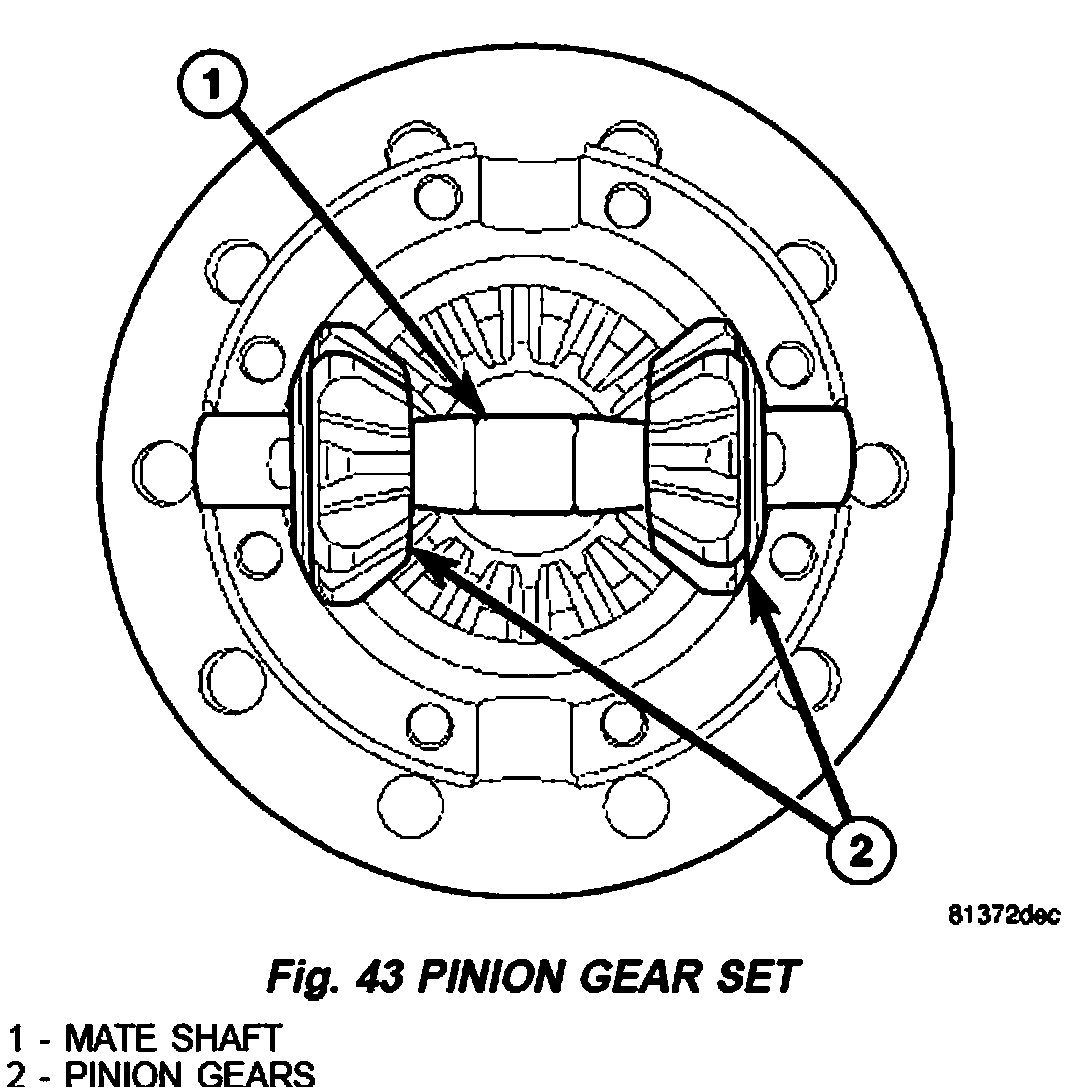

2. Install first differential pinions gears (1) with spherical washers and mate shaft (2) (Fig. 43).

Factory service manual diagram

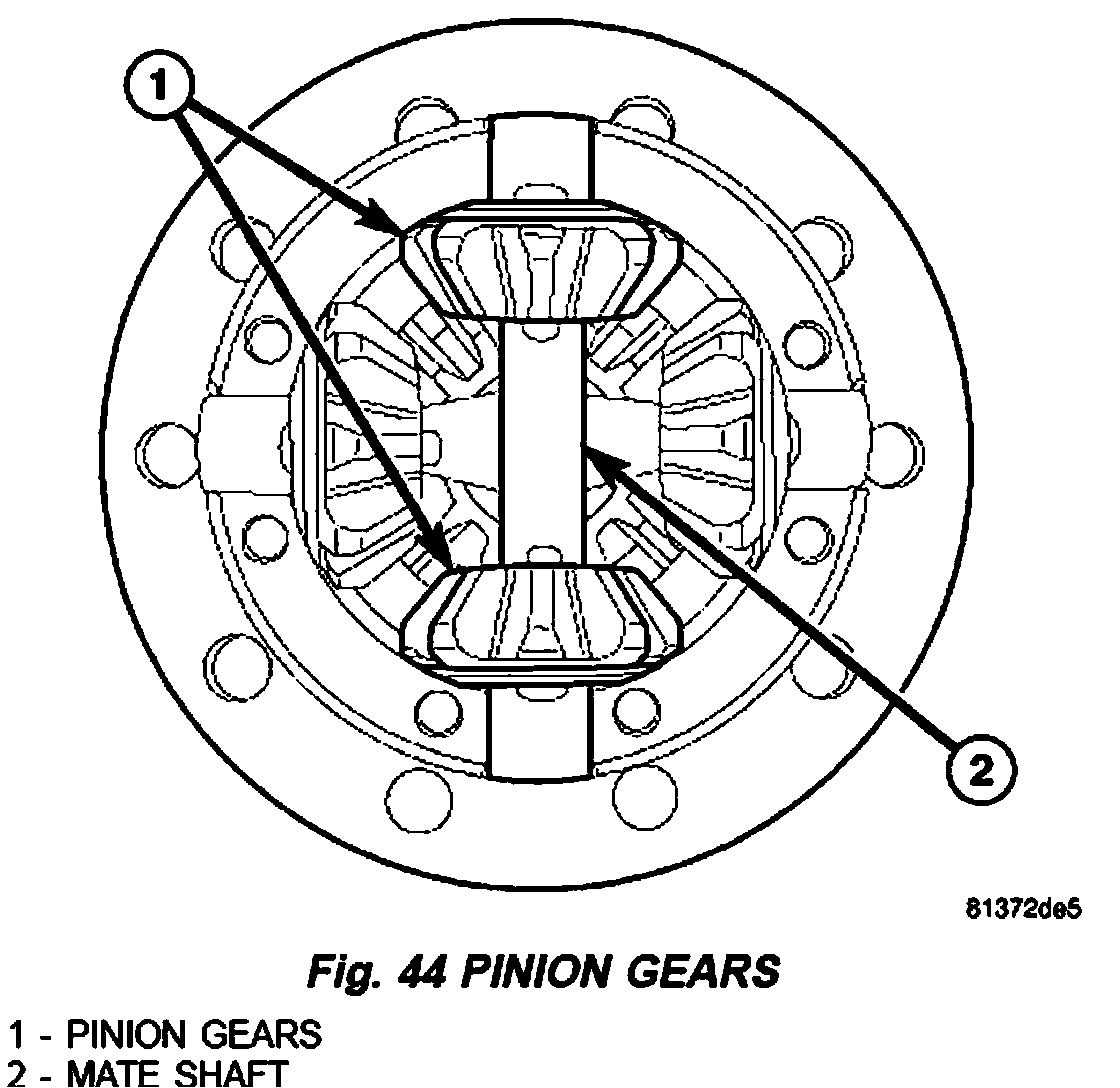

3. Install second pinion gears (2) with spherical washers and mate shaft (1) (Fig. 44).

Factory service manual diagram

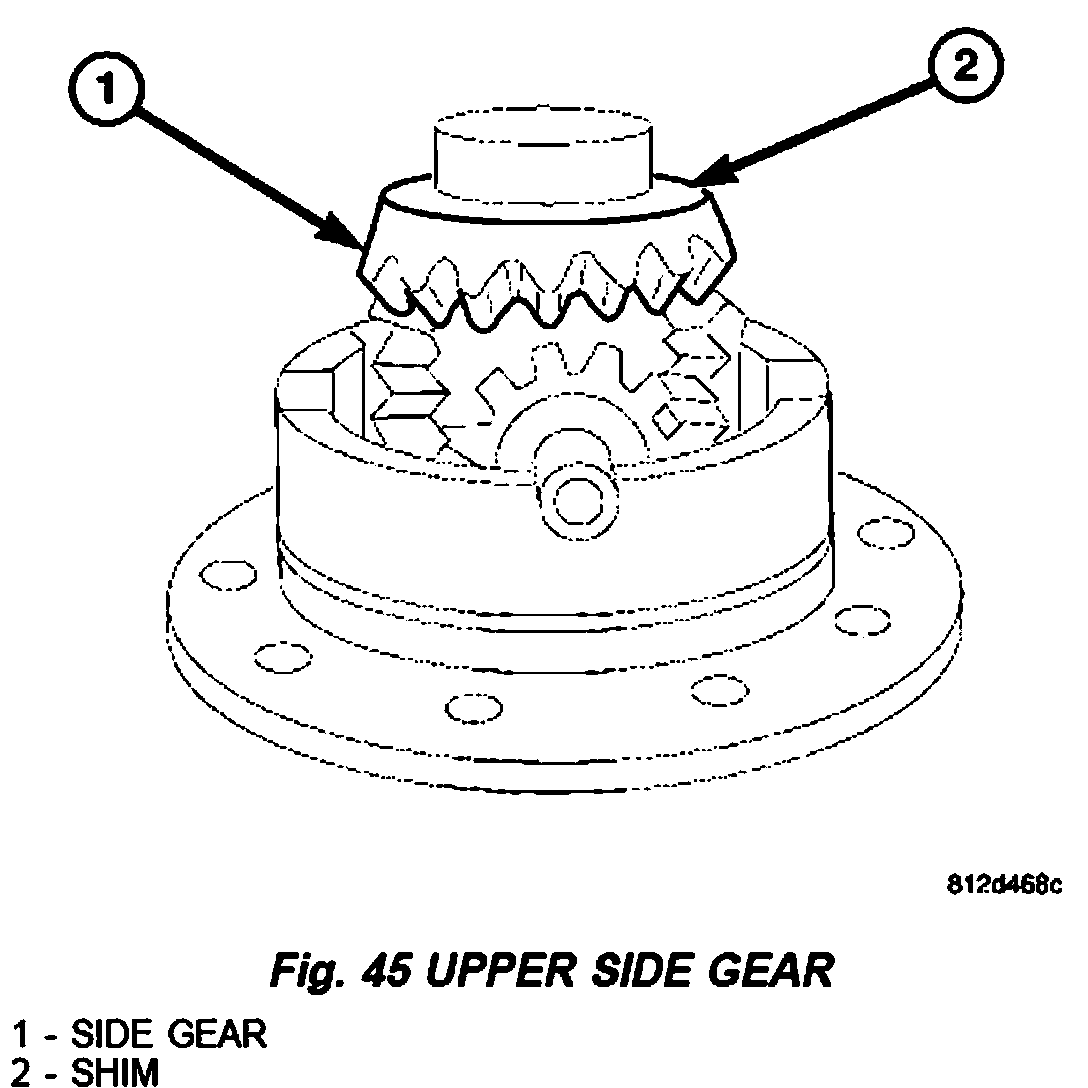

4. Install upper differential side gear (1) and shim (2) (Fig. 45).

Factory service manual diagram

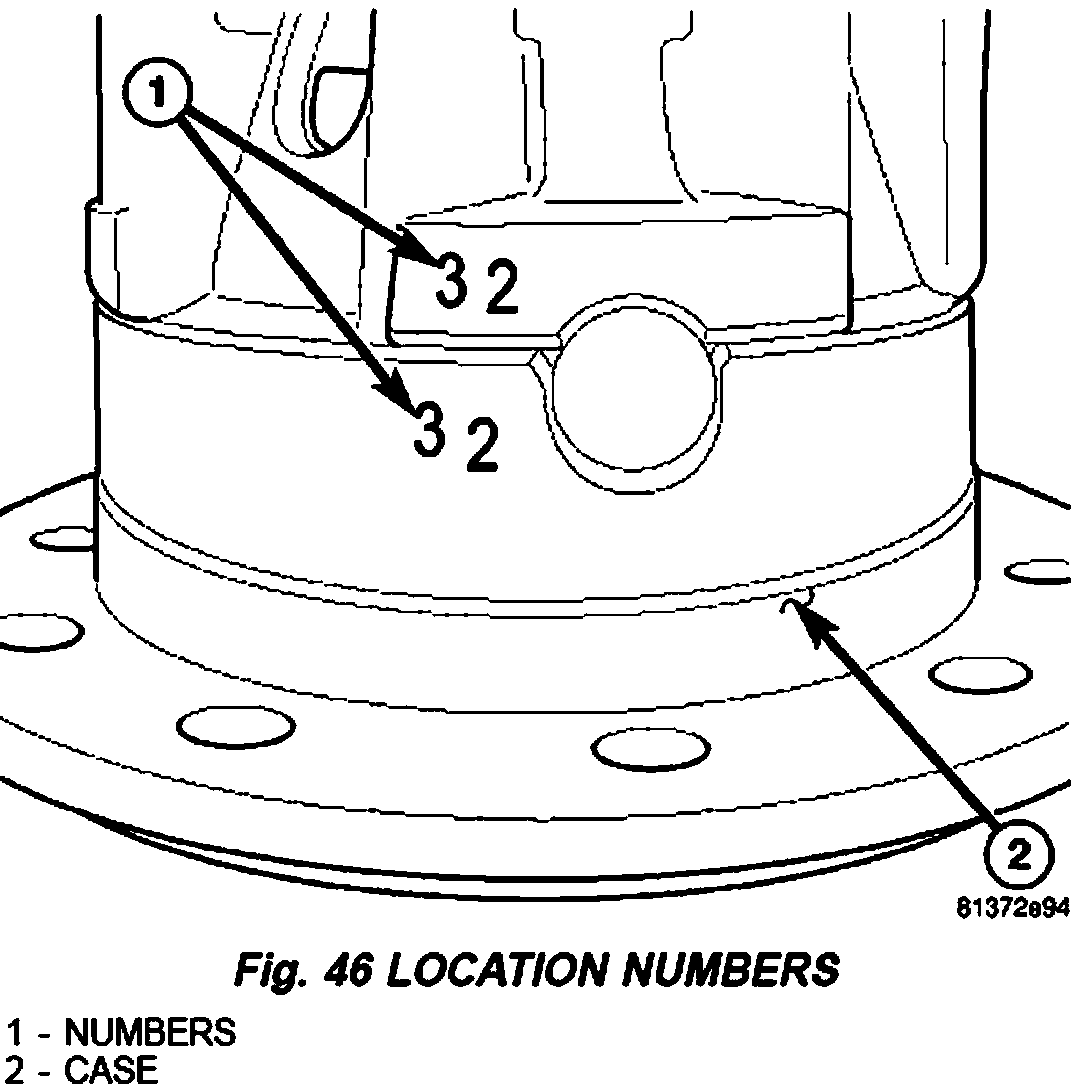

5. Install differential cover with location numbers (1) on differential case (2) aligned (Fig. 46).

Factory service manual diagram

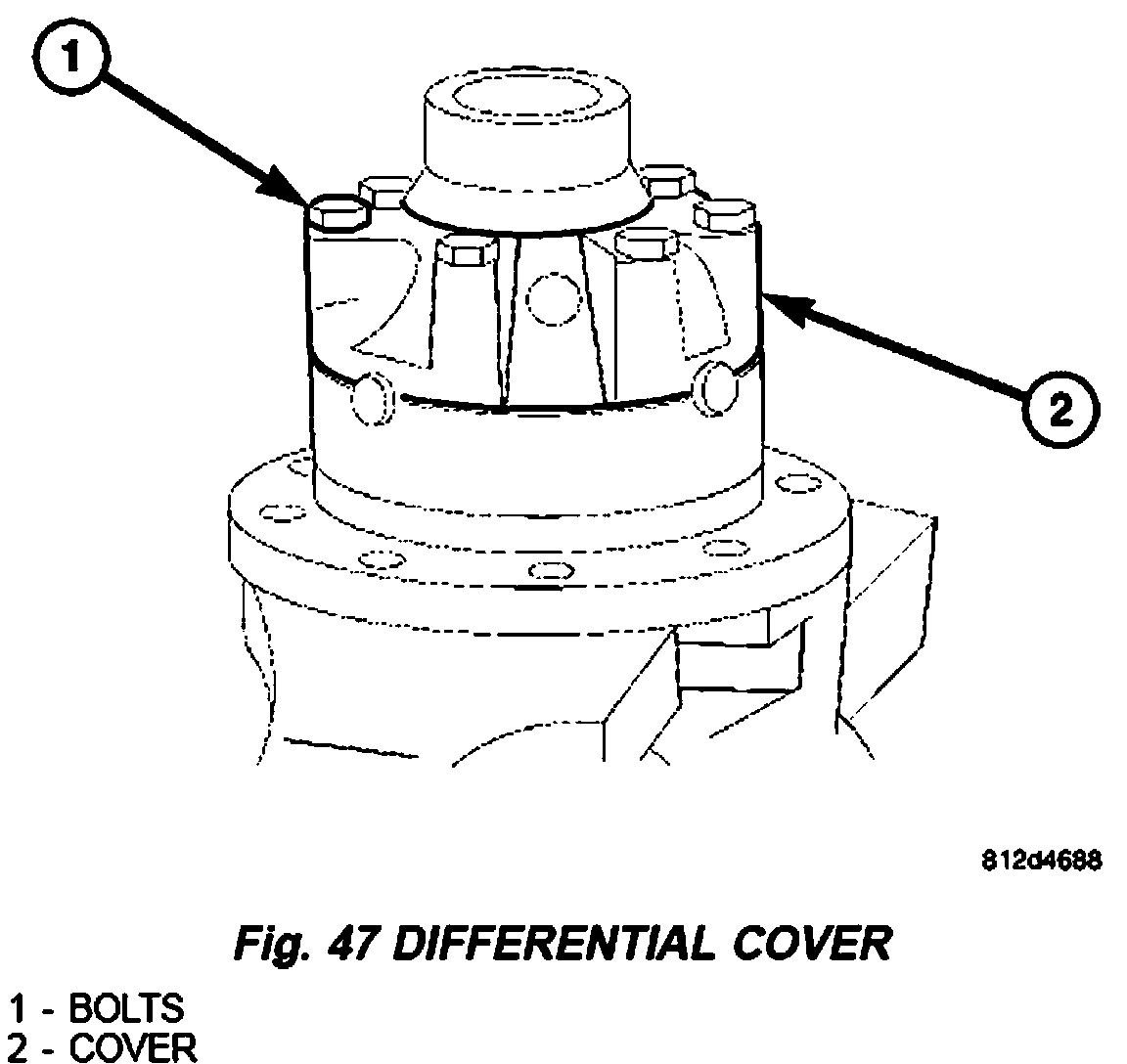

6. Install differential cover (2) bolts (1) and tighten to 45 Nm (33 ft. lbs.) (Fig. 47).
7. Check torque to rotate the differential gears with Torque Tool 9744 and a torque wrench. Torque should be 20-40 Nm (15-30 ft. lbs.).

NOTE: Shims are available in 0.05 mm (0.002 in.) increments, in thicknesses from 1.30 - 2.00 mm (0.051 - 0.078 in.).

ASSEMBLY - DUAL REAR WHEEL

Factory service manual diagram

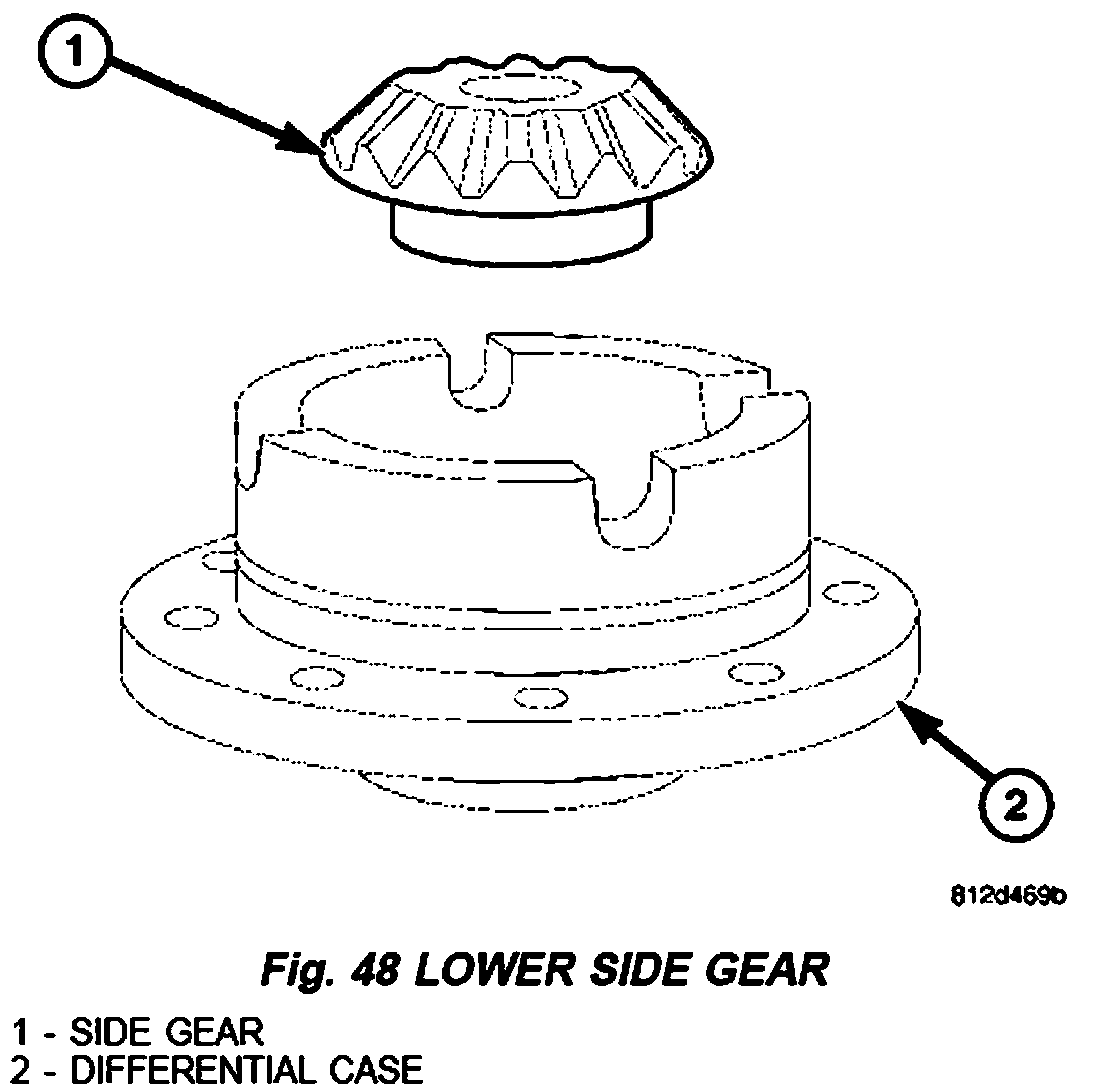

1. Install lower differential side gear (1) and shim (Fig. 48).

Factory service manual diagram

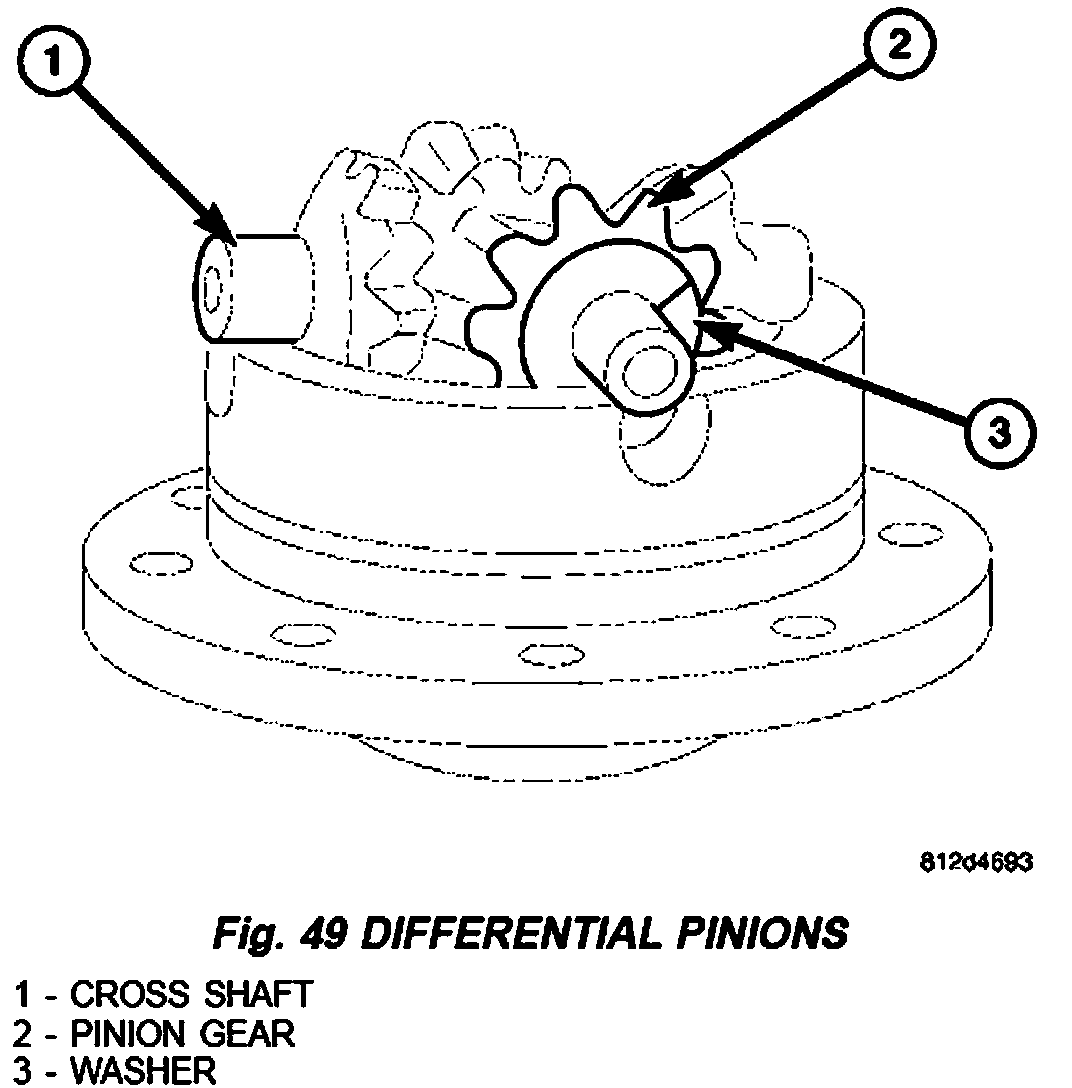

2. Install first differential pinions gears (2) with spherical washers (3) and cross shaft (1) (Fig. 49).

Factory service manual diagram




3. Install upper differential side gear (1) and shim (2) (Fig. 50).

Factory service manual diagram

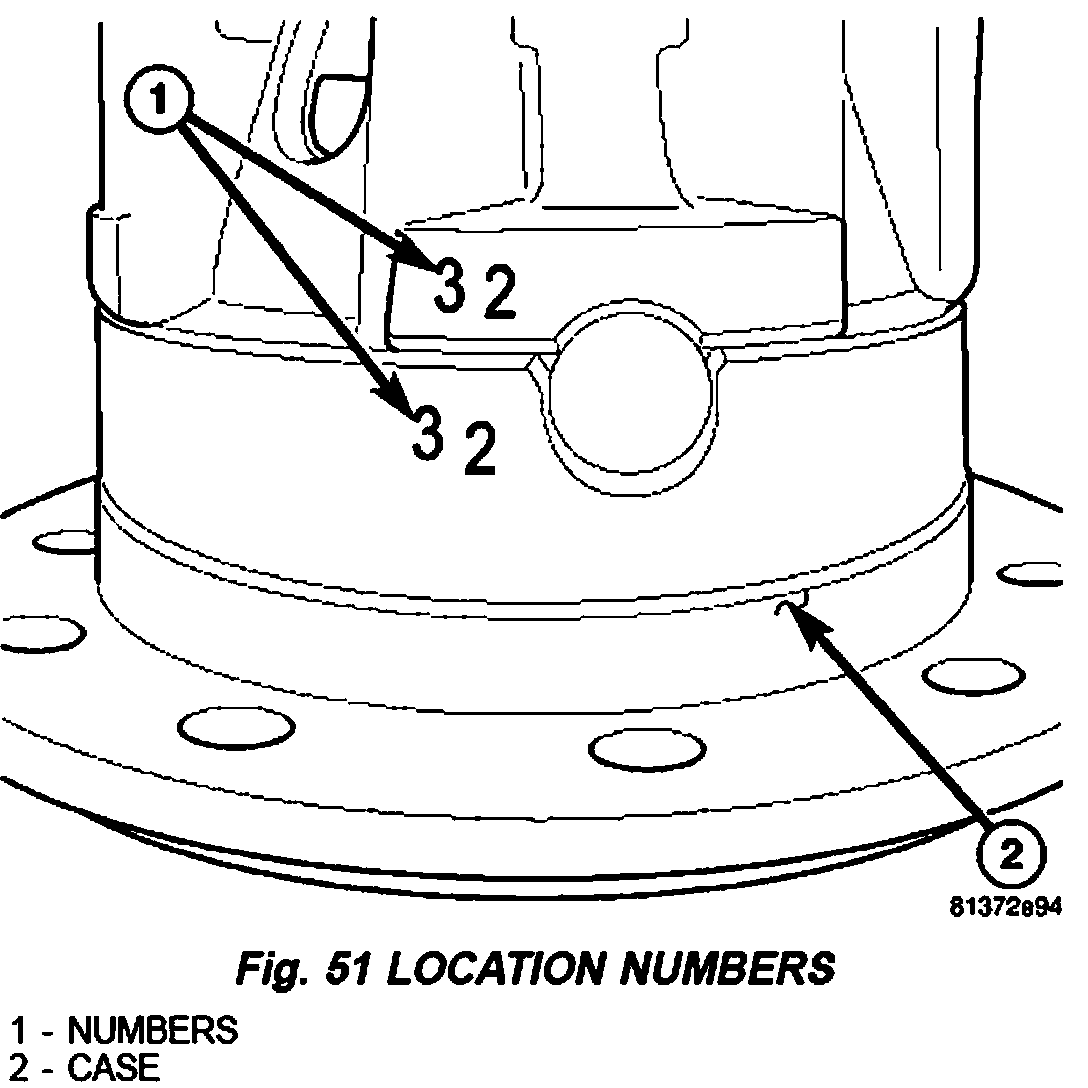

4. Install differential cover with location numbers (1) on differential case (2) aligned (Fig. 51).

Factory service manual diagram

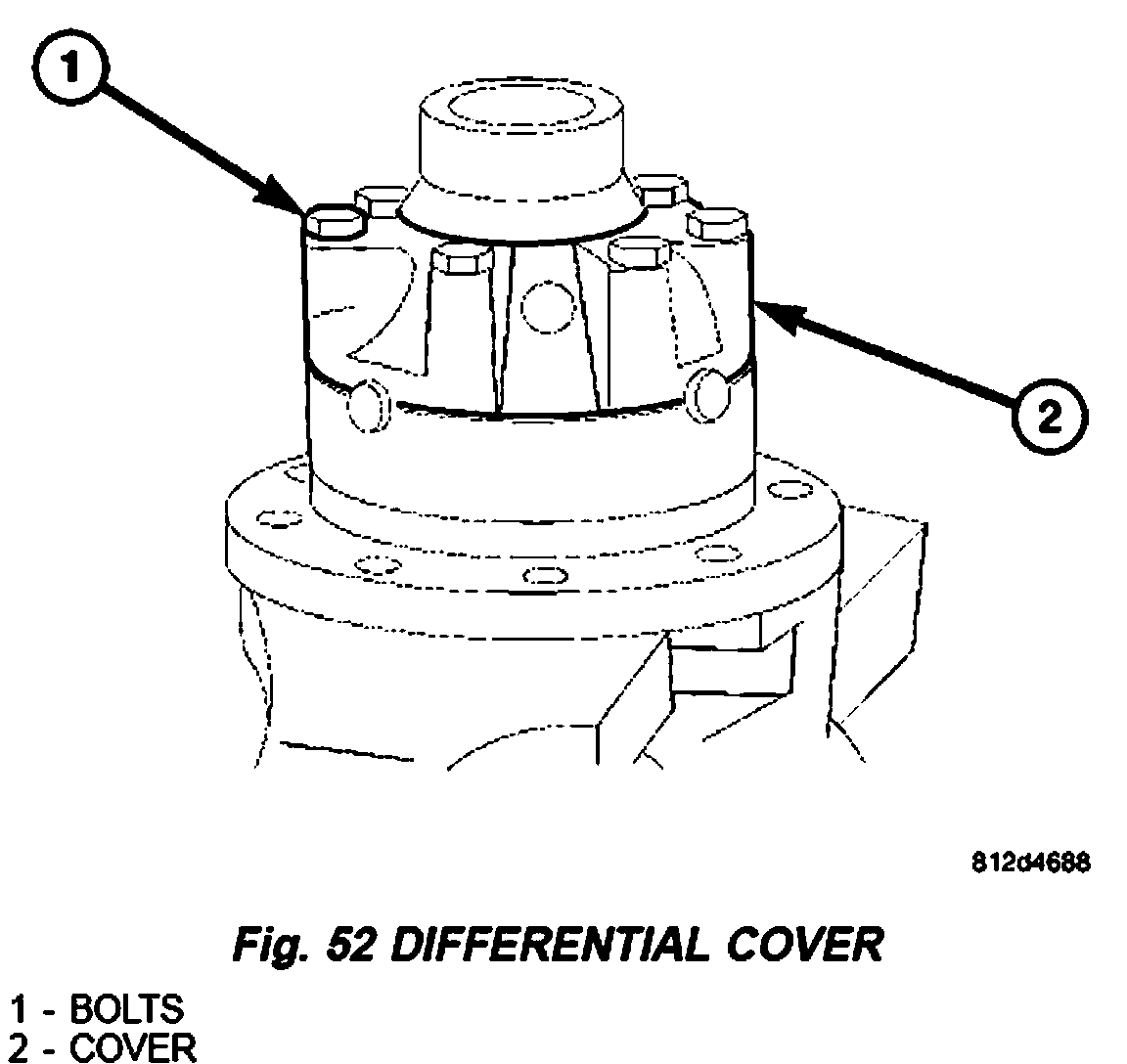

5. Install differential cover (2) bolts (1) and tighen to 45 Nm (33 ft. lbs.) (Fig. 52).
