2006 Dodge and Ram Sprinter 2500 L5-2.7L DSL TurboFACTORY OEM SERVICE PROCEDURE
Body Control Module: Service and Repair
CENTRAL TIMER MODULE
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Slide the driver seat to the full forward position.
3. Disconnect the wire harness connector for the seat belt latch.
4. Remove the screws that secure the closeout panel beneath the driver seat cushion and remove the panel.
5. Remove the screws that secure the central timer module to the bracket.
6. Disconnect the wire harness connectors from the central timer module.
7. Remove the central timer module from the vehicle.
INSTALLATION
1. Position the central timer module in the vehicle
2. Connect the wire harness connectors to the central timer module.
3. Install the screws that secure the central timer module. Tighten the screws securely.
4. Route the seat belt latch wire lead through the hole in the closeout panel and position the panel beneath the driver seat cushion
5. Install the screws that secure the closeout panel beneath the driver seat cushion. Tighten the screws securely.
6. Connect the wire harness connector to the seat belt latch connector.
7. Slide the driver seat to back to its original position.
8. Reconnect the negative battery cable.
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Slide the driver seat to the full forward position.

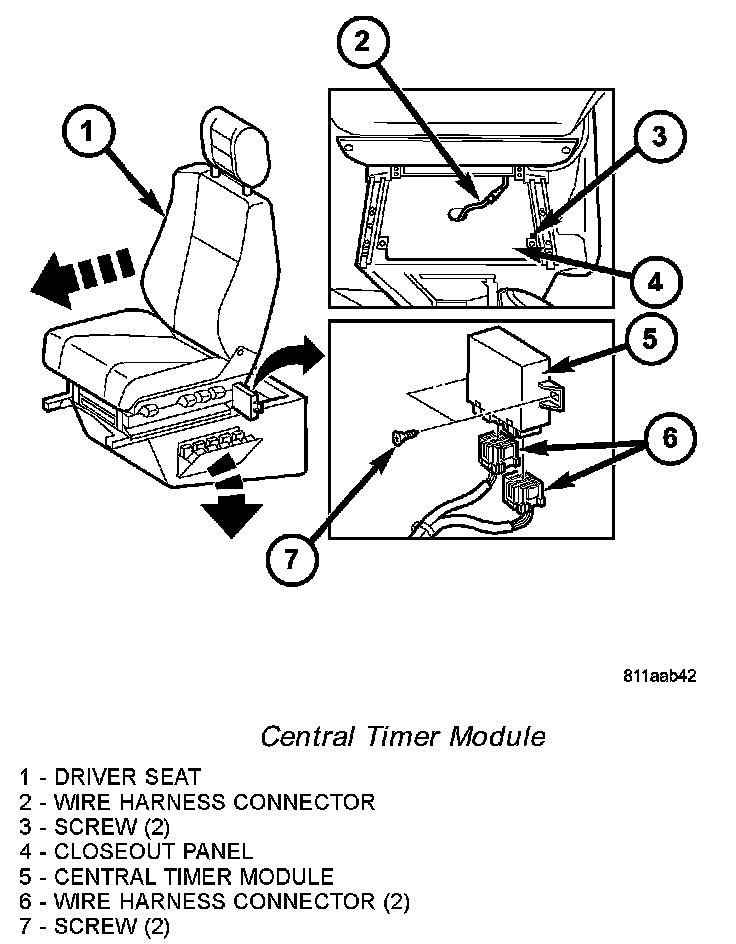

Central Timer Module:
3. Disconnect the wire harness connector for the seat belt latch.
4. Remove the screws that secure the closeout panel beneath the driver seat cushion and remove the panel.
5. Remove the screws that secure the central timer module to the bracket.
6. Disconnect the wire harness connectors from the central timer module.
7. Remove the central timer module from the vehicle.
INSTALLATION
1. Position the central timer module in the vehicle
2. Connect the wire harness connectors to the central timer module.
3. Install the screws that secure the central timer module. Tighten the screws securely.
4. Route the seat belt latch wire lead through the hole in the closeout panel and position the panel beneath the driver seat cushion
5. Install the screws that secure the closeout panel beneath the driver seat cushion. Tighten the screws securely.
6. Connect the wire harness connector to the seat belt latch connector.
7. Slide the driver seat to back to its original position.
8. Reconnect the negative battery cable.
